C78ENTC25.00A003

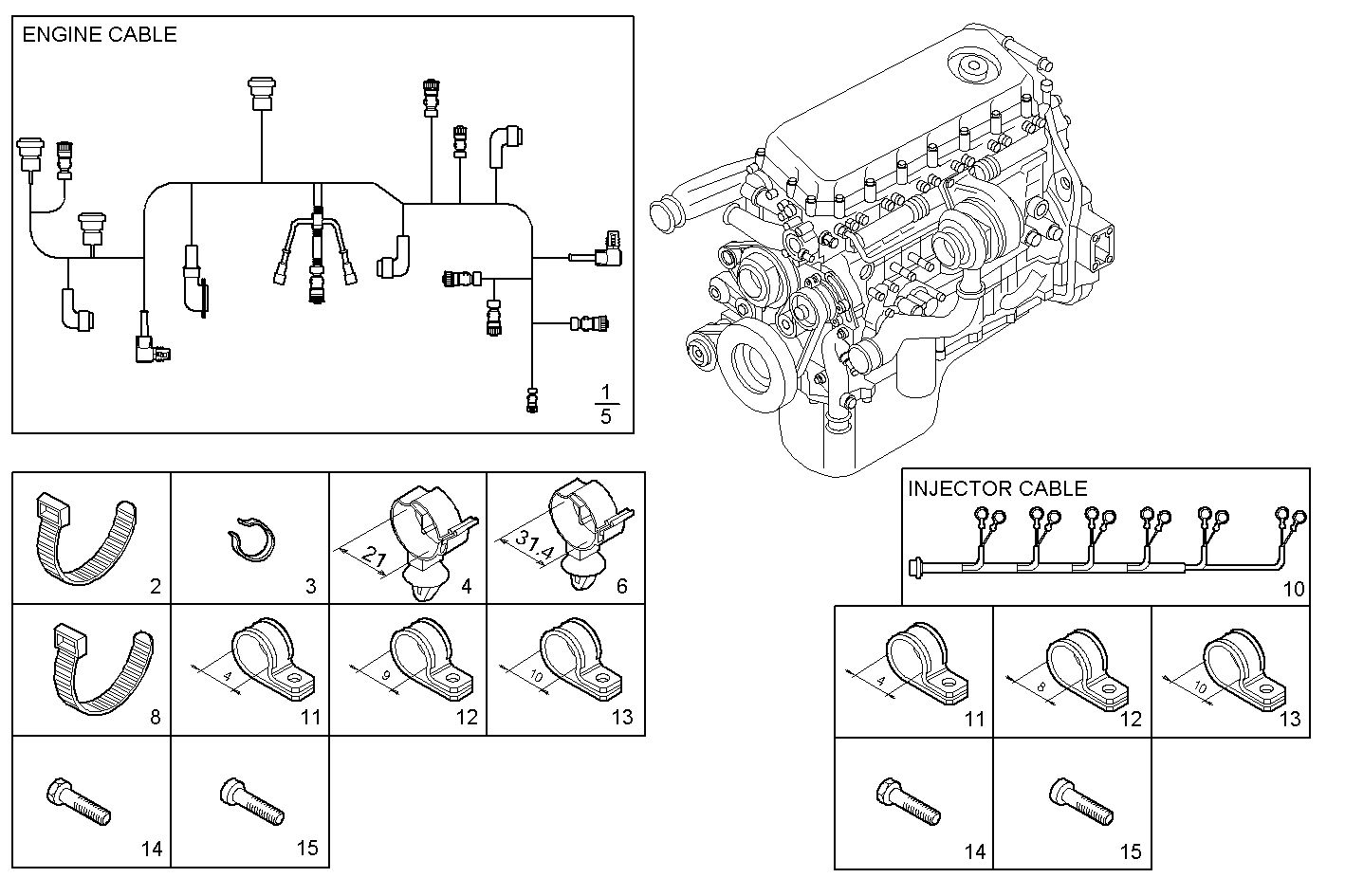

1730.020 ENGINE CABLE
| Item | Part number | Description |
|---|---|---|
| 1 | 504039570 | SET OF WIRING [UP TO # 36455] |
| 2 | 99455033 | CLIP |
| 3 | 500319864 | SPRING CLAMP |
| 4 | 504000061 | CLIP |
| 5 | 504074612 | SET OF WIRING [FROM # 36456] |
| 6 | 504000063 | CLIP |
| 8 | 42099097 | CABLE STRAP |
| 10 | 500336911 | WIRE/CABLE FOR INJECTORS |
| 11 | 17310001 | FASTENING BRACKET Ø4 MM |
| 12 | 17310401 | FASTENING BRACKET Ø8 MM |
| 13 | 17310501 | FASTENING BRACKET Ø10 MM |
| 14 | 11612224 | HEXAGON BOLT M6X12 MM |
| 15 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
