C78ENTC25.00A003

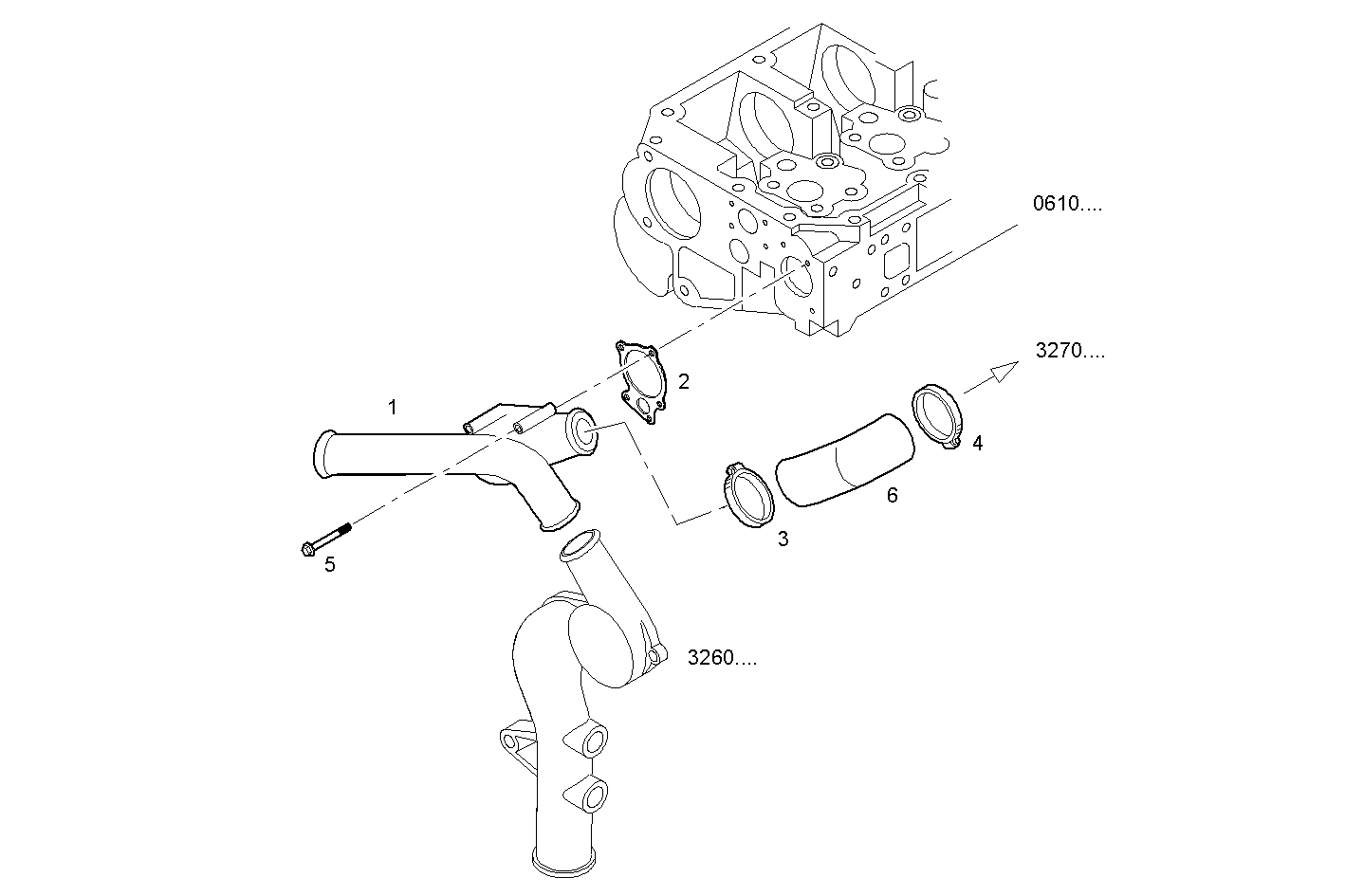

3239.004 HEAD WATER EXIT PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 99478816 | WATER PIPE |
| 2 | 99443426 | FLAT ENGINE GASKET |
| 3 | 17764991 | CLIP Ø50/70 MM |
| 4 | 17765091 | CLIP Ø60/80 MM |
| 5 | 16592525 | HEXAGON BOLT M8X70 MM |
| 6 | 500333973 | WATER HOSE |
