C78ENTC25.00A003

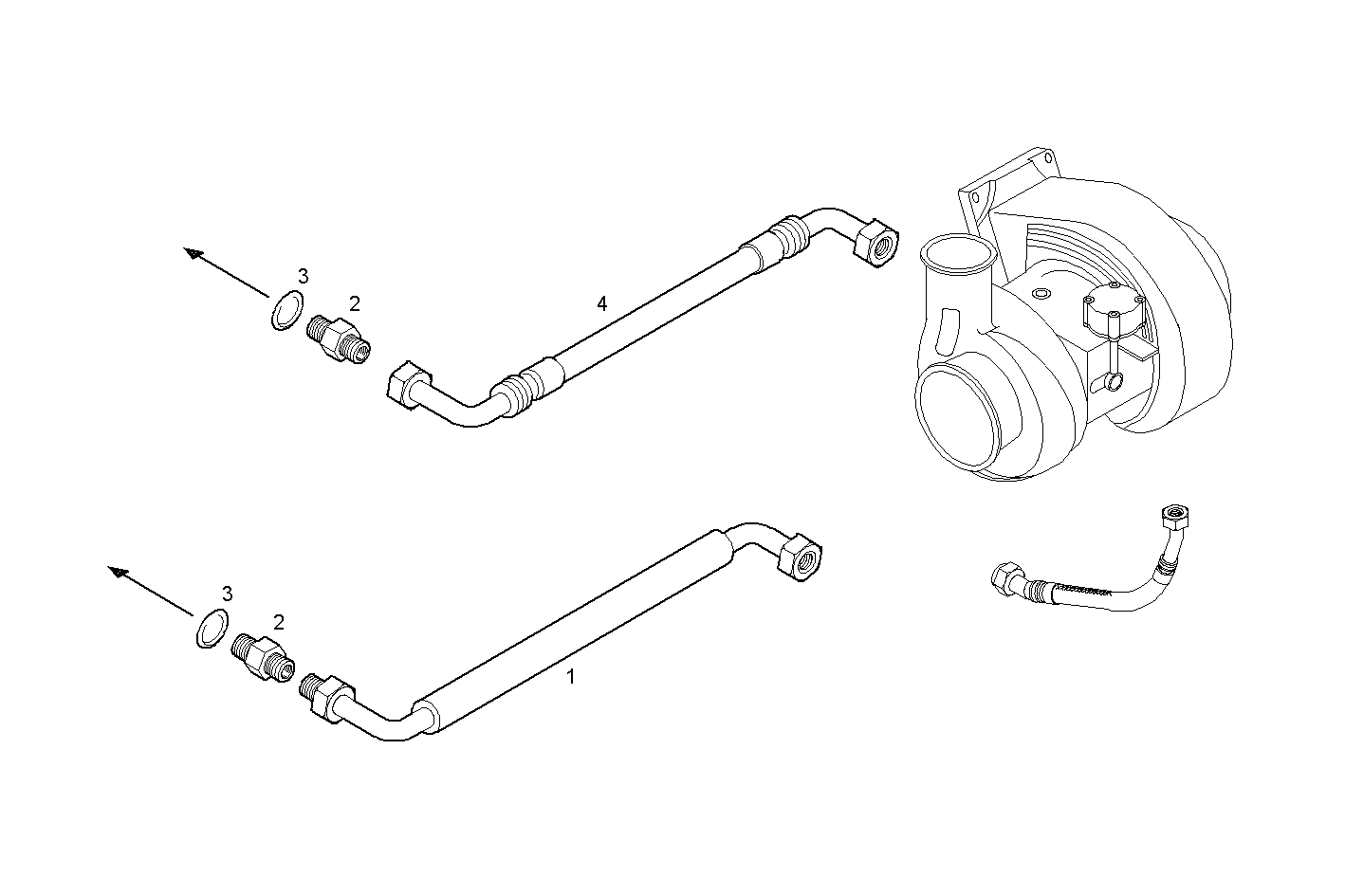

3248.015 TURBO WATER OUTLET PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 500324051 | WATER PIPE [UP TO # 17841] |
| 2 | 16500315 | THREADED UNION M16X1,5 - M18X1,5 |
| 3 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 4 | 504015555 | WATER PIPE [FROM # 17842] |
