C78ENTC25.00A003

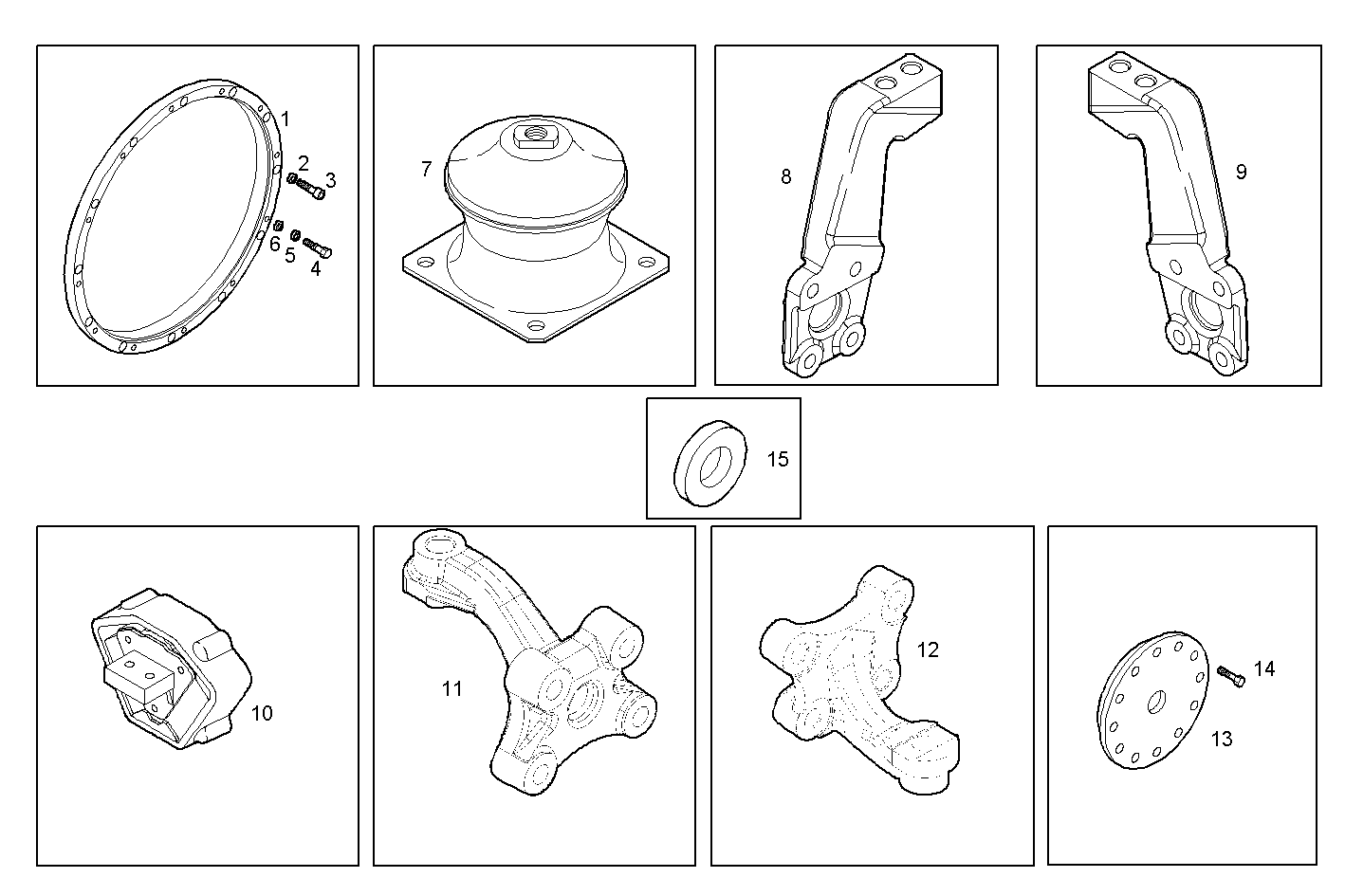

8600.267/01 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 500307030 | SPACING BAR |
| 2 | 16692524 | CYLIND-HEAD SCREW M10X45 MM |
| 3 | 17798374 | SPRING WASHER Ø10,2X18,1 MM |
| 4 | 16607924 | HEXAGON BOLT M10X1,5X40 MM |
| 5 | 17800574 | SPRING WASHER Ø10,5X21 MM |
| 6 | 17097124 | WASHER 10x21 |
| 7 | 504177837 | ENGINE SILENTBLOCK |
| 8 | 504028872 | SUPPORT |
| 9 | 504028871 | SUPPORT |
| 10 | 99435236 | ENGINE SILENTBLOCK |
| 11 | 504028582 | REAR ENG. MOUNT RIGHT |
| 12 | 504028968 | SUPPORT |
| 13 | 98484427 | FLANGE |
| 14 | 17458234 | LOCKING SCREW M12X30 MM |
| 15 | 504032062 | WASHER |
