C78ENTC26.00A004

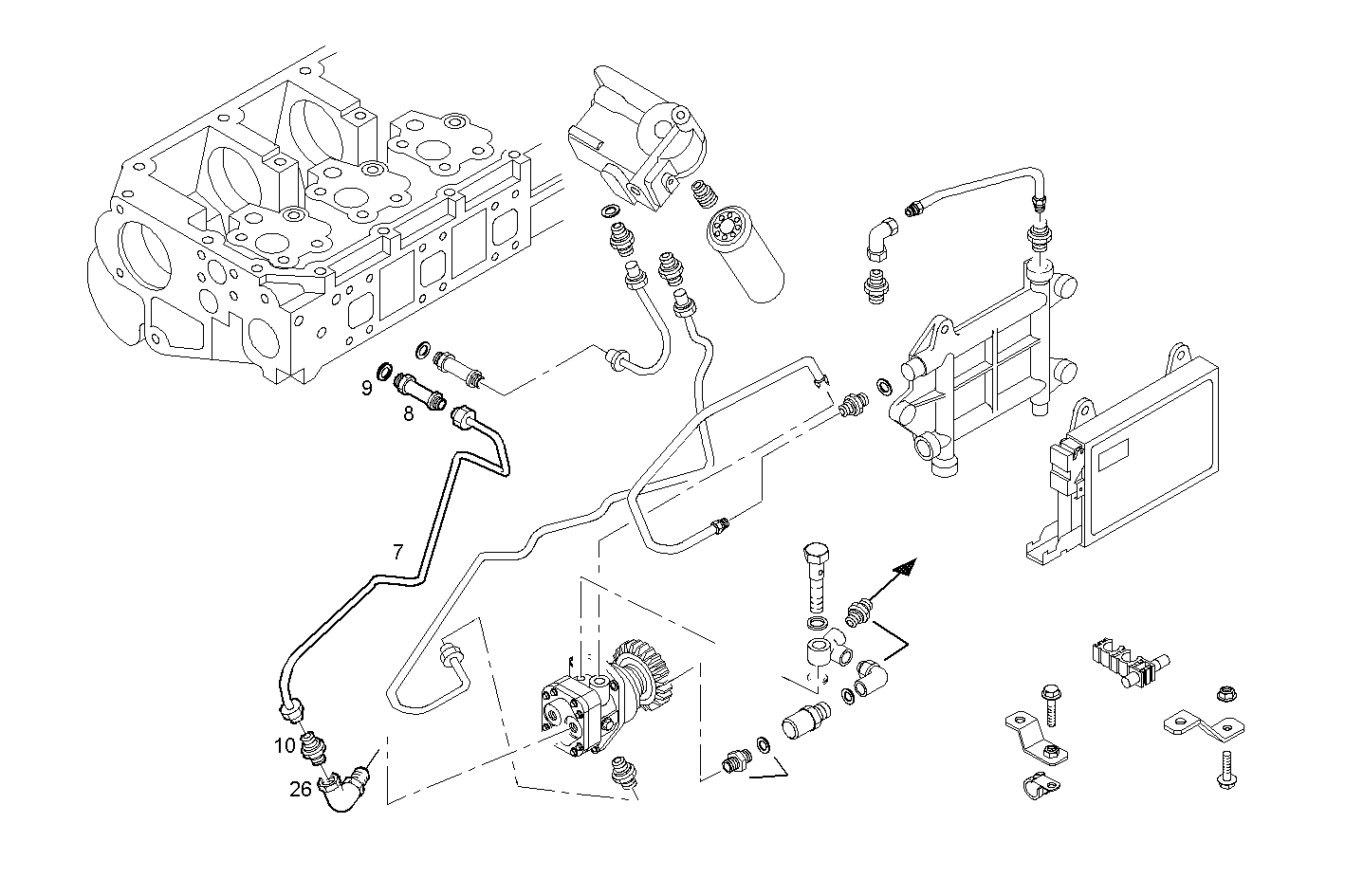

2036.001 FUEL LINES - RETURN TO FUEL PUMP [FROM # 39235] [FROM # 39235]
| Item | Part number | Description |
|---|---|---|
| 7 | 504072855 | FUEL LINE |
| 8 | 99455351 | CONNECTION PIPE M14X1,5 - M18X1,5 |
| 9 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 10 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 26 | 16504114 | ELBOW COUPLING M18X1,5 |
