C78ENTC26.00A004

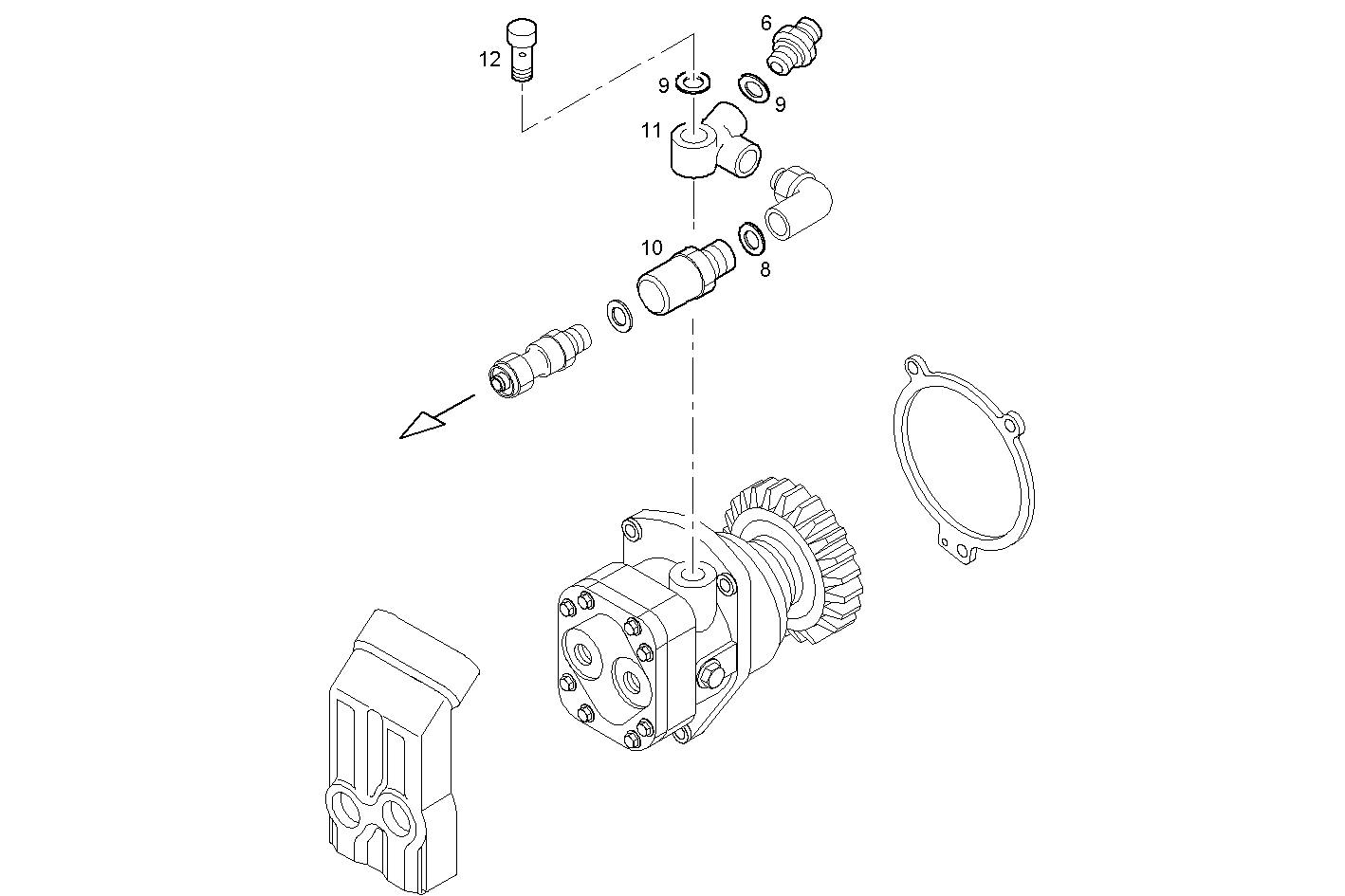

2042.000 EXCESS PRESSURE RELIEF VALVE
| Item | Part number | Description |
|---|---|---|
| 6 | 504081274 | THREADED UNION M16X1,5 - M18X1,5 |
| 8 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
| 9 | 98474309 | WASHER Ø16X24 MM SP=1,9 MM |
| 10 | 500328251 | VALVE 0,2-0,3 BAR |
| 11 | 500348306 | PIPE SOCKET |
| 12 | 504081282 | SCREW CONNECTOR M16X1,5 |
