C78ENTC26.00A004

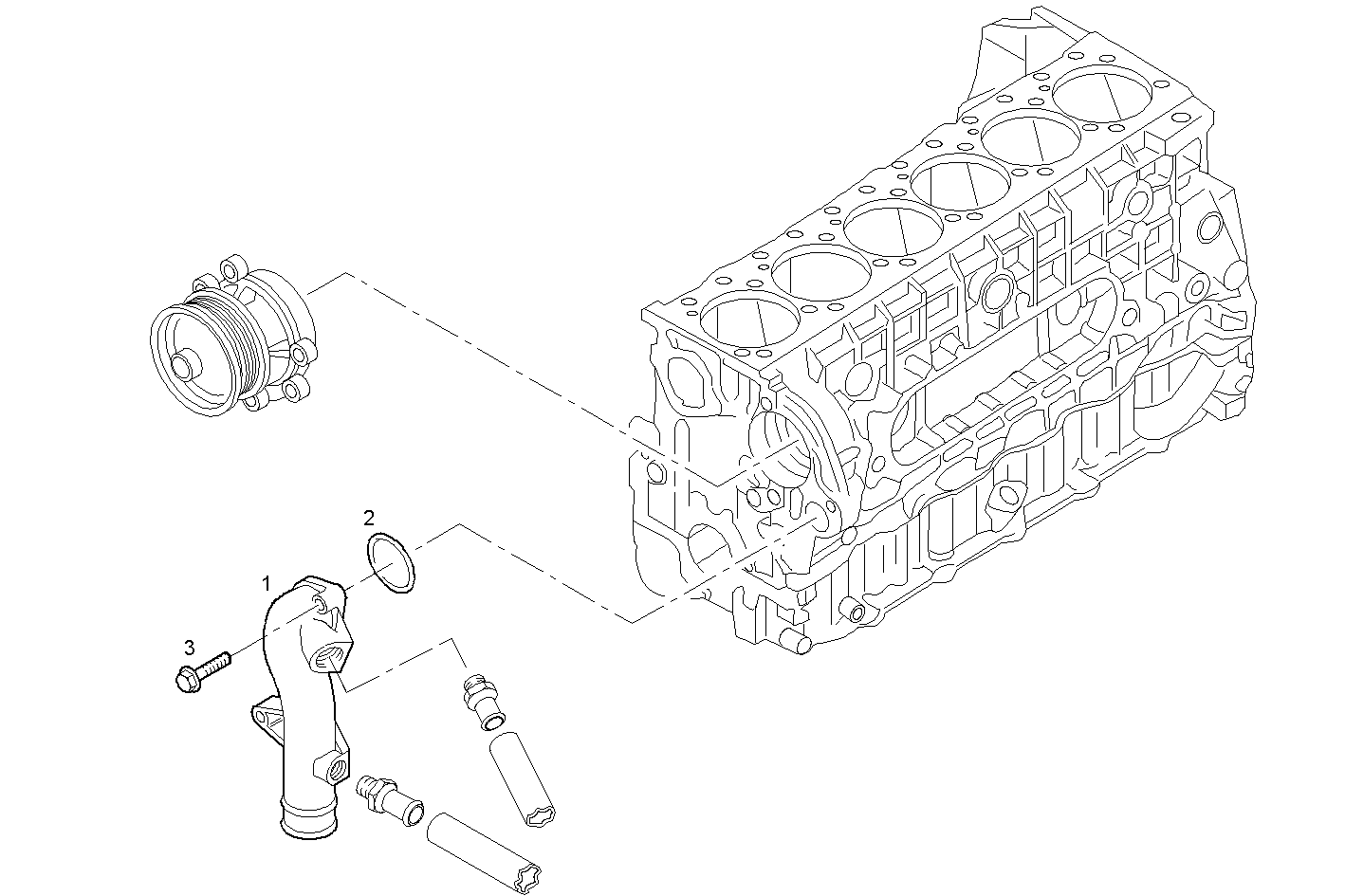

3230.025 WATER PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504069826 | WATER PIPE |
| 2 | 17290081 | O-RING Ø56,74 MM SP=3,53 MM |
| 3 | 16586925 | HEXAGON BOLT M8X50 MM |
| Item | Part number | Description |
|---|---|---|
| 1 | 504069826 | WATER PIPE |
| 2 | 17290081 | O-RING Ø56,74 MM SP=3,53 MM |
| 3 | 16586925 | HEXAGON BOLT M8X50 MM |
