C78ENTC26.00A004

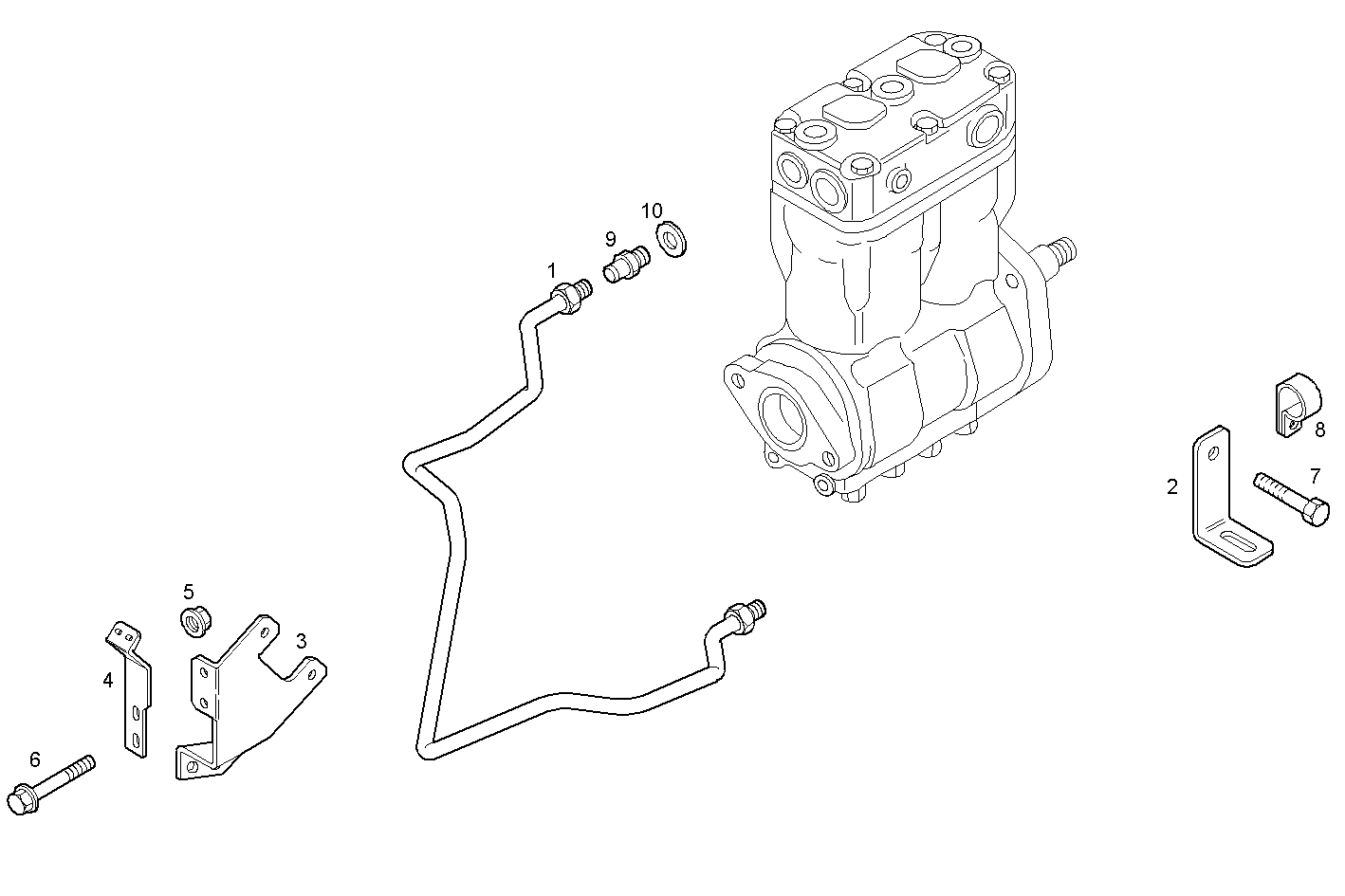

3820.000 COMPRESSOR LINE SYSTEM
| Item | Part number | Description |
|---|---|---|
| 1 | 41212774 | LINE |
| 2 | 41205053 | SUPPORT |
| 3 | 41204234 | BRACKET |
| 4 | 41212705 | SUPPORT |
| 5 | 16750225 | HEXAGON NUT M8 |
| 6 | 16673735 | HEXAGON BOLT M8X25 MM |
| 7 | 16586625 | HEXAGON BOLT M8X35 MM |
| 8 | 41202595 | FASTENING BRACKET |
| 9 | 61599713 | THREADED UNION M26X1,5 |
| 10 | 16508560 | WASHER Ø26X31 MM |
