C78ENTD20.00

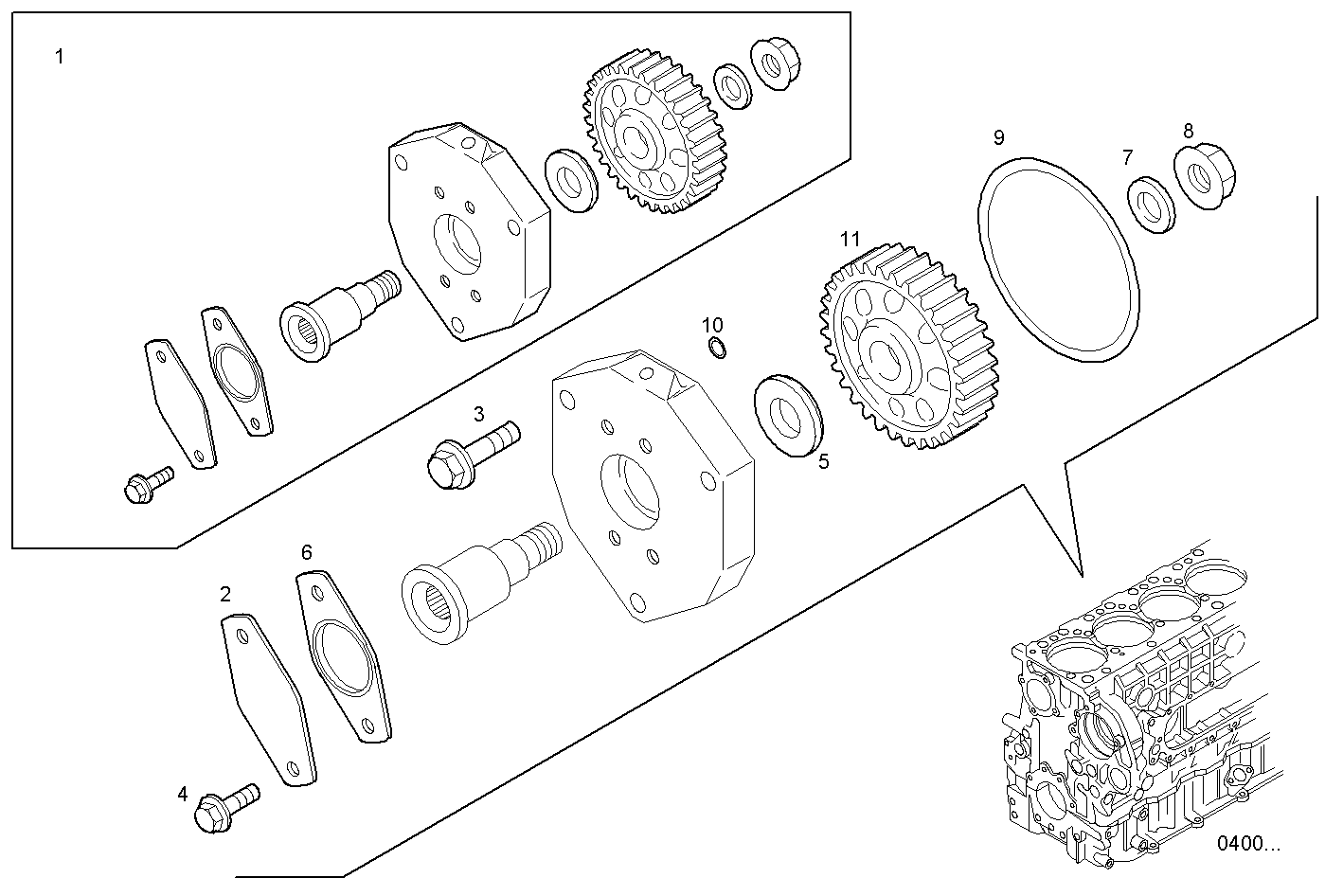

A09280507 ARRANGED FOR HYDRAULIC PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8041573 | POWER TAKE OFF ASSY |
| 2 | 504049033 | COVER |
| 3 | 16690424 | CYLIND-HEAD SCREW M8X1,25X16 MM |
| 4 | 16677735 | HEXAGON BOLT M12X25 MM |
| 5 | 500351319 | WASHER |
| 6 | 4896897 | FLAT ENGINE GASKET |
| 7 | 500382574 | WASHER |
| 8 | 17046231 | NUT M20 |
| 9 | 17292281 | O-RING Ø126,59 MM SP=3,53 MM |
| 10 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
| 11 | 500351009 | GEAR |
