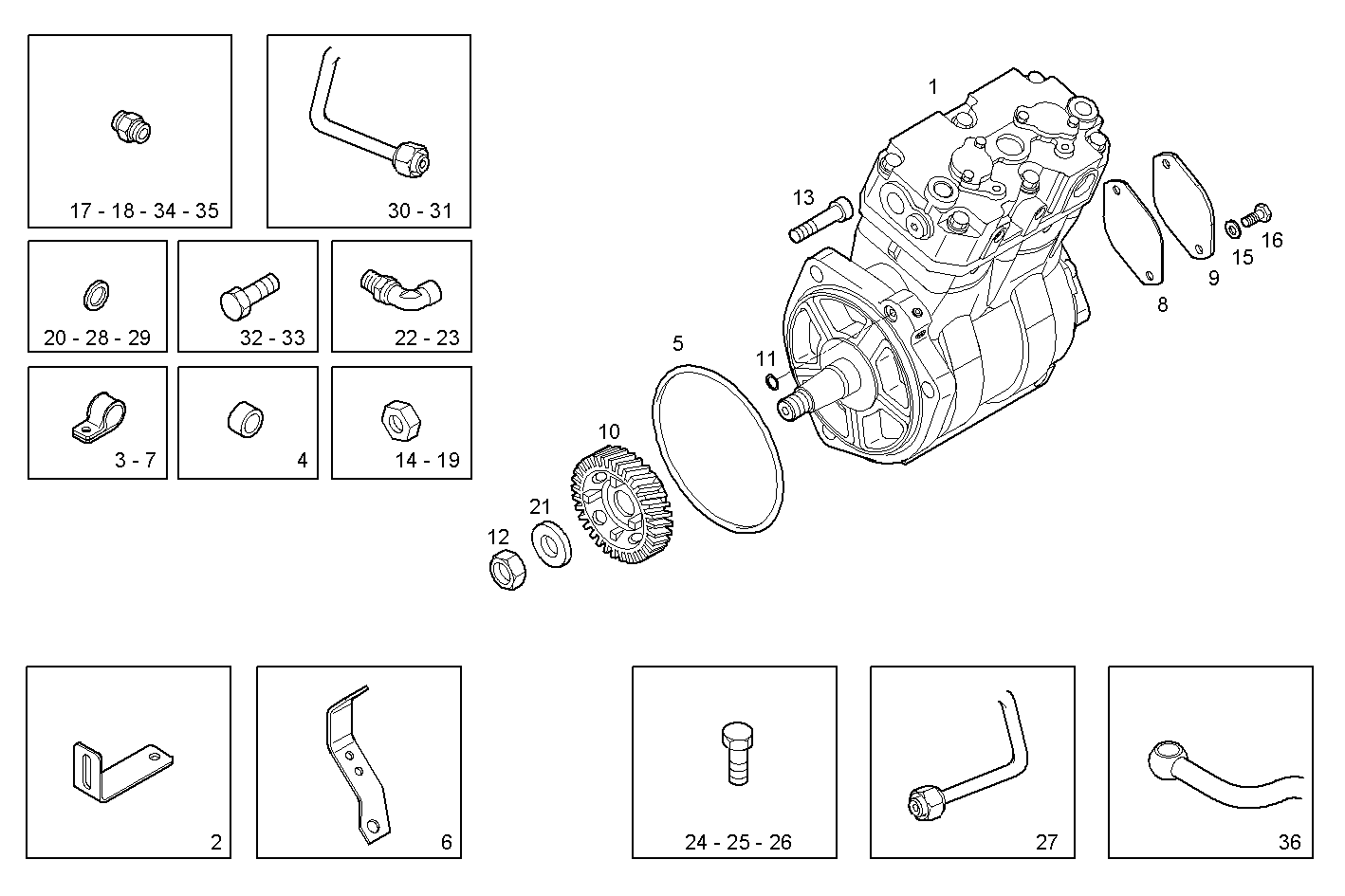

| Item |
Part number |
Description |
|
1 |
41211340 |
AIR COMPRESSOR ASSY |
|
2 |
41205053 |
SUPPORT |
|
3 |
41202595 |
FASTENING BRACKET |
|
4 |
17816414 |
SPACING BAR Ø8,5X18 MM SP=20 MM |
|
5 |
17292281 |
O-RING Ø126,59 MM SP=3,53 MM |
|
6 |
41213776 |
RETAINER |
|
7 |
41231090 |
RETAINER |
|
8 |
8025370 |
FLAT ENGINE GASKET |
|
9 |
8025369 |
PTO COVER |
|
10 |
99435001 |
GEAR |
|
11 |
17281381 |
O-RING Ø9,19 MM [FROM TO # 62977] |
|
12 |
99471892 |
HEXAGON NUT |
|
13 |
16693924 |
CYLIND-HEAD SCREW M12X35MM |
|
14 |
99456380 |
ELBOW COUPLING M26X1,5 - M36X2 |
|
15 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
16 |
16691924 |
CYLIND-HEAD SCREW |
|
17 |
99476542 |
THREADED UNION M12X1,5 |
|
18 |
42087093 |
PIPE SOCKET M12X1,5 |
|
19 |
98427977 |
ELBOW COUPLING M12X1,5 |
|
20 |
16508060 |
SEAL GASKET Ø12X15,5 MM |
|
21 |
17095914 |
WASHER |
|
22 |
17038221 |
HEXAGON NUT M10 |
|
23 |
16750225 |
HEXAGON NUT M8 |
|
24 |
16673735 |
HEXAGON BOLT M8X25 MM |
|
25 |
16586625 |
HEXAGON BOLT M8X35 MM |
|
26 |
16585625 |
HEXAGON BOLT M6X12 |
|
27 |
99473920 |
WATER PIPE |
|
28 |
98474311 |
SEAL GASKET Ø18X26 MM |
|
29 |
98474309 |
WASHER Ø16X24 MM SP=1,9 MM |
|
30 |
41213025 |
PIPE |
|
31 |
504130720 |
WATER PIPE |
|
32 |
504081282 |
SCREW CONNECTOR M16X1,5 |
|
33 |
504081280 |
BANJO BOLT M18X1,5 |
|
34 |
504081277 |
THREADED UNION M18X1.5 |
|
35 |
504081274 |
THREADED UNION M16X1,5 - M18X1,5 |
|
36 |
500313369 |
WATER PIPE |
