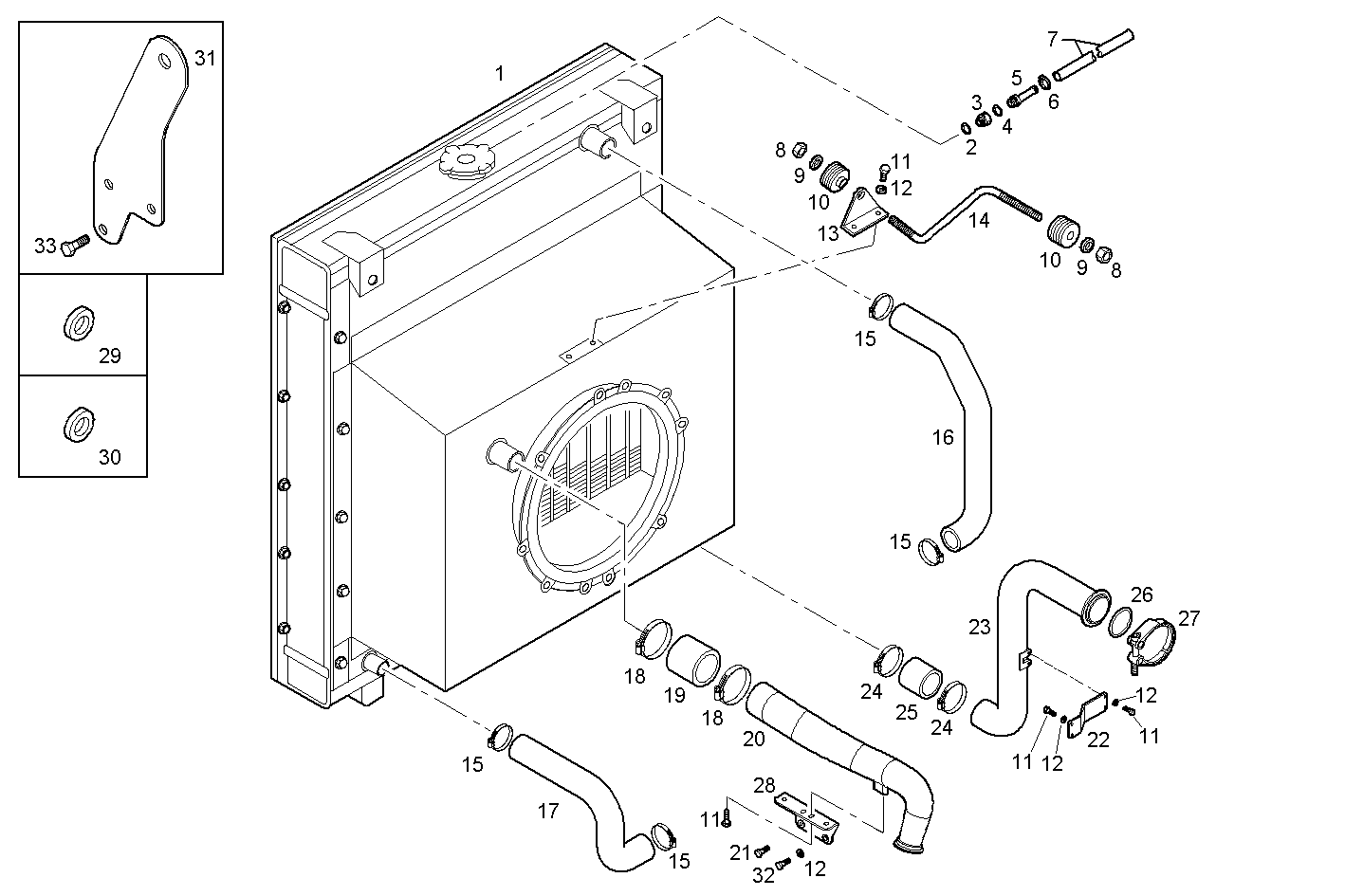

| Item |
Part number |
Description |
|
1 |
8036038 |
WATER RADIATOR ASSY |
|
2 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
3 |
4935727 |
PIPE SOCKET |
|
4 |
10284460 |
SEAL GASKET Ø10X16 MM |
|
5 |
4935134 |
OIL LINE |
|
6 |
18087993 |
CLIP Ø8/16 MM |
|
7 |
8034635 |
BREATHER PIPE |
|
8 |
17038425 |
HEXAGON NUT M12 (8) |
|
9 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
10 |
741569 |
RUBBER LUG |
|
11 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
12 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
13 |
8019397 |
RETAINER |
|
14 |
8043473 |
TIE ROD |
|
15 |
17765091 |
CLIP Ø60/80 MM |
|
16 |
8036520 |
RUBBER SLEEVE |
|
17 |
8036521 |
RUBBER SLEEVE |
|
18 |
4788410 |
CLIP Ø92/98 MM |
|
19 |
8030531 |
TURBOCHARGER HOSE |
|
20 |
8042886 |
AIR PIPE/DUCT |
|
21 |
16605724 |
SCREW M8X1,25X30 |
|
22 |
8037139 |
FASTENING BRACKET |
|
23 |
8036454 |
AIR PIPE/DUCT |
|
24 |
17764991 |
CLIP Ø50/70 MM |
|
25 |
42088621 |
RUBBER SLEEVE L=160 [UP TO 02-99] |
|
26 |
17291281 |
O-RING Ø94,84 MM SP=3,53 MM |
|
27 |
99435103 |
CLIP |
|
28 |
8043188 |
RETAINER |
|
29 |
741570 |
WASHER Ø10X17 MM SP=2,3 |
|
30 |
741571 |
SPACING BAR Ø10X17 MM SP=2,3 |
|
31 |
8043097 |
PLATE |
|
32 |
16607724 |
HEXAGON BOLT M10X1,5X30 MM (8.8) |
|
33 |
16673635 |
HEXAGON BOLT M8X1.25X20 |
