C78ENTD20.20

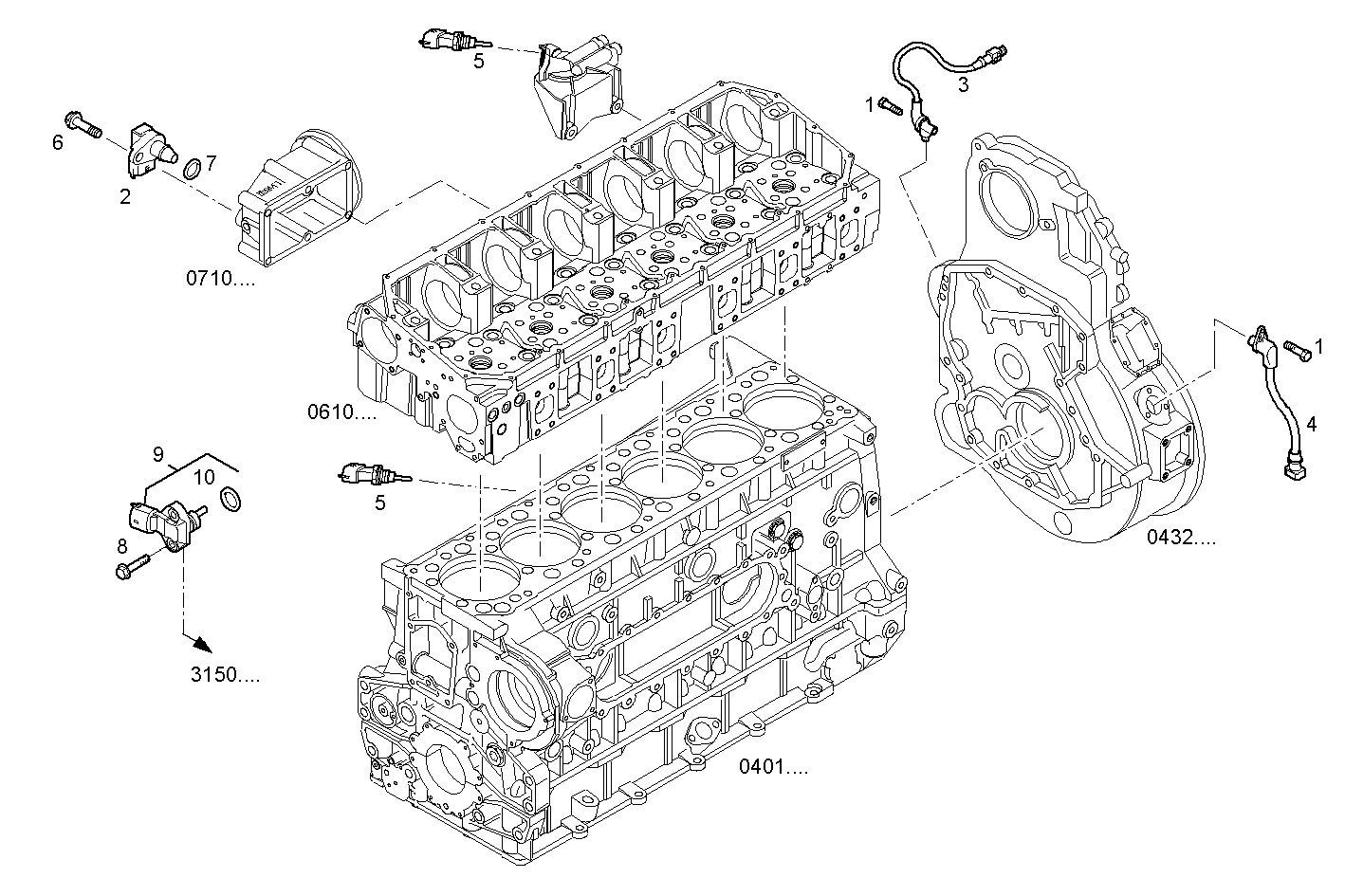

1710.043 SENSORS
| Item | Part number | Description |
|---|---|---|
| 1 | 16689024 | CYLIND-HEAD SCREW M6X12 |
| 2 | 504073323 | SENSOR AIR PRESS. & TEMPER. [FROM # 158928] |
| 3 | 99450797 | SENSOR camshaft. |
| 4 | 504005575 | SENSOR crankshaft. |
| 5 | 500382599 | TEMP. TRANSMITTER PRESS. & TEMPER. |
| 6 | 16597225 | HEXAGON BOLT M6X18 MM |
| 7 | 42546555 | O-RING [FROM # 158928] |
| 8 | 4899110 | HEXAGON BOLT |
| 9 | 4890193 | SENSOR OIL PRESS. & TEMPER. |
| 10 | 4895477 | O-RING |
