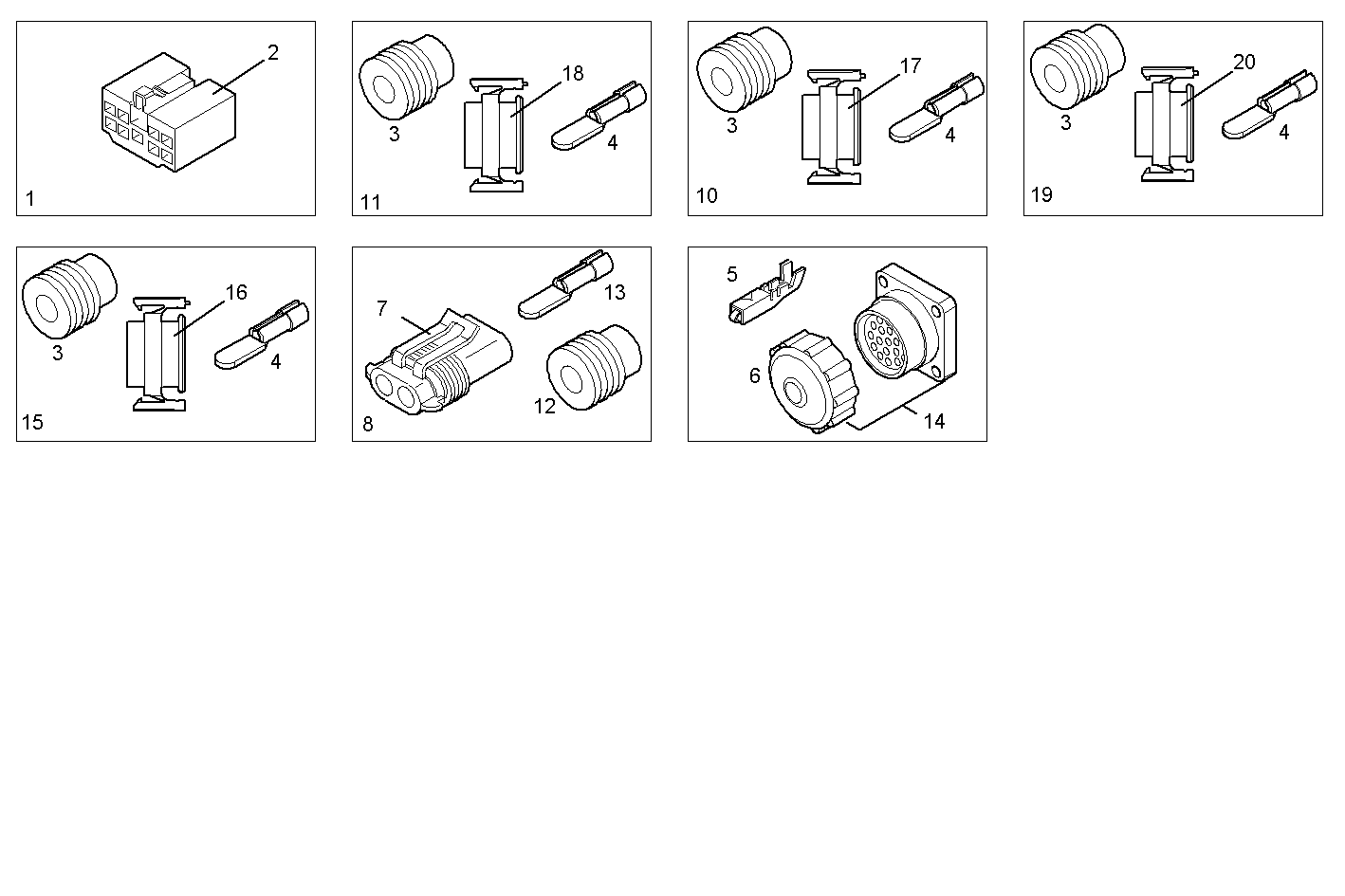

| Item |
Part number |
Description |
|
1 |
8031431 |
WIRE CONNECTOR assy 5 pin female |
|
2 |
12267380 |
CONNECTION |
|
3 |
4861937 |
RUBBER BUSH |
|
4 |
4863438 |
TERMINAL |
|
5 |
99462549 |
TERMINAL |
|
6 |
8033302 |
CAP |
|
7 |
12332087 |
WIRE CONNECTOR |
|
8 |
8031313 |
WIRE CONNECTOR assy 5 pin female |
|
10 |
8032279 |
WIRE CONNECTOR assy 19 pin male -pin layout B |
|
11 |
8032280 |
WIRE CONNECTOR assy 19 pin male -pin layout C |
|
12 |
12332885 |
GASKET |
|
13 |
12331654 |
TERMINAL |
|
14 |
8034787 |
WIRE CONNECTOR ASSY |
|
15 |
8035244 |
WIRE CONNECTOR assy 19 pin male -pin layout A |
|
16 |
4859430 |
CONNECTION 19 pin male - black colour |
|
17 |
4859433 |
CONNECTION 19 pin male - yellow colour |
|
18 |
4859431 |
CONNECTION 19 pin male - white colour |
|
19 |
8032281 |
WIRE CONNECTOR assy 10 pin male -pin layout G |
|
20 |
4859419 |
CONNECTION 10 pin male - white colour |
