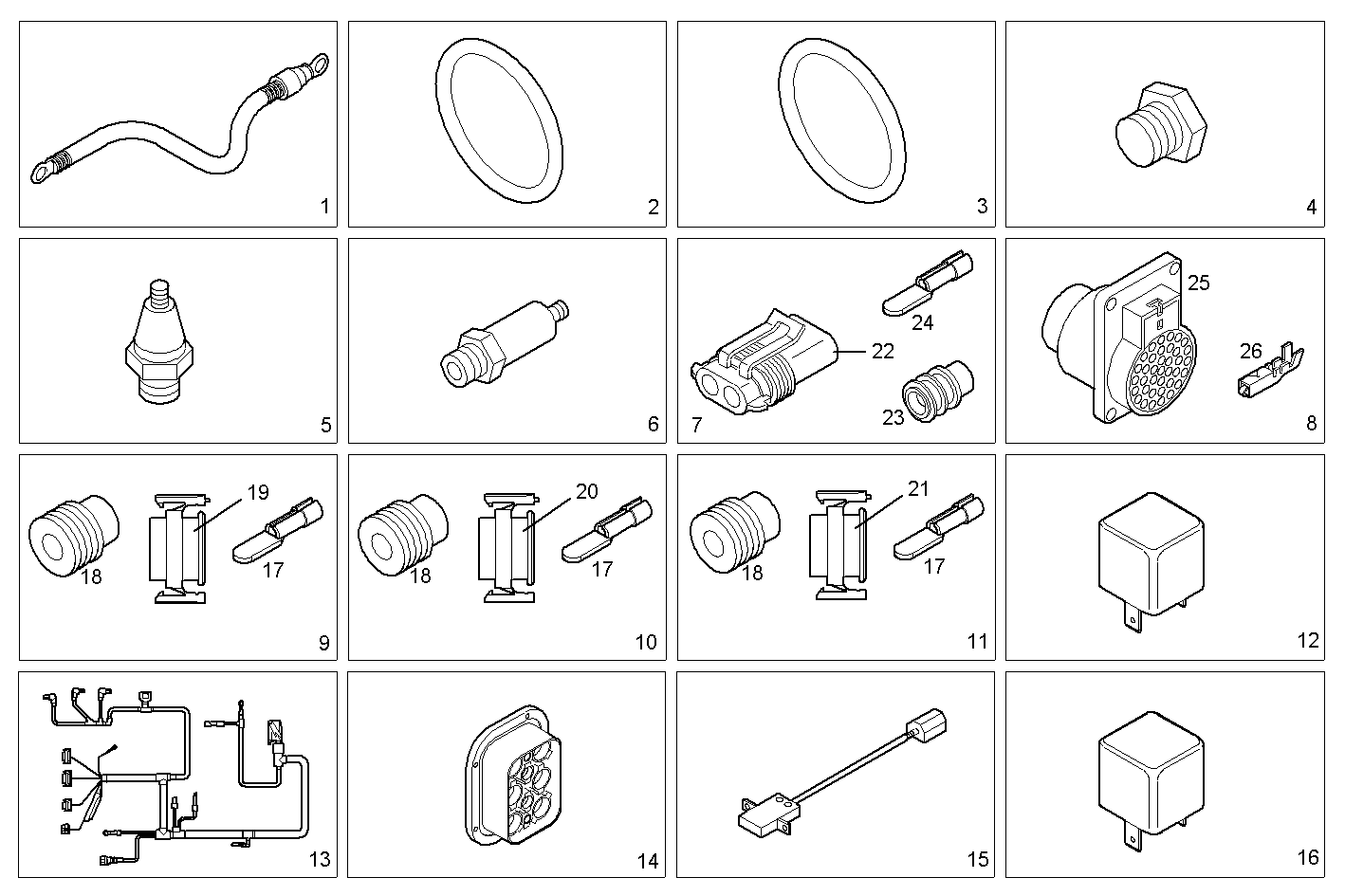

| Item |
Part number |
Description |
|
1 |
41207263 |
WIRE/CABLE |
|
2 |
17278181 |
O-RING [FROM # 50368] |
|
3 |
500337199 |
O-RING [FROM # 50368] |
|
4 |
500337200 |
THREADED PLUG [FROM # 50368] |
|
5 |
504084761 |
TRANSMITTER OIL PRESSURE |
|
6 |
98442879 |
PRESSURE SWITCH SIPEA |
|
7 |
8030574 |
WIRE CONNECTOR ASSY [UP TO 27-06-05] |
|
8 |
8031432 |
WIRE CONNECTOR assy 30 pin female |
|
9 |
8032279 |
WIRE CONNECTOR assy 19 pin male -pin layout B |
|
10 |
8032280 |
WIRE CONNECTOR assy 19 pin male -pin layout C |
|
11 |
8032282 |
WIRE CONNECTOR assy 10 pin male -pin layout E |
|
12 |
41040442 |
RELAY |
|
13 |
41209003 |
WIRE/CABLE ASSY |
|
14 |
98403038 |
SUPPORT |
|
15 |
99464594 |
SWITCH for "Blink code" |
|
16 |
500334927 |
DIODE PLATE |
|
17 |
4863438 |
TERMINAL |
|
18 |
4861937 |
RUBBER BUSH |
|
19 |
4859433 |
CONNECTION 19 pin male - yellow colour |
|
20 |
4859431 |
CONNECTION 19 pin male - white colour |
|
21 |
4859418 |
CONNECTION 10 pin male - black colour |
|
22 |
12331387 |
CONNECTION |
|
23 |
4861936 |
RUBBER BUSH YELLOW |
|
24 |
98435372 |
TERMINAL |
|
25 |
504013633 |
CONNECTION |
|
26 |
99462549 |
TERMINAL |
