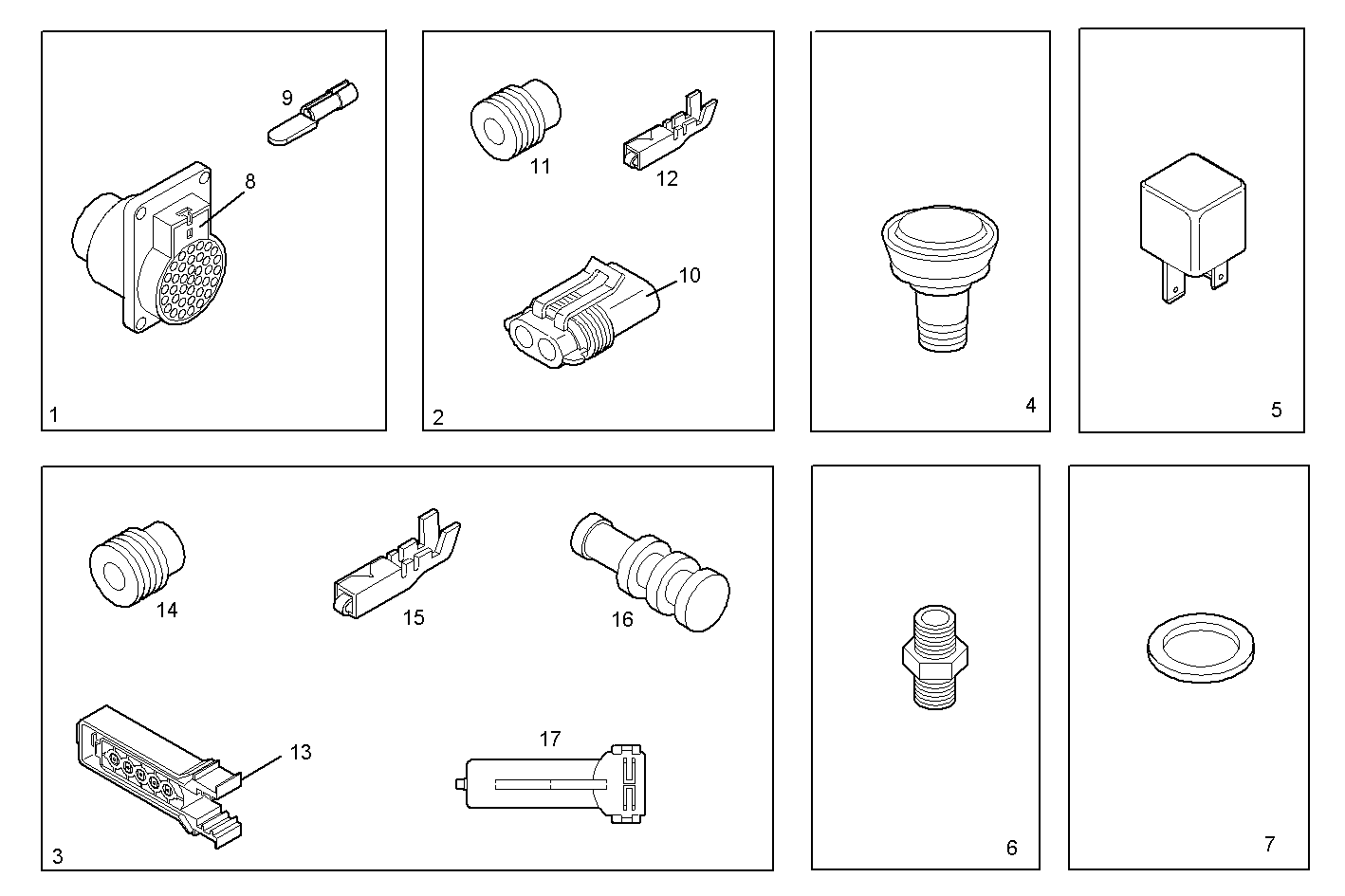

| Item |
Part number |
Description |
|
1 |
8031432 |
WIRE CONNECTOR assy 30 pin female |
|
2 |
8030574 |
WIRE CONNECTOR ASSY [UP TO 27-06-05] |
|
3 |
8030193 |
WIRE CONNECTOR assy 5 pin female |
|
4 |
8027423 |
CHOCKED FILTER INDIC. |
|
5 |
500334927 |
DIODE PLATE |
|
6 |
41905554 |
PIPE SOCKET M14X1,5 - M16X1,5 |
|
7 |
99489018 |
SEAL GASKET Ø14X22 MM SP=1,5 MM |
|
8 |
504013633 |
CONNECTION |
|
9 |
99462549 |
TERMINAL |
|
10 |
12331387 |
CONNECTION |
|
11 |
4861936 |
RUBBER BUSH YELLOW |
|
12 |
98435372 |
TERMINAL |
|
13 |
500363489 |
WIRE CONNECTOR |
|
14 |
500363737 |
RUBBER BUSH |
|
15 |
500363580 |
TERMINAL |
|
16 |
500395785 |
RUBBER BUSH |
|
17 |
500363578 |
COVER |
