C78ENTF40.00

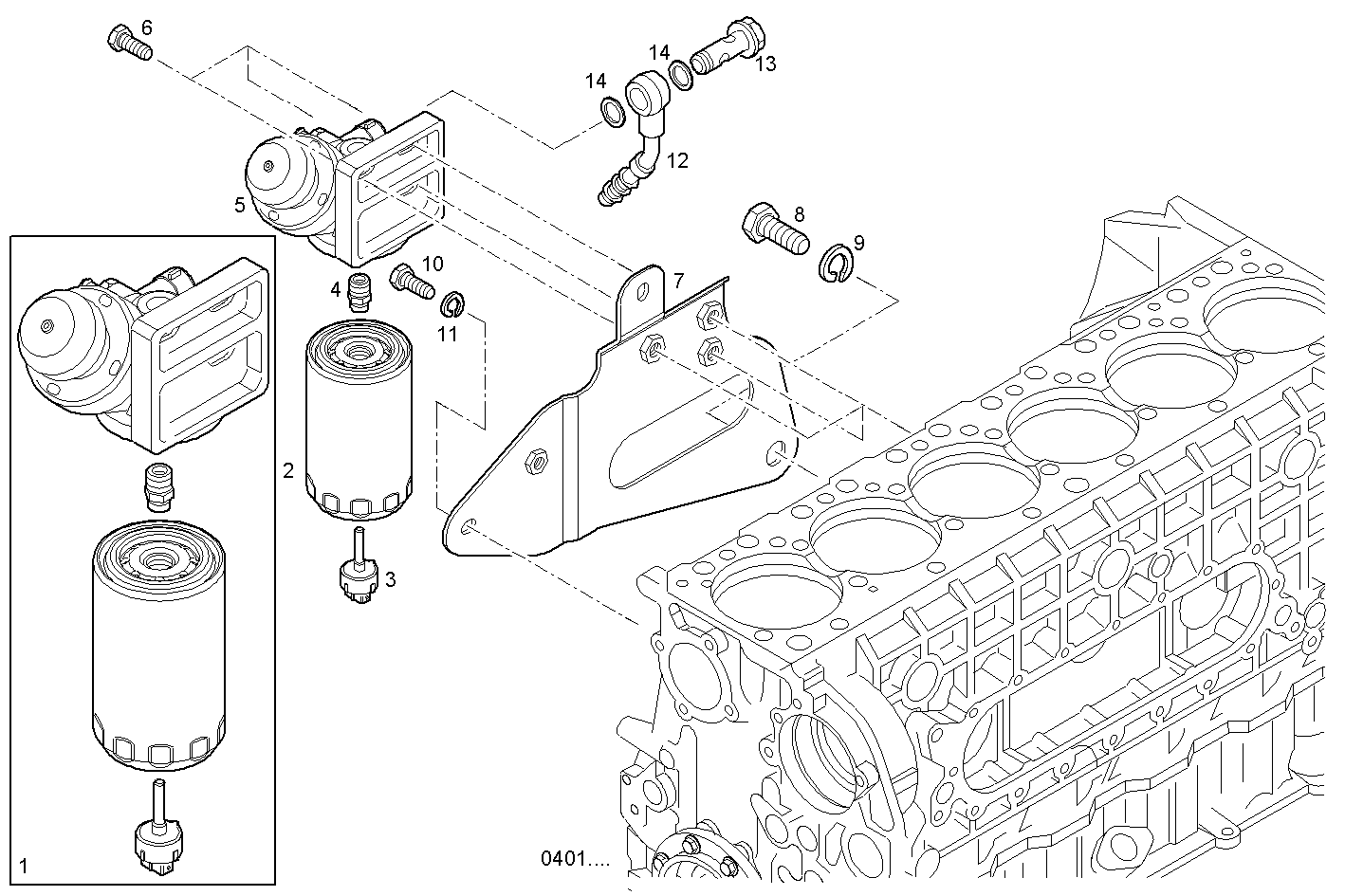

2090.014 FUEL PREFILTER
| Item | Part number | Description |
|---|---|---|
| 1 | 504057743 | PREFILTER ASSY |
| 2 | 2992662 | FUEL FILTER ELEM. |
| 3 | 42540203 | SENSOR WATER |
| 4 | 42545574 | THREADED UNION |
| 5 | 42545573 | FUEL FILT.SUPPORT |
| 6 | 16587125 | HEXAGON BOLT M10X25 MM |
| 7 | 8047150 | FUEL FILT.SUPPORT |
| 8 | 16701724 | HEXAGON BOLT M16X30 |
| 9 | 17092174 | SPRING WASHER Ø16X32X3,4 |
| 10 | 16605625 | HEXAGON BOLT M8X25 |
| 11 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 12 | 61321984 | ELBOW COUPLING |
| 13 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 14 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
