C78ENTF40.00

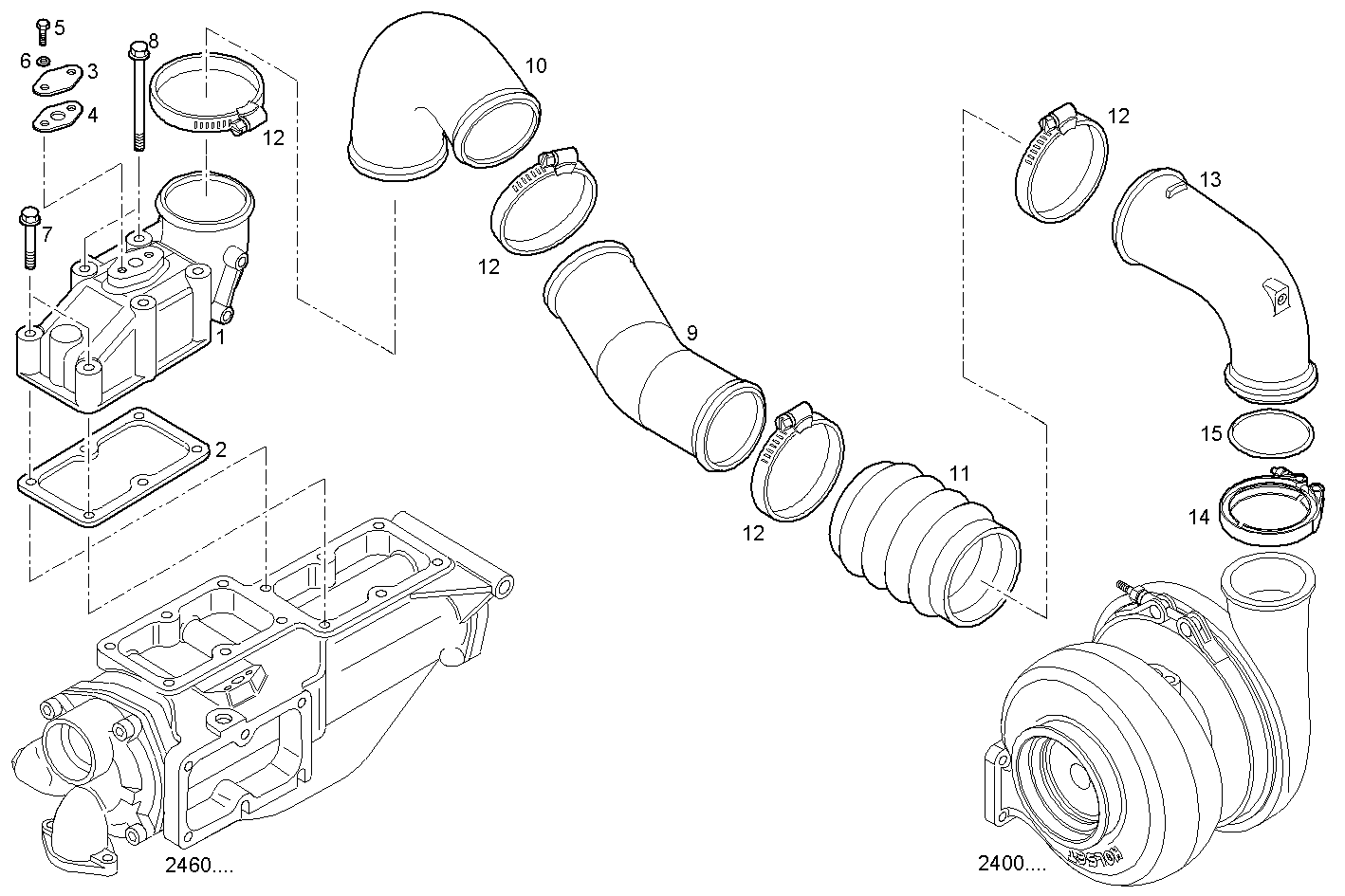

2430.052 EXIT AIR PIPE
| Item | Part number | Description |
|---|---|---|
| 1 | 504074691 | INTAKE ELBOW |
| 2 | 504026624 | FLAT ENGINE GASKET |
| 3 | 8048558 | FLANGE |
| 4 | 8042067 | FLAT ENGINE GASKET |
| 5 | 16603425 | HEXAGON BOLT M6X10 |
| 6 | 17088774 | WASHER Ø6 MM |
| 7 | 16606424 | HEXAGON BOLT M8X65 MM |
| 8 | 16045424 | SCREW M8X110 MM |
| 9 | 8050580 | AIR PIPE/DUCT |
| 10 | 8043728 | RUBBER SLEEVE |
| 11 | 42088612 | WATER HOSE |
| 12 | 17769491 | CLIP |
| 13 | 61318365 | AIR PIPE/DUCT |
| 14 | 4800661 | CLIP Ø 75 mm. |
| 15 | 17284681 | O-RING Ø61,6 MM SP=2,62 MM |
