C78ENTF40.00

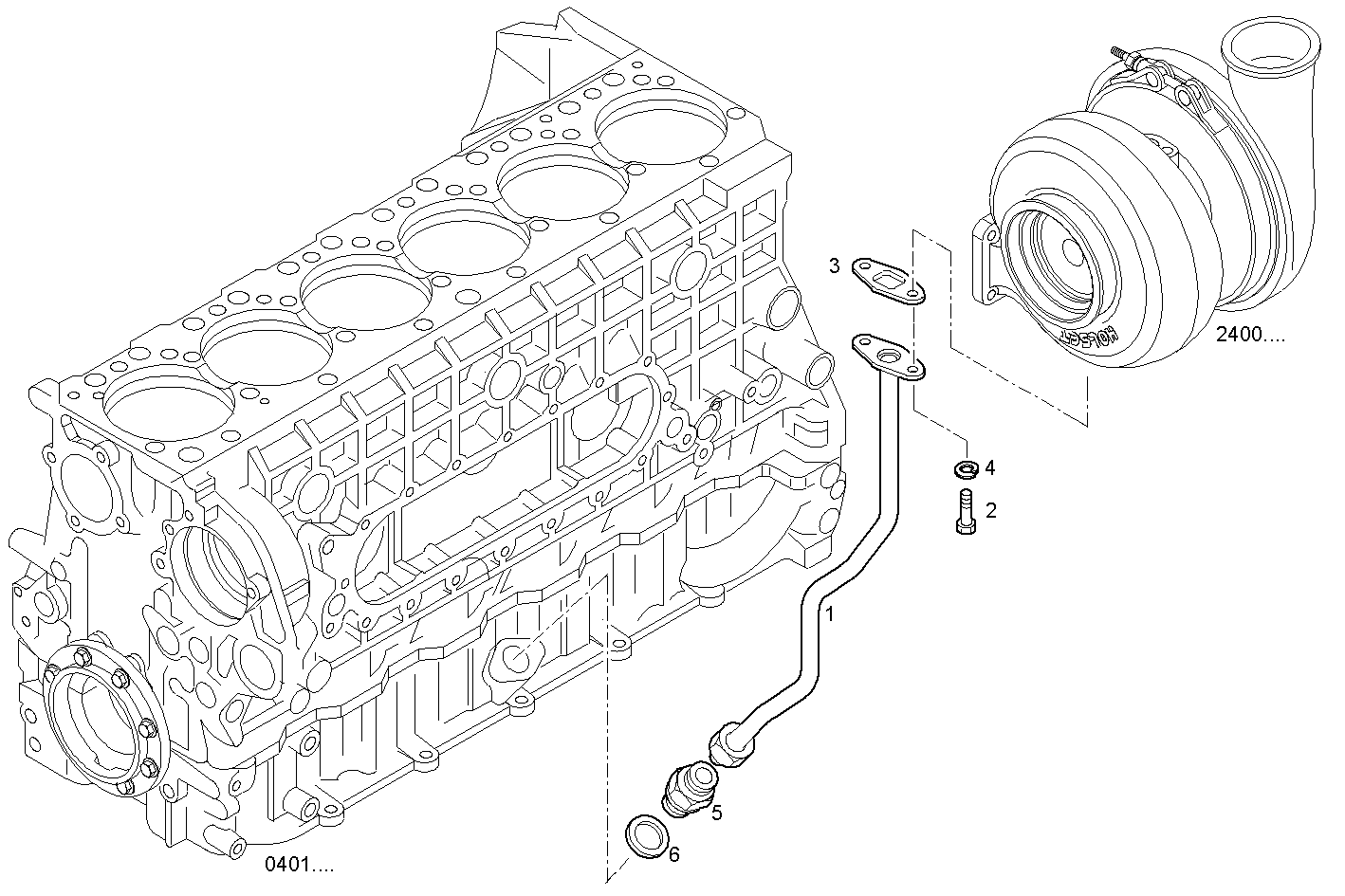

3065.023 RETURN OIL LINE
| Item | Part number | Description |
|---|---|---|
| 1 | 8047173 | OIL LINE |
| 2 | 16605625 | HEXAGON BOLT M8X25 |
| 3 | 98412509 | FLAT ENGINE GASKET |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 8031297 | THREADED UNION |
| 6 | 99434480 | SEAL GASKET Ø30X40 MM |
