C78ENTF40.00

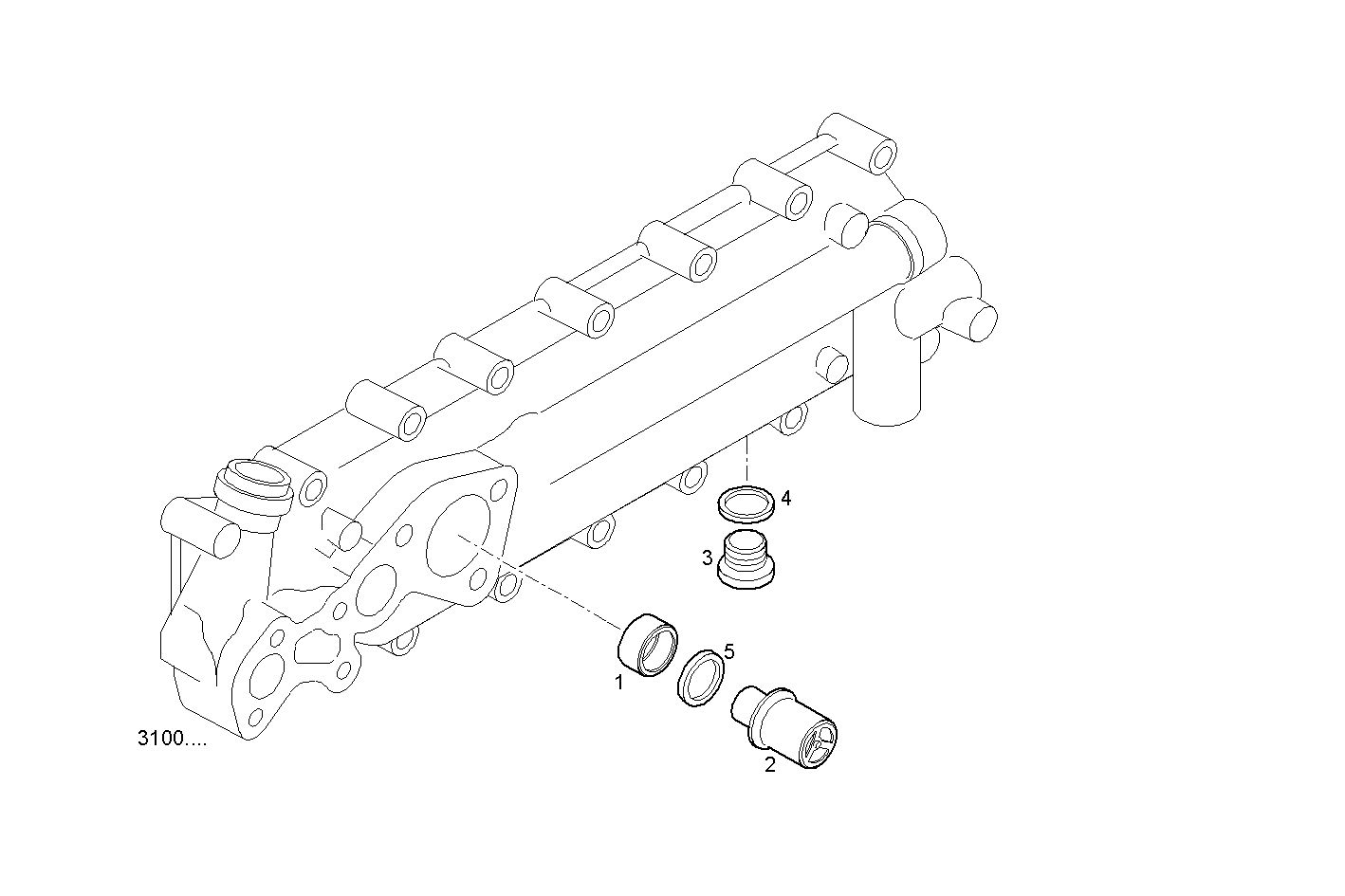

3150.026 OIL - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 99433798 | SPACING BAR Ø28 MM |
| 2 | 98498322 | VALVE |
| 3 | 16992415 | THREADED PLUG M16X1,5 |
| 4 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 5 | 98494952 | GASKET M35X1,5 |
