C78ENTF40.00

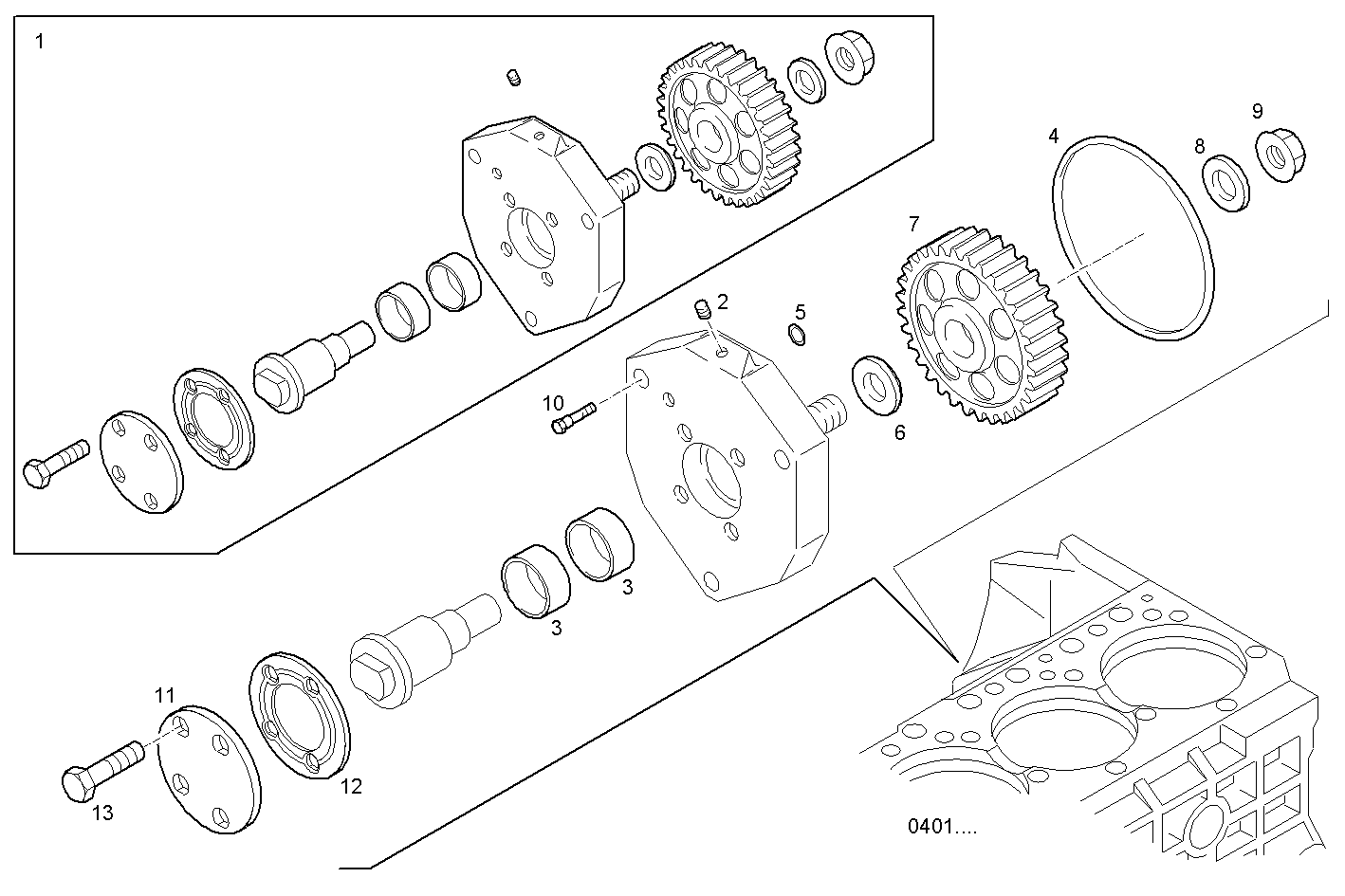

3500.009 POWER TAKE OFF
| Item | Part number | Description |
|---|---|---|
| 1 | 500354354 | POWER TAKE OFF ASSY |
| 2 | 504051236 | THREADED PLUG DIAM=1/8" |
| 3 | 4788087 | BUSH VANDERVELL |
| 4 | 17292281 | O-RING Ø126,59 MM SP=3,53 MM |
| 5 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
| 6 | 500351319 | WASHER |
| 7 | 500351009 | GEAR |
| 8 | 17096014 | WASHER Ø20X37 MM |
| 9 | 17046231 | NUT M20 |
| 10 | 16678135 | HEXAGON BOLT M12X45 MM |
| 11 | 500355019 | COVER |
| 12 | 500355018 | FLAT ENGINE GASKET |
| 13 | 18139424 | HEXAGON BOLT M10X20 MM |
