C78ENTF40.00

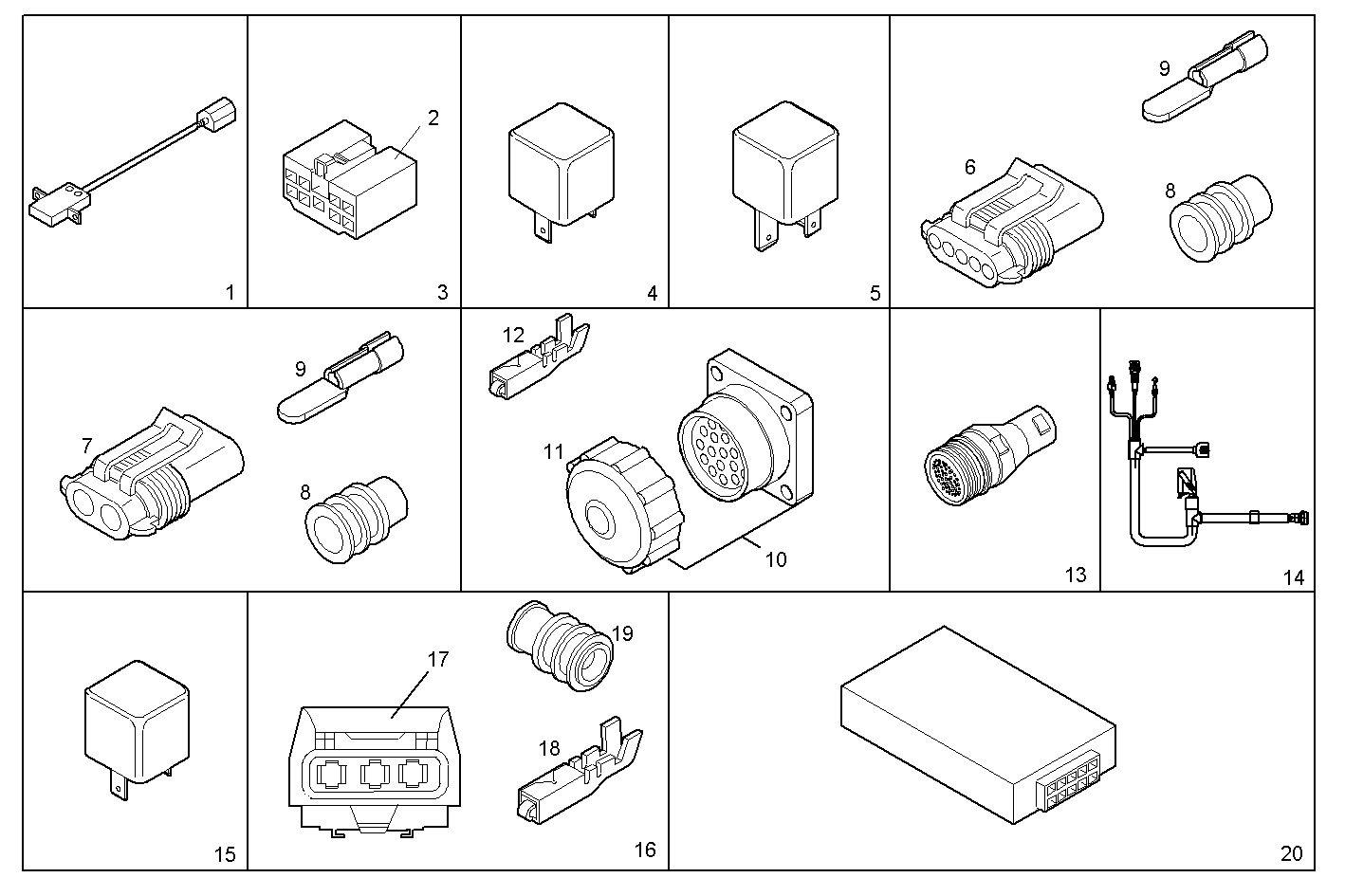

8600.081 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 99464594 | SWITCH for "Blink code" |
| 2 | 8031431 | WIRE CONNECTOR assy 5 pin female |
| 3 | 12267380 | CONNECTION |
| 4 | 41040442 | RELAY |
| 5 | 500362250 | RELAY 50A 24V |
| 6 | 8030573 | CONNECTION ASSY |
| 7 | 12331387 | CONNECTION |
| 8 | 12332885 | GASKET |
| 9 | 12331654 | TERMINAL |
| 10 | 8034787 | WIRE CONNECTOR ASSY |
| 11 | 8033302 | CAP |
| 12 | 99462549 | TERMINAL |
| 13 | 8036545 | WIRE CONNECTOR |
| 14 | 8036518 | ENGINE HARNESS |
| 15 | 500334927 | DIODE PLATE |
| 16 | 8030575 | CONNECTION ASSY |
| 17 | 99430234 | PLUG COUPLING |
| 18 | 12309290 | TERMINAL |
| 19 | 4835259 | GASKET |
| 20 | 8050825 | SWITCHGEAR |
