C78ENTF40.00

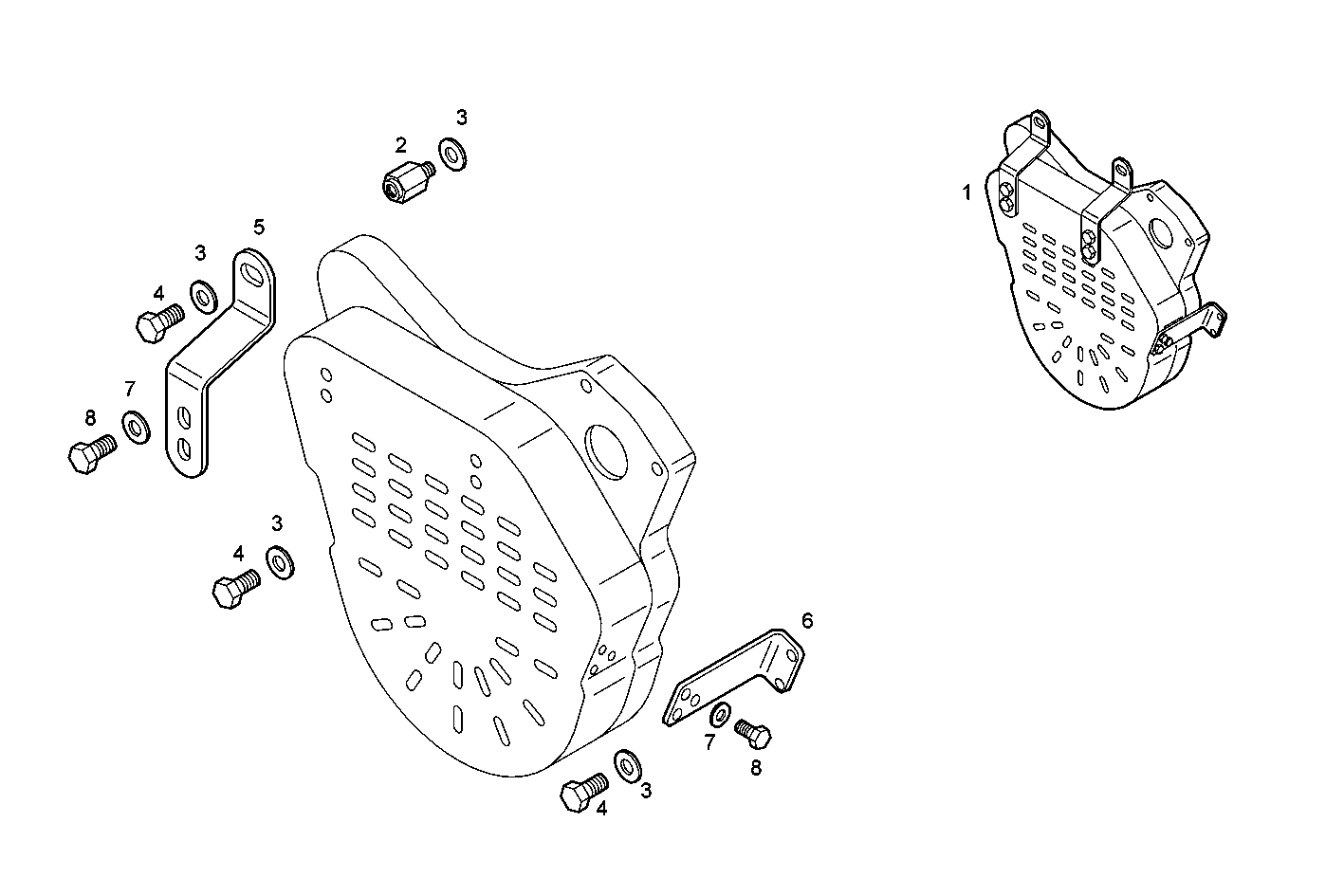

A48020503 SHIELDS - for pulley/belts
| Item | Part number | Description |
|---|---|---|
| 1 | 8036956 | PROTECTION ASSY |
| 2 | 8036981 | SPACING BAR |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 16605424 | SCREW M8X16 MM (8.8) |
| 5 | 8036905 | RETAINER |
| 6 | 8036904 | RETAINER |
| 7 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 8 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
