C78ENTF40.00

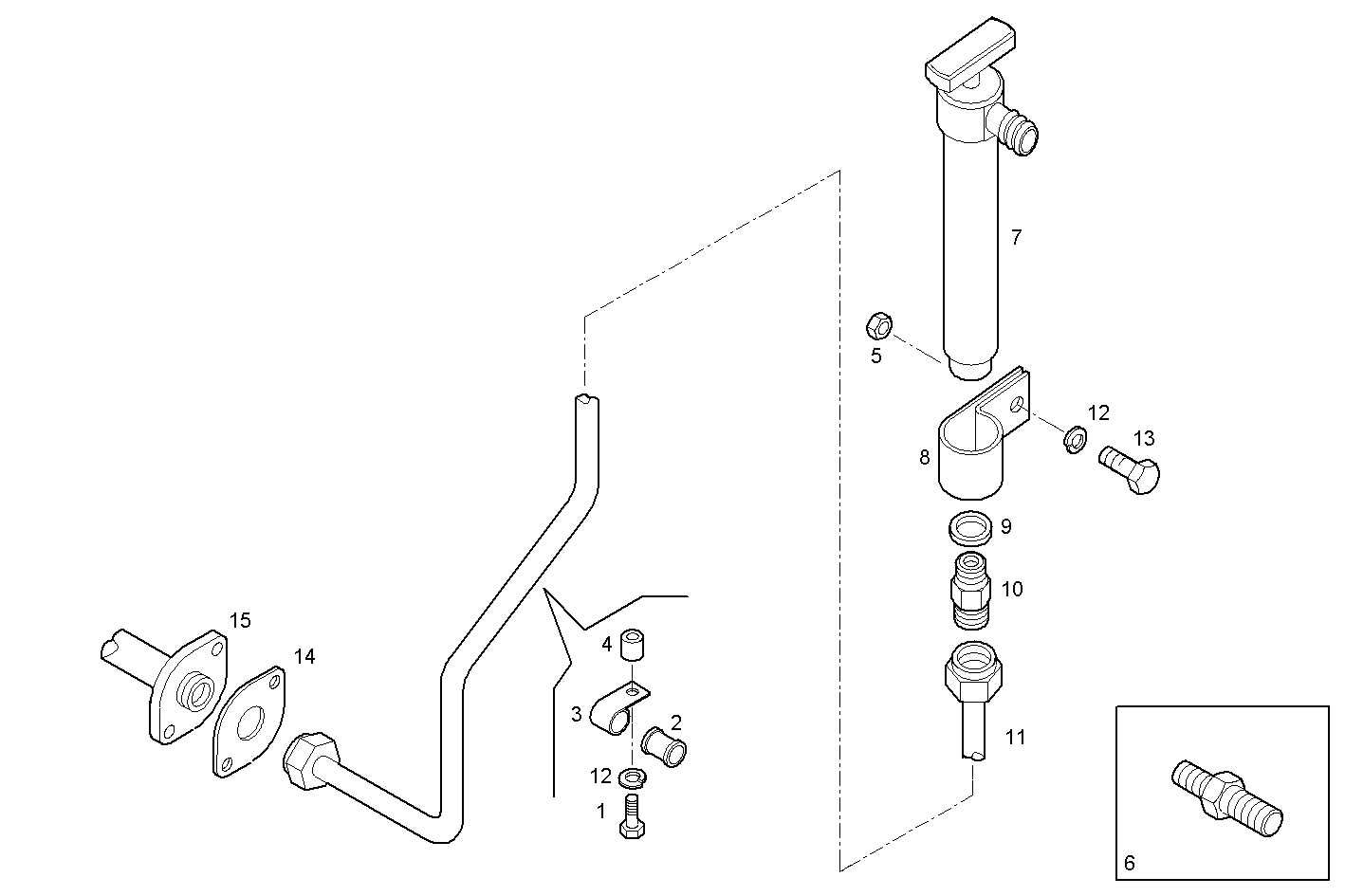

A49010504 OIL DRAIN PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 16586524 | HEXAGON BOLT M8X30 MM |
| 2 | 4757122 | RUBBER PAD |
| 3 | 4763804 | FASTENING BRACKET |
| 4 | 17816414 | SPACING BAR Ø8,5X18 MM SP=20 MM |
| 5 | 17039925 | HEXAGON NUT M8 |
| 6 | 8050889 | SPACING BAR |
| 7 | 8050685 | MAR. ENG. SUCTION PUMP |
| 8 | 8051314 | FASTENING BRACKET |
| 9 | 99489019 | WASHER Ø16X24 MM SP=1,5 MM |
| 10 | 8011696 | PIPE SOCKET M16X1,5/M22X1,5 |
| 11 | 8047171 | OIL LINE |
| 12 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 13 | 16605524 | HEXAGON BOLT M8X20 MM |
| 14 | 4863361 | GASKET |
| 15 | 8036596 | OIL LINE |
