C78ENTF41.00

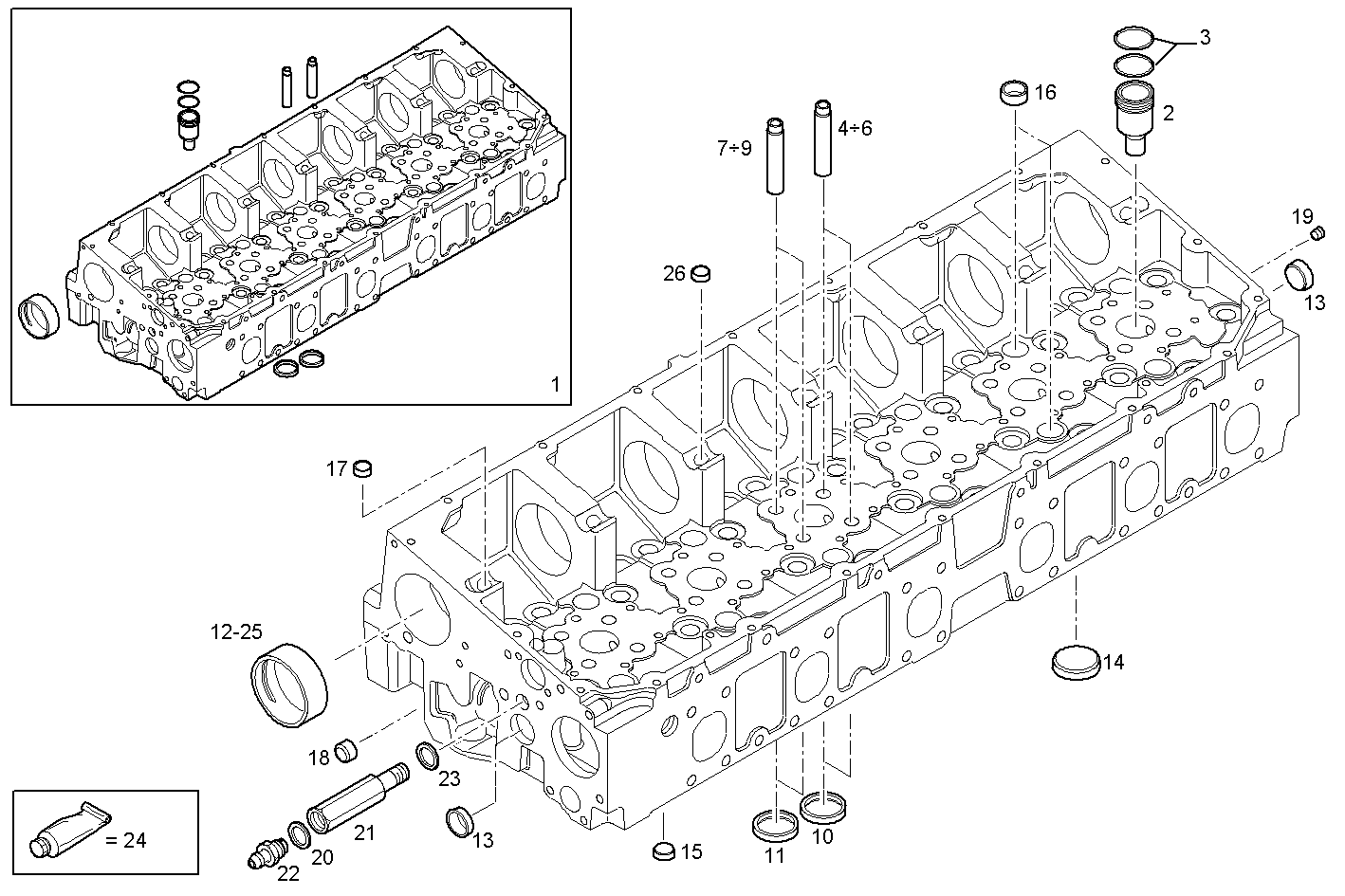

0610.029 CYLINDER HEAD

Iveco/FPT CYLINDER HEAD

Item Part number Description
1 504045031 CYLINDER HEAD ASSY
2 99461442 NOZZLE HOLDER SEAT
3 17278881 O-RING Ø23,5 MM SP=1,7 MM
4 500391436 VALVE GUIDE EXHAUST
5 500391437 VALVE GUIDE +0,2 EXHAUST
6 500391438 VALVE GUIDE +0,4 EXHAUST
7 500391440 VALVE GUIDE INTAKE
8 500391441 VALVE GUIDE +0,2 INTAKE
9 500391442 VALVE GUIDE +0,4 INTAKE
10 99447343 VALVE SEAT STD. EXHAUST
11 99456802 VALVE SEAT STD. INTAKE
12 504078220 BUSH
13 16990870 LOCK PLUG Ø28 MM
14 16991370 LOCK PLUG Ø45 MM
15 16990570 LOCK PLUG Ø20 MM
16 504237371 PLUG
17 504138060 LOCK PLUG [FROM # 59639]
18 16993911 LOCK PLUG M14X1,5
19 504138062 PLUG Ø10 MM
20 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
21 500328252 PIPE SOCKET
22 500304562 BREATHER PLUG
23 98474308 SEAL GASKET Ø14X22 MM
24 2992695 ADHESIVE/STICKER LOCTITE
25 504078221 BUSH
26 504138061 LOCK PLUG
