C78ENTF41.00

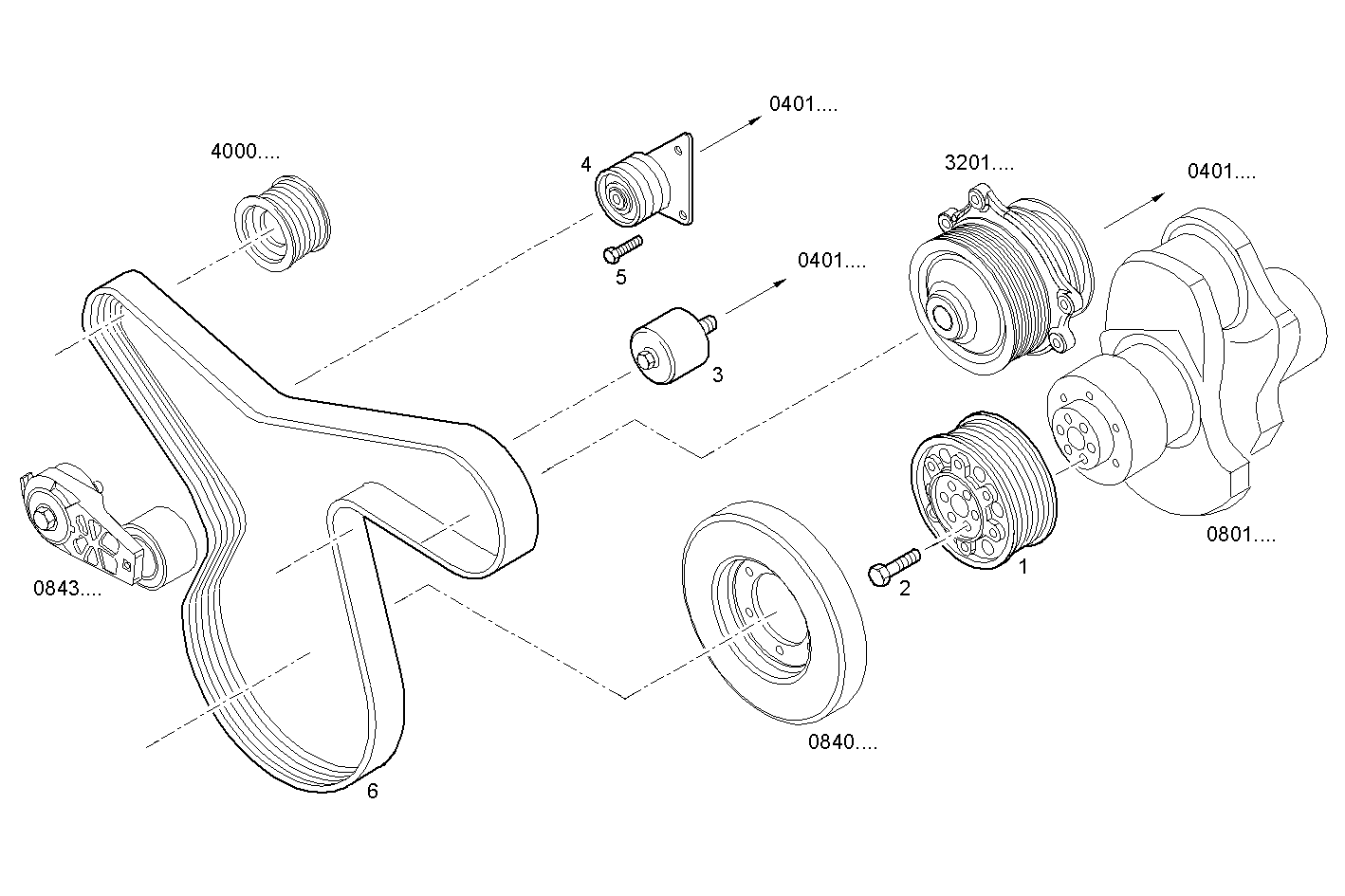

0843.039 DRIVING PULLEY
| Item | Part number | Description |
|---|---|---|
| 1 | 8047183 | PULLEY |
| 2 | 500354585 | SCREW |
| 3 | 504006261 | BELT TENSIONER ASSY |
| 4 | 504080798 | BELT TENSIONER |
| 5 | 16600224 | HEXAGON BOLT M8X1,25X18 MM |
| 6 | 8047251 | V-BELT |
