C78ENTF41.00

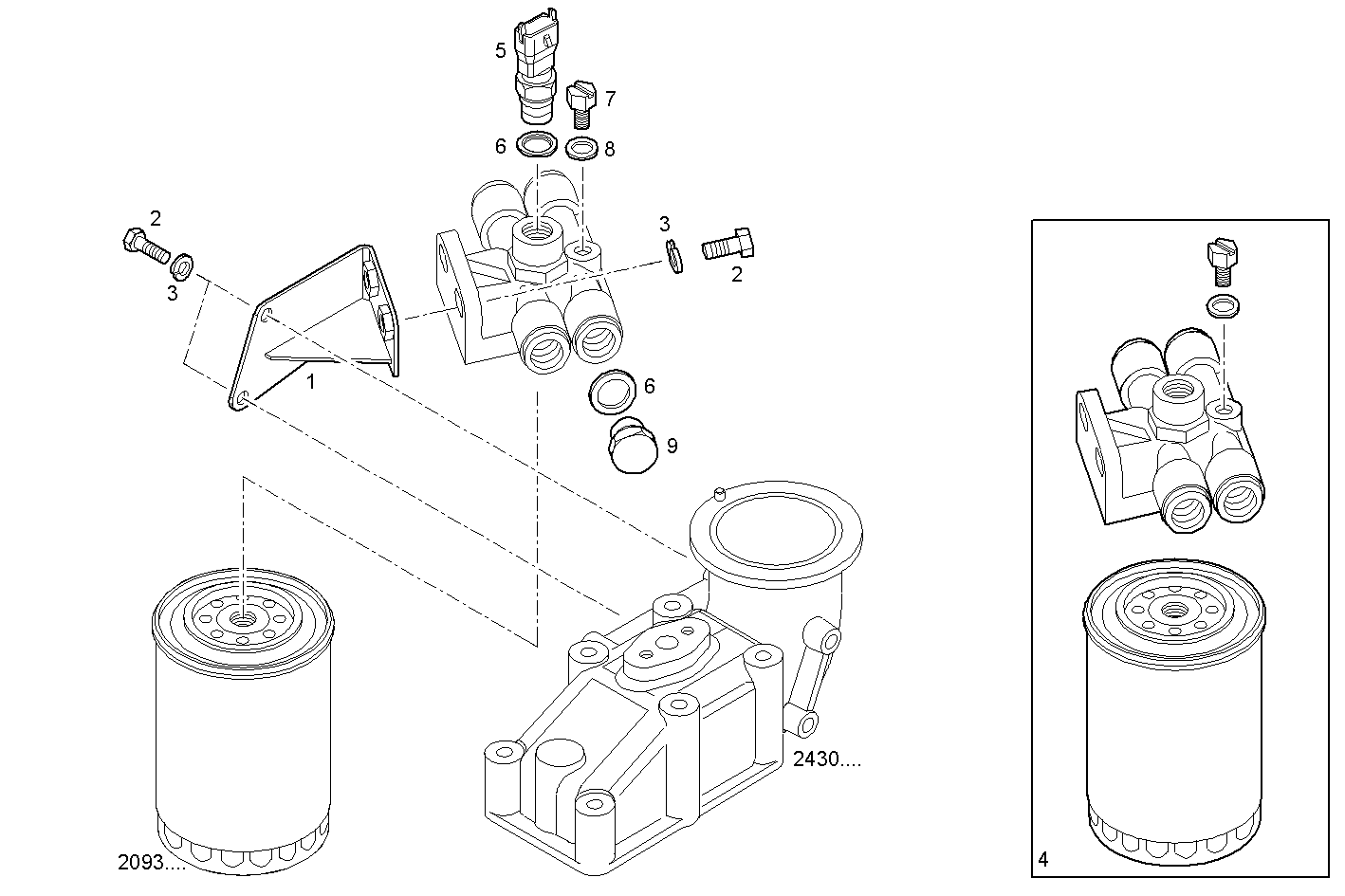

2004.010 FUEL FILTER SUPPORT

Iveco/FPT FUEL FILTER SUPPORT

Item Part number Description
1 8047187 RETAINER
2 16607625 SCREW M10X25
3 17090174 SPRING WASHER Ø10X20 MM
4 8033277 FUEL FILTER ASSY
5 500346074 TRANSMITTER Pressure
6 99489018 SEAL GASKET Ø14X22 MM SP=1,5 MM
7 8033281 DRAIN SCREW
8 99469377 WASHER
9 10300611 LOCK PLUG M14X1,5
