C78ENTF41.00

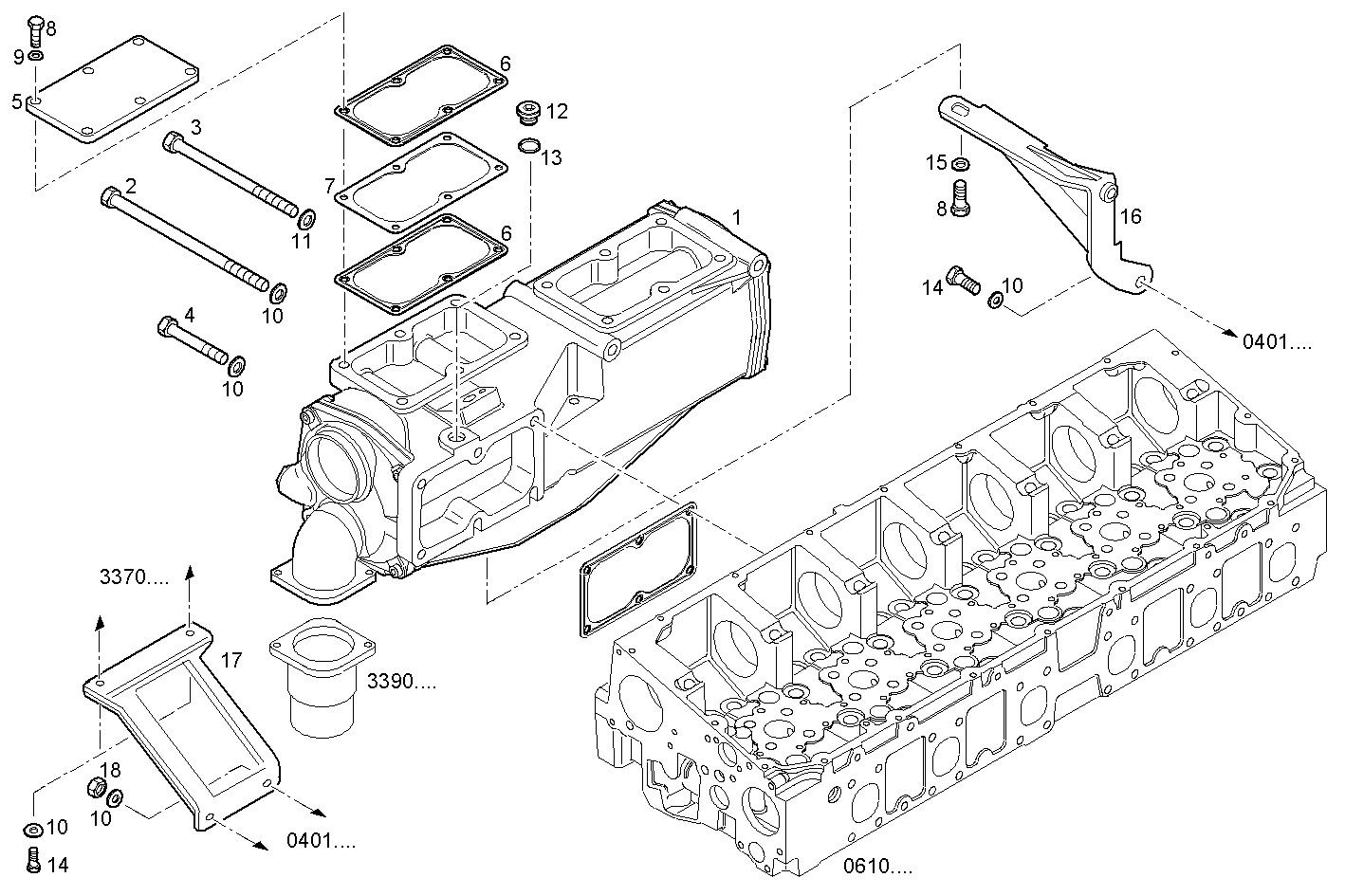

2460.003 AIR - WATER HEAT EXCHANGER

Iveco/FPT AIR - WATER HEAT EXCHANGER

Item Part number Description
1 8041377 AIR/WATER HEAT EXCHANGER ASSY
2 8030482 SCREW M10X210
3 16611624 SCREW M12X160
4 16607824 HEXAGON BOLT M10X35 MM (8.8)
5 8034337 COVER
6 504026624 FLAT ENGINE GASKET
7 8037365 SPACING BAR
8 16605625 HEXAGON BOLT M8X25
9 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
10 17090174 SPRING WASHER Ø10X20 MM
11 17091074 WASHER Ø12X24X2,8 MM
12 16992415 THREADED PLUG M16X1,5
13 99489019 WASHER Ø16X24 MM SP=1,5 MM
14 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
15 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
16 8031103 RETAINER
17 8029420 RETAINER
18 17038131 HEXAGON NUT M10
