C78ENTF41.00

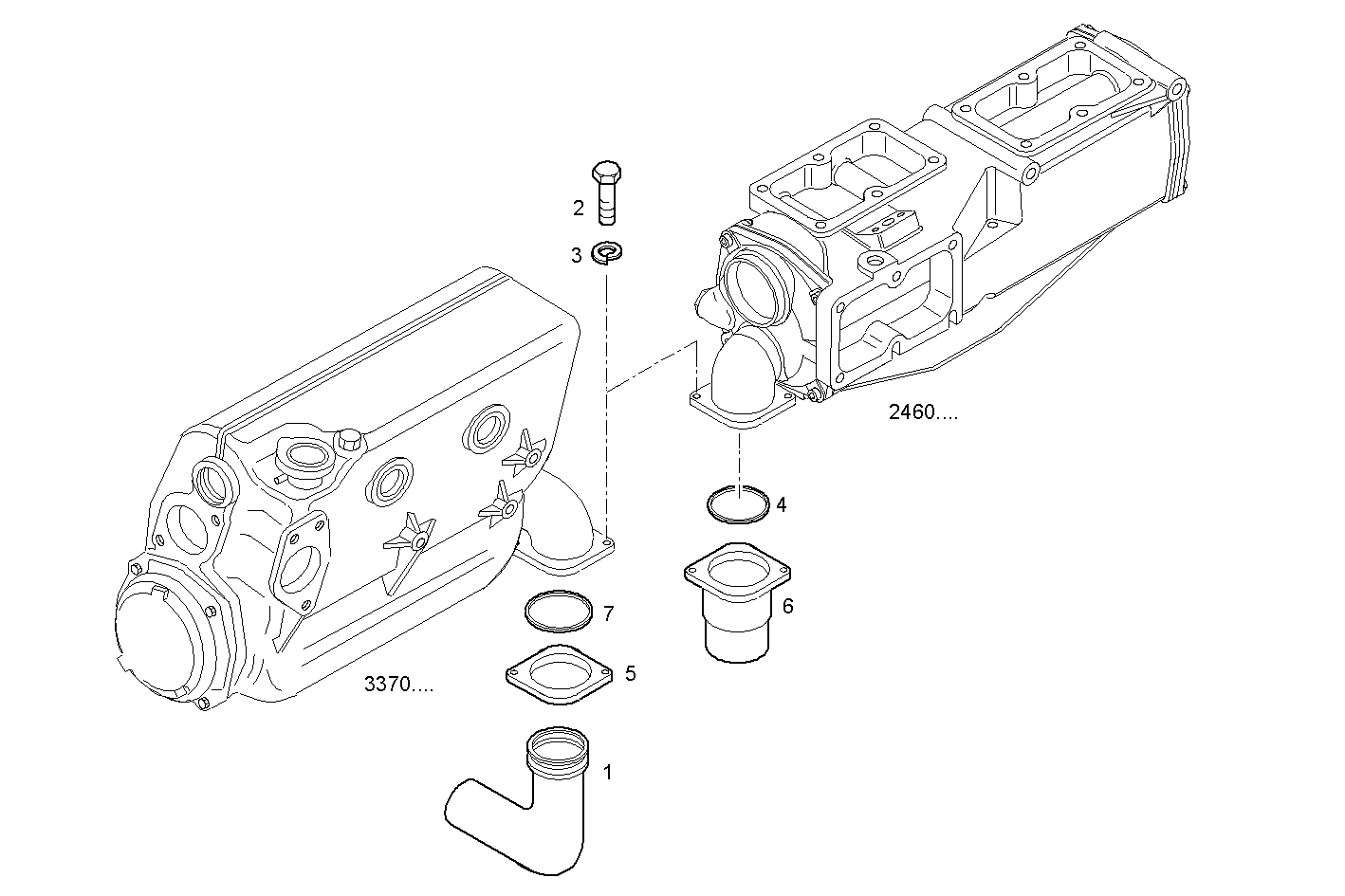

3390.012 SEA WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8048198 | WATER PIPE |
| 2 | 16605670 | SCREW M8X25 MM |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 17289981 | O-RING Ø53,57X3,53 MM |
| 5 | 8022237 | FLANGE |
| 6 | 8048190 | WATER PIPE |
| 7 | 17290281 | O-RING Ø63,09 MM SP=3,53 MM |
