C78ENTG20.00A001

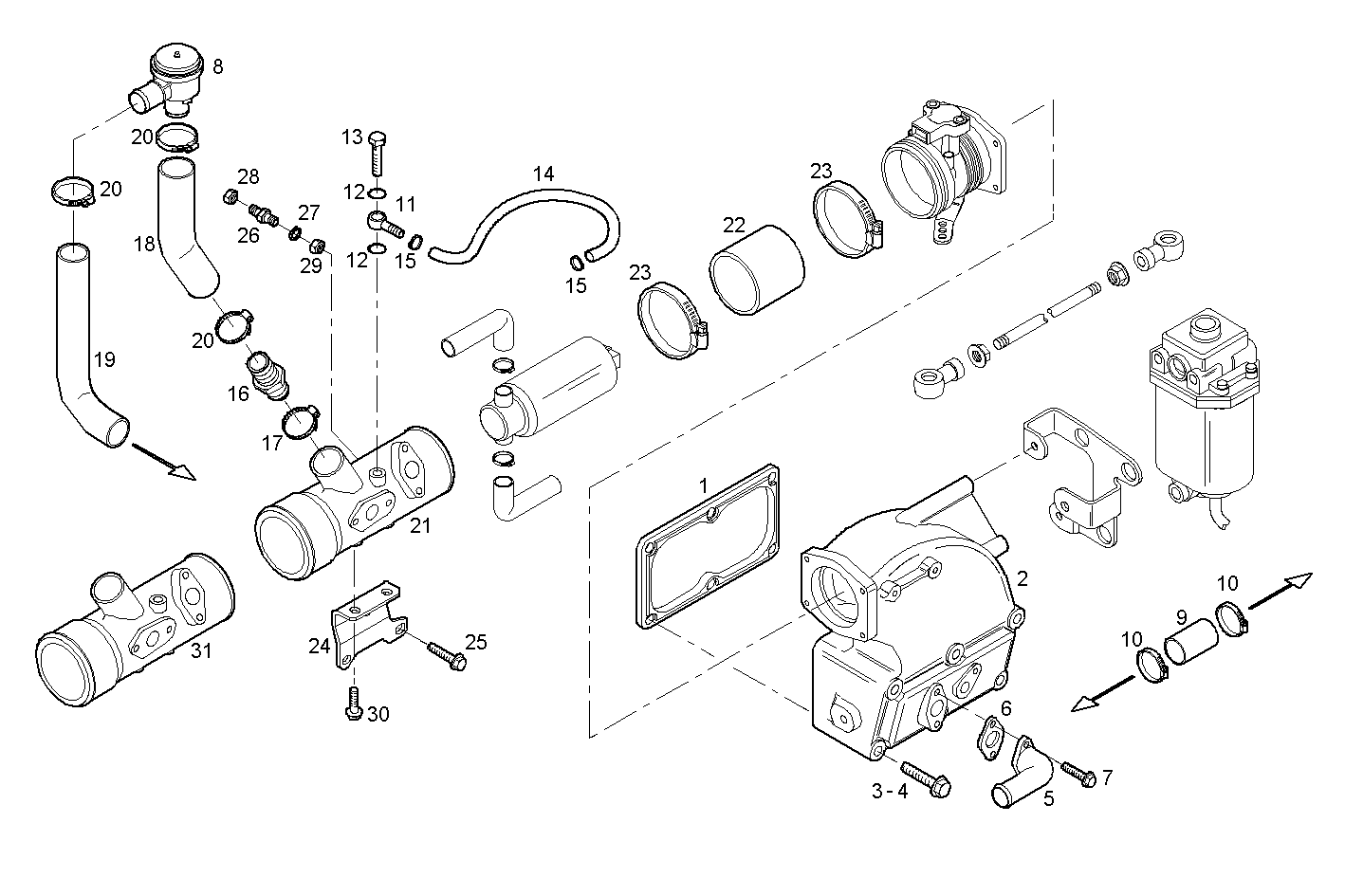

0710.225 INTAKE MANIFOLD

Iveco/FPT INTAKE MANIFOLD

Item Part number Description
1 504026624 FLAT ENGINE GASKET
2 504081905 INTAKE ELBOW
3 16593024 HEXAGON BOLT M10X1,5X90 MM
4 16598924 HEXAGON BOLT M10X110
5 8025135 AIR PIPE/DUCT
6 98401052 FLAT ENGINE GASKET
7 16586925 HEXAGON BOLT M8X50 MM
8 8029990 VALVE
9 504075411 RUBBER SLEEVE
10 17765494 CLIP dia. = 100/120
11 4740662 BANJO COUPLING
12 98474305 WASHER Ø10X17 MM SP=2,3
13 4864080 SCREW CONNECTOR M10X1,25
14 504076044 RUBBER HOSE
15 18087692 CLIP Ø8/12 MM
16 504070711 THREADED UNION M28X1,5
17 16571960 SEAL GASKET
18 504095001 HOSE
19 504075337 RUBBER HOSE
21 504076043 INTAKE ELBOW [UP TO # 51062]
22 504076144 CONNECTOR SLEEVE
23 17765192 HOSE CLIP Ø70-90 MM
24 504087835 FASTENING BRACKET
25 16586225 HEXAGON BOLT M8X1,25X16 MM
26 504087836 RETAINER
27 17089574 WASHER Ø8X16 MM
28 17044725 HEXAGON NUT M8
29 17044825 HEXAGON NUT M10
30 16673735 HEXAGON BOLT M8X25 MM
31 504101880 INTAKE ELBOW
