C78ENTM30.10A002

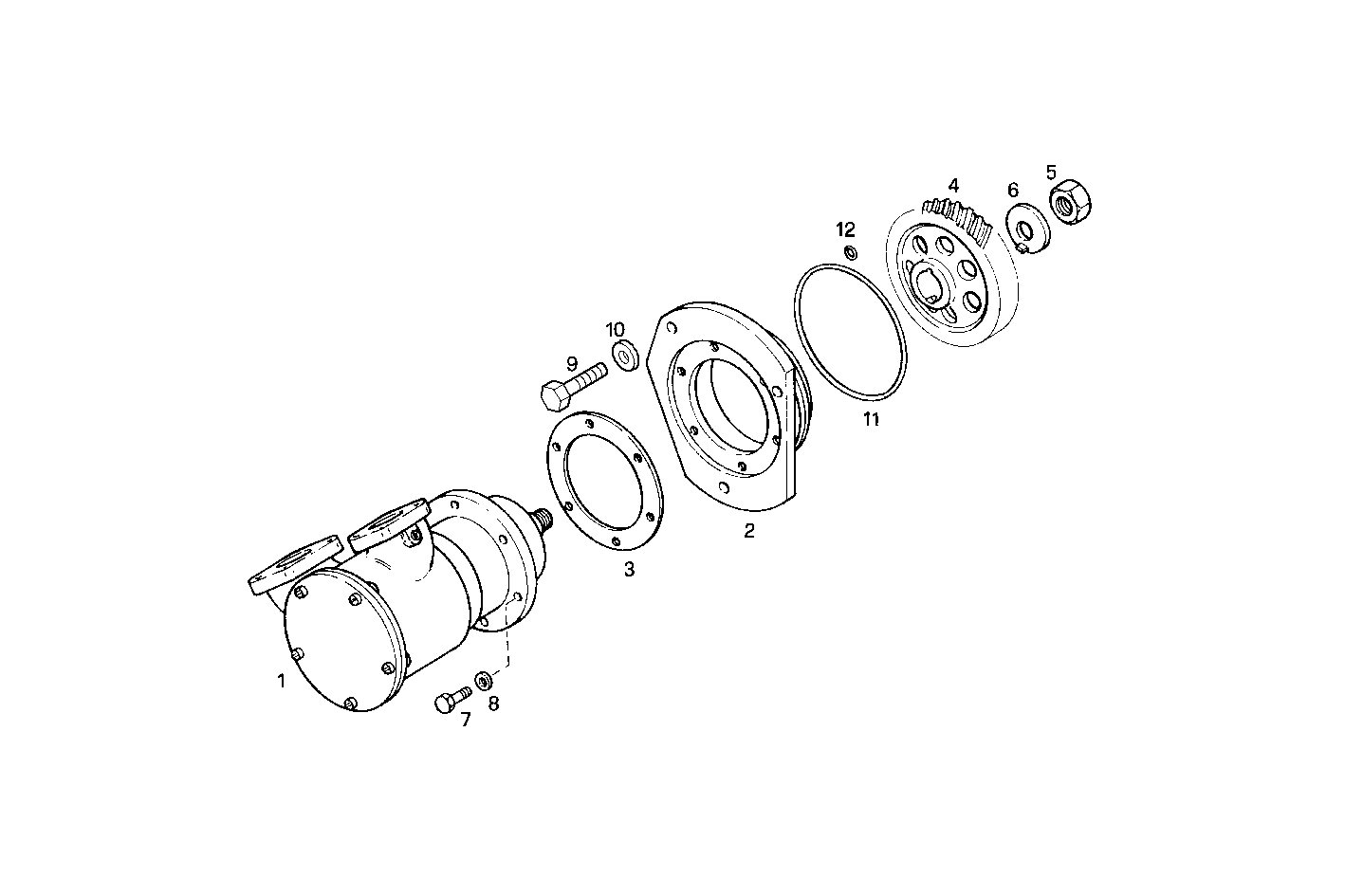

3380.037 SEA WATER PUMP - JABSCO
| Item | Part number | Description |
|---|---|---|
| 1 | 8112445 | SEA WATER PUMP ASSY JABSCO |
| 2 | 8027010 | SPACING BAR |
| 3 | 8008952 | GASKET |
| 4 | 8027011 | GEAR |
| 5 | 17039221 | NUT M18X1,5 |
| 6 | 8027036 | LOCKING PLATE |
| 7 | 16605734 | HEXAGON BOLT M8X30 MM |
| 8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 9 | 16609924 | HEXAGON BOLT M12X30 MM (8.8) |
| 10 | 17091074 | WASHER Ø12X24X2,8 MM |
| 11 | 17292081 | O-RING Ø120,24 MM SP=3,53 |
| 12 | 17281381 | O-RING Ø9,19 MM [FROM TO # 62977] |
