C78ENTM50.10

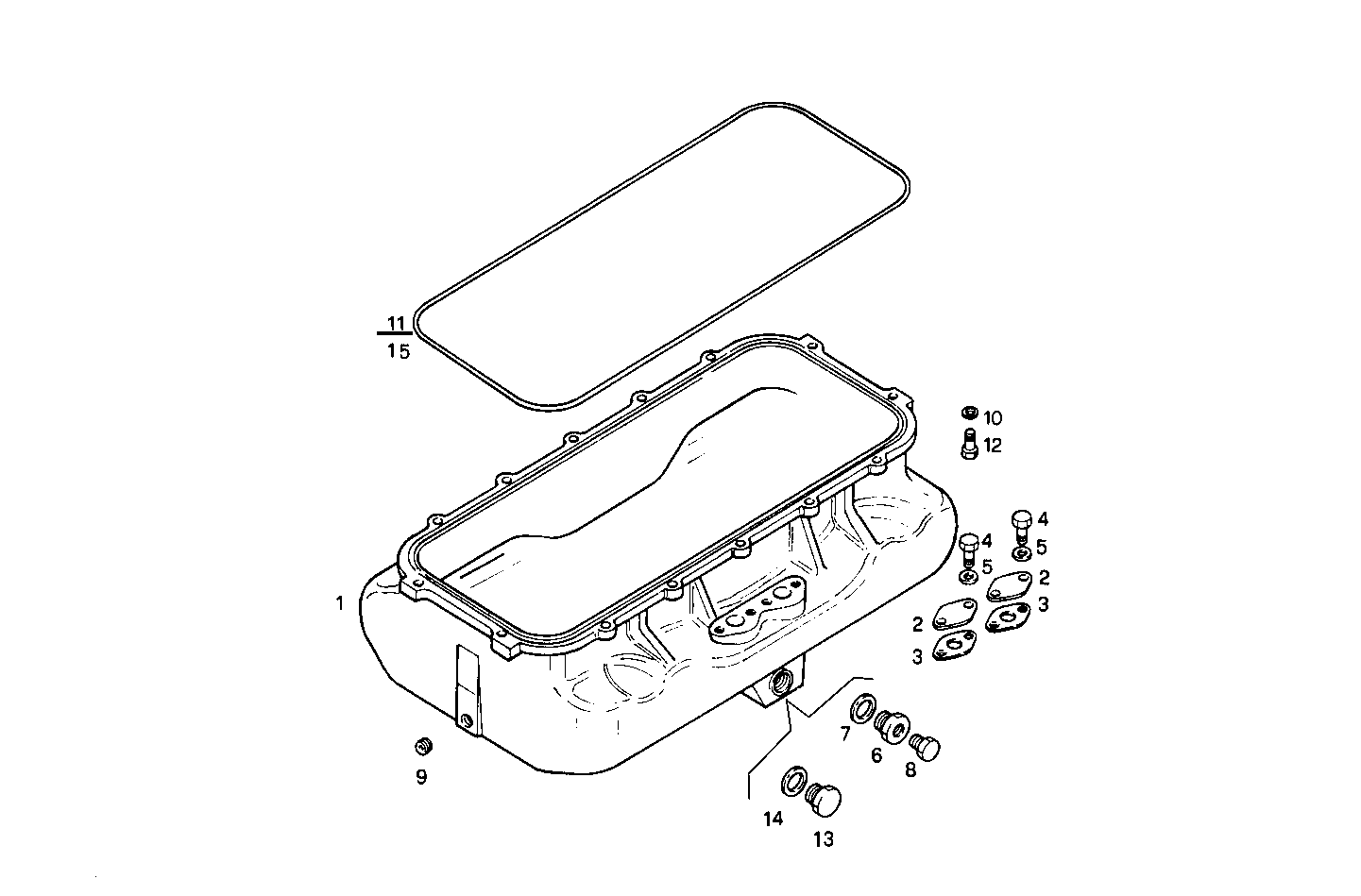

0420.154 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 8030225 | OIL SUMP |
| 2 | 8100113 | FLANGE |
| 3 | 4863361 | GASKET |
| 4 | 16605524 | HEXAGON BOLT M8X20 MM |
| 5 | 17088474 | WASHER Ø6X12 MM |
| 6 | 4651001 | BUSH M30X1,5/M22X1,5 |
| 7 | 10303460 | SEAL GASKET Ø30x36x1,5 MM |
| 8 | 16998540 | PLUG M22X1,5 |
| 9 | 16997711 | LOCK PLUG M22X1,5 |
| 10 | 17095114 | WASHER Ø10X21 MM |
| 11 | 8030436 | OIL SUMP GASKET |
| 12 | 16607724 | HEXAGON BOLT M10X1,5X30 MM (8.8) |
| 13 | 16993011 | THREADED PLUG M30X1,5 |
| 14 | 99434480 | SEAL GASKET Ø30X40 MM |
| 15 | 8034565 | OIL SUMP GASKET |
