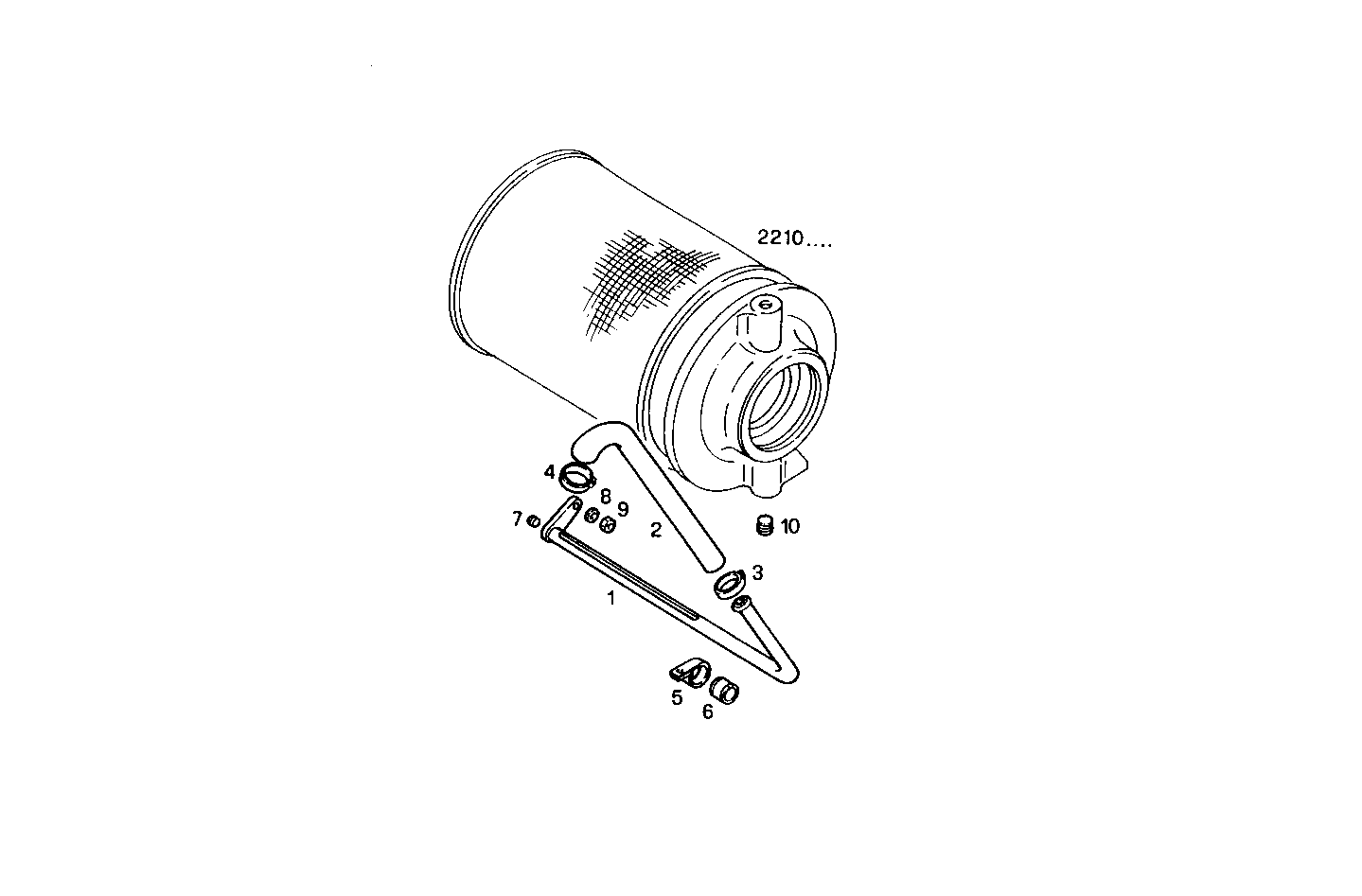

0450.170/02 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 8031980 | BREATHER PIPE |
| 2 | 8031044 | HOSE |
| 3 | 17764593 | CLIP Ø20/32 MM |
| 4 | 17764693 | CLIP Ø25/40 MM |
| 5 | 4810595 | FASTENING BRACKET |
| 6 | 4747140 | RUBBER PAD |
| 7 | 17318650 | PLUG M10X1,25 |
| 8 | 17088674 | WASHER Ø6X15X1,5 MM |
| 9 | 17037821 | HEXAGON NUT M6X1 |
| 10 | 16994850 | PLUG |
