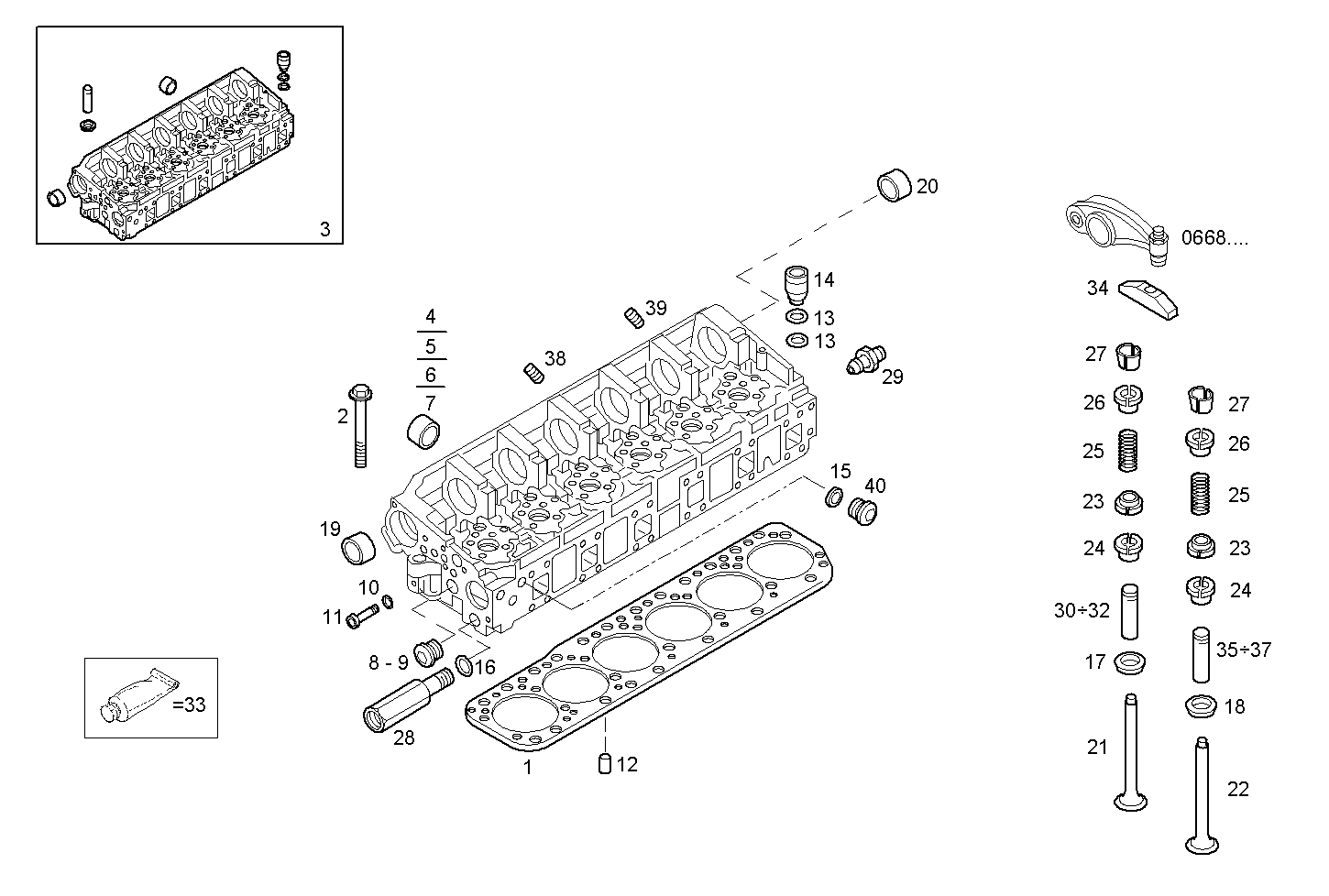

| Item |
Part number |
Description |
|
1 |
500382172 |
CYL.HEAD GASKET |
|
2 |
500354580 |
HEXAGON BOLT M16X2X170 MM |
|
3 |
504025414 |
CYLINDER HEAD ASSY |
|
4 |
16990870 |
LOCK PLUG Ø28 MM |
|
5 |
16991370 |
LOCK PLUG Ø45 MM |
|
6 |
16990570 |
LOCK PLUG Ø20 MM |
|
7 |
16990770 |
LOCK PLUG Ø25 MM |
|
8 |
98472270 |
THREADED PLUG |
|
9 |
98472271 |
THREADED PLUG |
|
10 |
99489018 |
SEAL GASKET Ø14X22 MM SP=1,5 MM |
|
11 |
16993911 |
LOCK PLUG M14X1,5 |
|
12 |
500314967 |
DOWEL PIN Ø10 MM |
|
13 |
17278881 |
O-RING Ø23,5 MM SP=1,7 MM |
|
14 |
99461442 |
NOZZLE HOLDER SEAT |
|
15 |
99489019 |
WASHER Ø16X24 MM SP=1,5 MM |
|
16 |
98474308 |
SEAL GASKET Ø14X22 MM |
|
17 |
99456802 |
VALVE SEAT STD. INTAKE |
|
18 |
99447343 |
VALVE SEAT STD. EXHAUST |
|
19 |
99440675 |
BUSH |
|
20 |
500306966 |
BUSH |
|
21 |
500354685 |
INLET VALVE |
|
22 |
500354687 |
EXHAUST VALVE |
|
23 |
99444425 |
SPRING CAP BOTTOM |
|
24 |
40101573 |
CAP |
|
25 |
98483264 |
ENGINE VALV.SPRING |
|
26 |
98471361 |
SPRING CAP TOP |
|
27 |
98499819 |
VALVE CONE |
|
28 |
500328252 |
PIPE SOCKET |
|
29 |
500304562 |
BREATHER PLUG |
|
30 |
500391440 |
VALVE GUIDE INTAKE |
|
31 |
500391441 |
VALVE GUIDE +0,2 INTAKE |
|
32 |
500391442 |
VALVE GUIDE +0,4 INTAKE |
|
33 |
93162429 |
ADHESIVE/STICKER LOCTITE |
|
34 |
500387999 |
VALVE BRIDGE |
|
35 |
500391436 |
VALVE GUIDE EXHAUST |
|
36 |
500391437 |
VALVE GUIDE +0,2 EXHAUST |
|
37 |
500391438 |
VALVE GUIDE +0,4 EXHAUST |
|
38 |
16997211 |
LOCK PLUG M12X1,5 |
|
39 |
16997411 |
THREADED PLUG M16X1,5 |
|
40 |
16992411 |
THREADED PLUG M16X1,5 |
