C78ENTM50.10

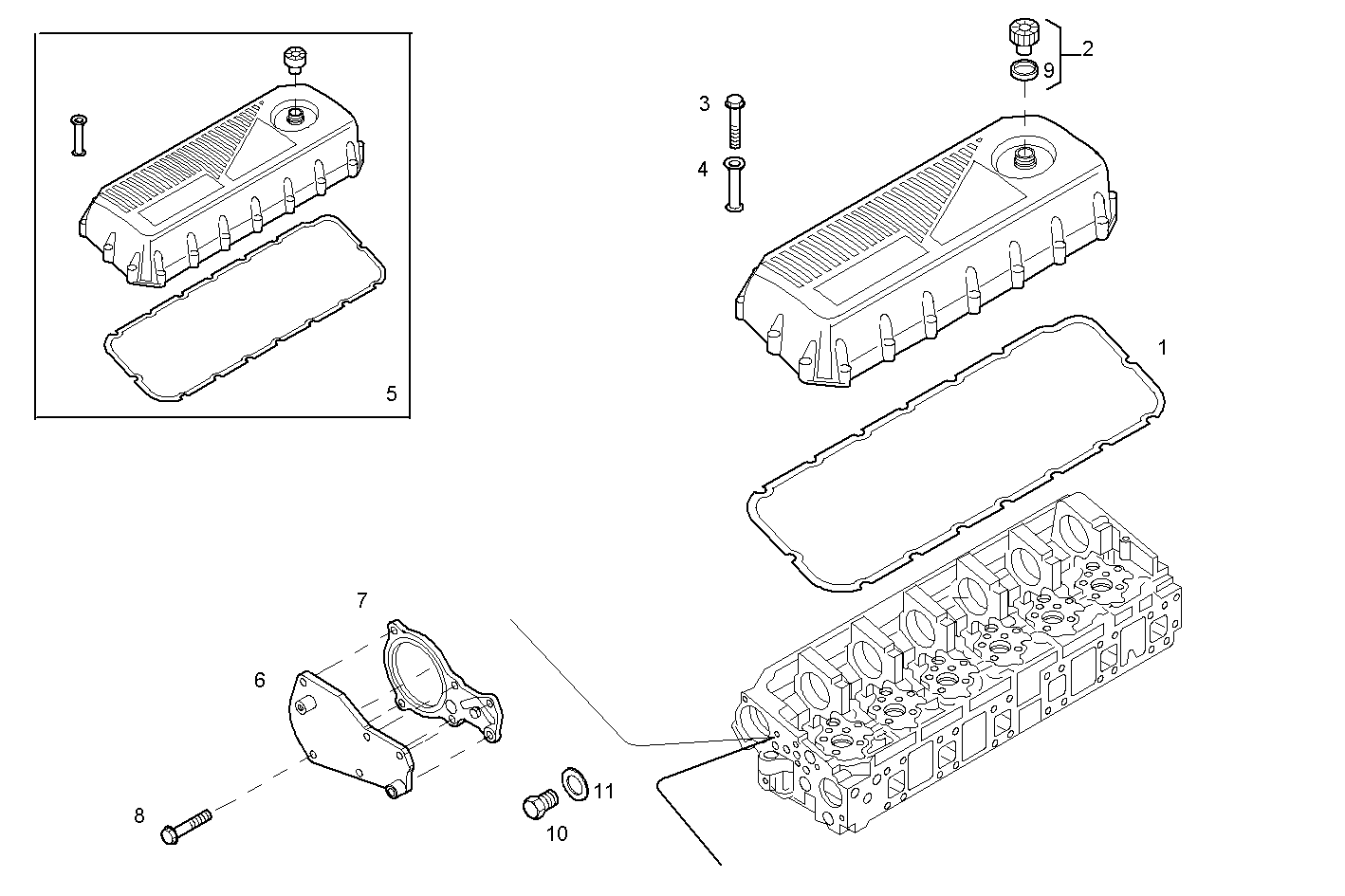

0600.168/03 CYLINDER HEAD
| Item | Part number | Description |
|---|---|---|
| 1 | 99446692 | HEAD COVER GASKET |
| 2 | 98442027 | OIL FILLER PLUG ASSY |
| 3 | 16591924 | HEXAGON BOLT M6X50 MM |
| 4 | 99446693 | SPACER BUSH |
| 5 | 500354345 | CYL. HEAD COVER ASSY |
| 6 | 500327986 | COVER |
| 7 | 99450932 | FLAT ENGINE GASKET |
| 8 | 16586224 | HEXAGON BOLT M8X1,25X16 MM |
| 9 | 98412146 | GASKET |
| 10 | 500337974 | PIPE SOCKET M10X1,5 |
| 11 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
