C78ENTM50.10

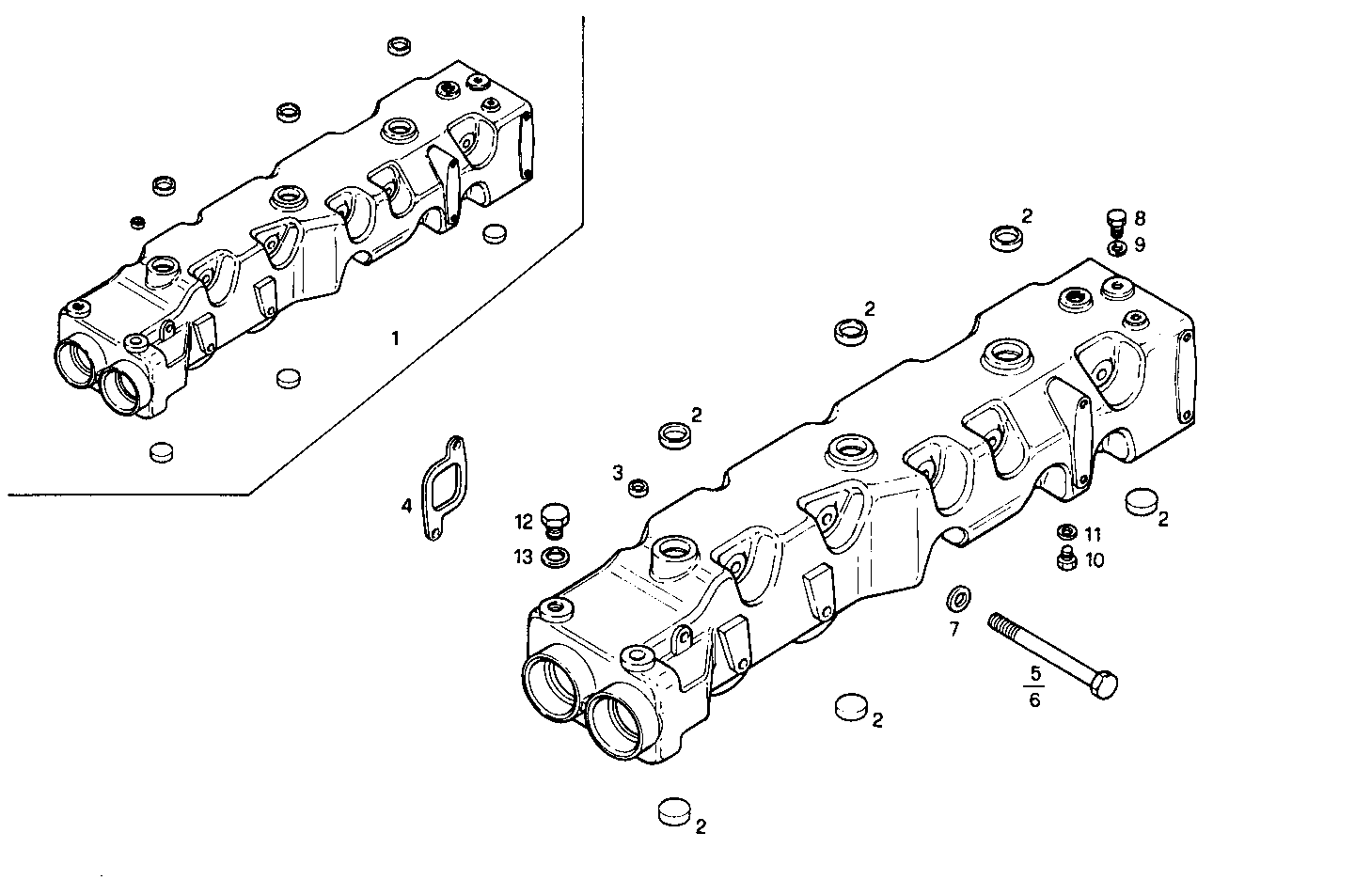

0760.137 EXHAUST MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 8030392 | COOLED EXHAUST MANIF. ASSY |
| 2 | 16991170 | LOCK PLUG Ø36 MM |
| 3 | 16990570 | LOCK PLUG Ø20 MM |
| 4 | 8030393 | EXH. MANIFOLD GKT |
| 5 | 16629234 | SCREW M10X1,5X150 |
| 6 | 16629034 | HEXAGON BOLT M10X130 MM |
| 7 | 17090274 | WASHER Ø10X20 MM |
| 8 | 16992240 | THREADED PLUG M12X1,5 |
| 9 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 10 | 16992340 | THREADED PLUG M14X1,5 |
| 11 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 12 | 16992640 | PLUG M22X1,5 |
| 13 | 10263460 | WASHER Ø22X28X1,5 MM |
