C78ENTM50.10

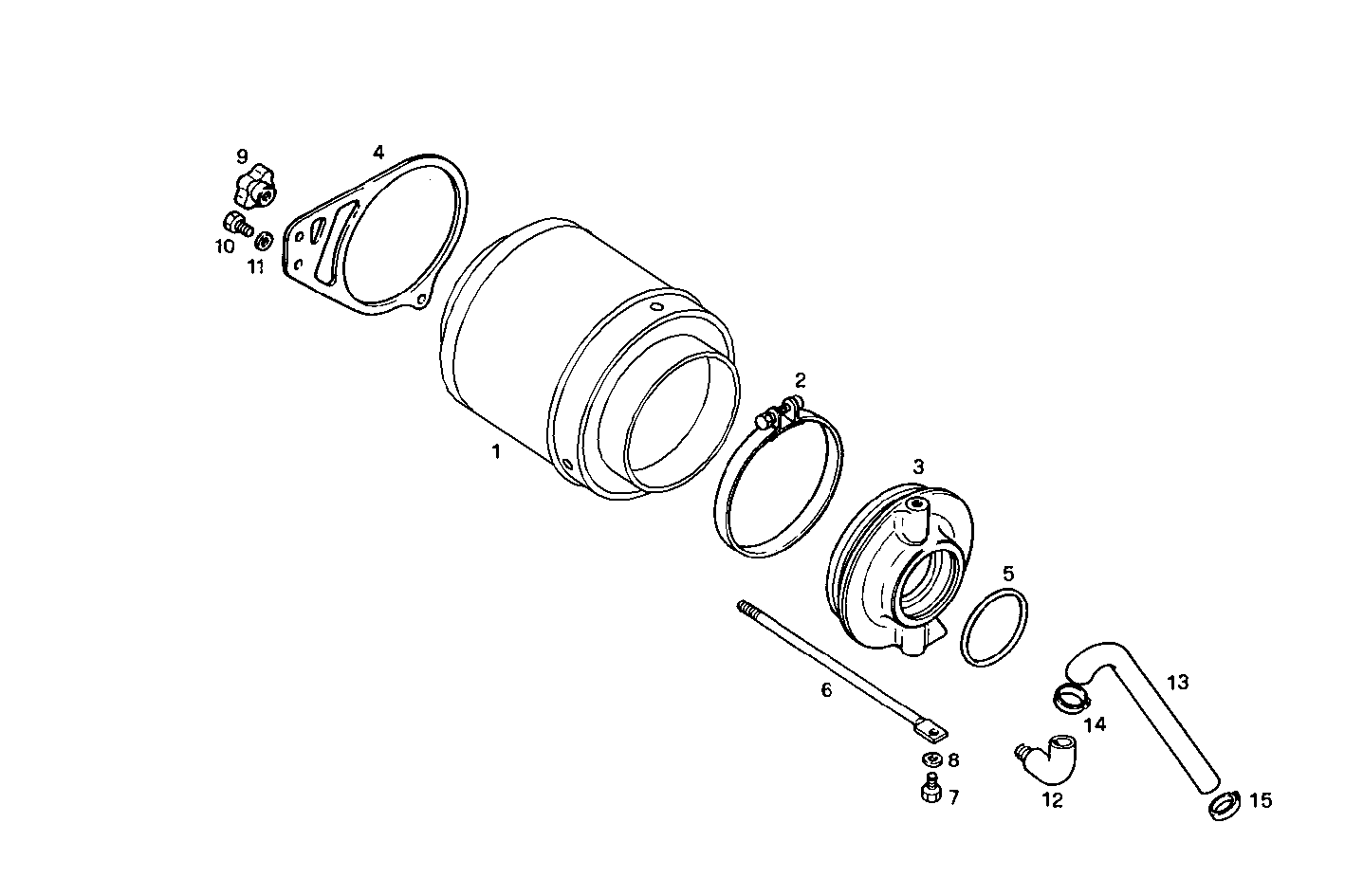

2210.047 AIR CLEANER
| Item | Part number | Description |
|---|---|---|
| 1 | 8032406 | AIR CLEANER ASSY |
| 2 | 8017374 | CLIP |
| 3 | 8031945 | AIR MANIFOLD |
| 4 | 8030489 | RETAINER |
| 5 | 17291681 | O-RING Ø107,54X3,53 MM |
| 6 | 8030567 | TIE ROD |
| 7 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 8 | 17088674 | WASHER Ø6X15X1,5 MM |
| 9 | 8030569 | HANDWHEEL M6X1 |
| 10 | 16605524 | HEXAGON BOLT M8X20 MM |
| 11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 12 | 4527314 | PIPE SOCKET |
| 13 | 8031044 | HOSE |
| 14 | 17764693 | CLIP Ø25/40 MM |
| 15 | 17764593 | CLIP Ø20/32 MM |
