C78ENTM50.10

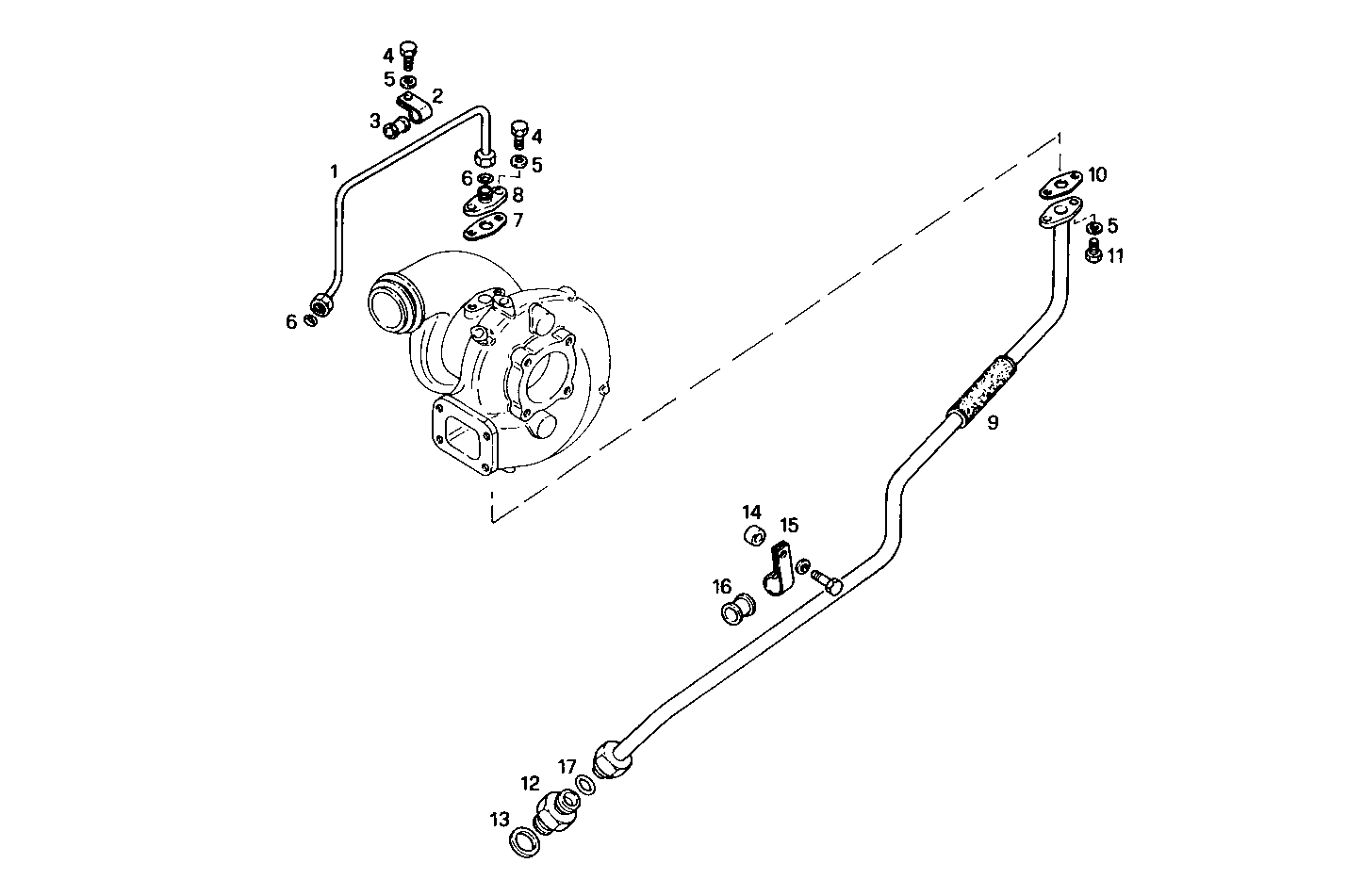

2400.157/02 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8030754 | OIL LINE |
| 2 | 4755963 | FASTENING BRACKET |
| 3 | 4755964 | RUBBER PAD |
| 4 | 16605424 | SCREW M8X16 MM (8.8) |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 6 | 8024647 | GASKET Ø8 MM |
| 7 | 98415922 | FLAT ENGINE GASKET |
| 8 | 4764795 | THREADED UNION |
| 9 | 8030755 | OIL LINE |
| 10 | 98412509 | FLAT ENGINE GASKET |
| 11 | 16605524 | HEXAGON BOLT M8X20 MM |
| 12 | 8031297 | THREADED UNION |
| 13 | 18064760 | GASKET Ø30X36 MM |
| 14 | 17816314 | SPACING BAR Ø8,5X18 MM SP=15 MM |
| 15 | 4810595 | FASTENING BRACKET |
| 16 | 4747140 | RUBBER PAD |
| 17 | 8024652 | O-RING Ø15 MM |
