C78ENTM50.10

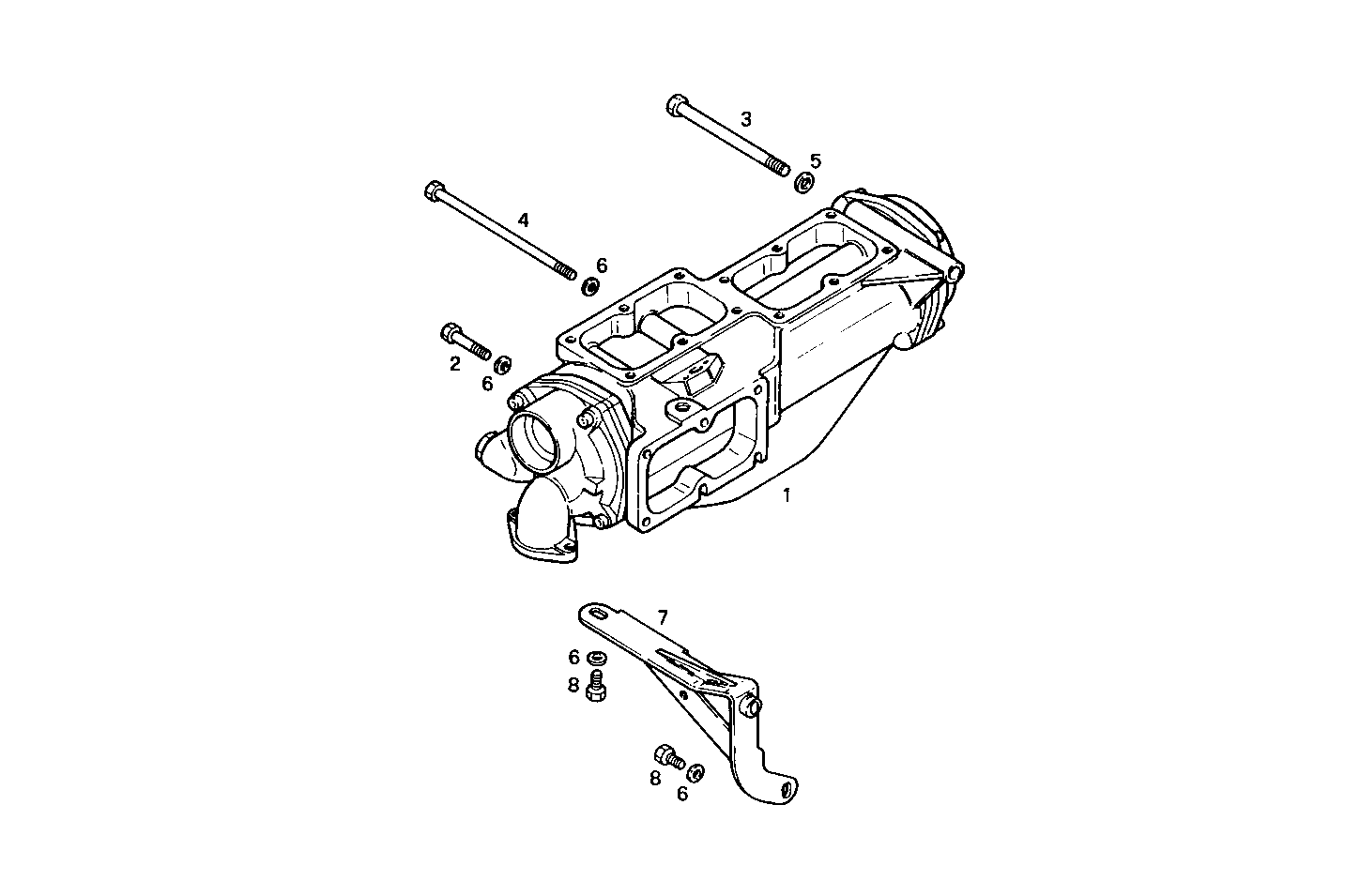

2460.040/01 AIR - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8028905 | AIR/WATER HEAT EXCHANGER ASSY |
| 2 | 16607824 | HEXAGON BOLT M10X35 MM (8.8) |
| 3 | 16611624 | SCREW M12X160 |
| 4 | 8030482 | SCREW M10X210 |
| 5 | 17091074 | WASHER Ø12X24X2,8 MM |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 8031103 | RETAINER |
| 8 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
