C78ENTM50.10

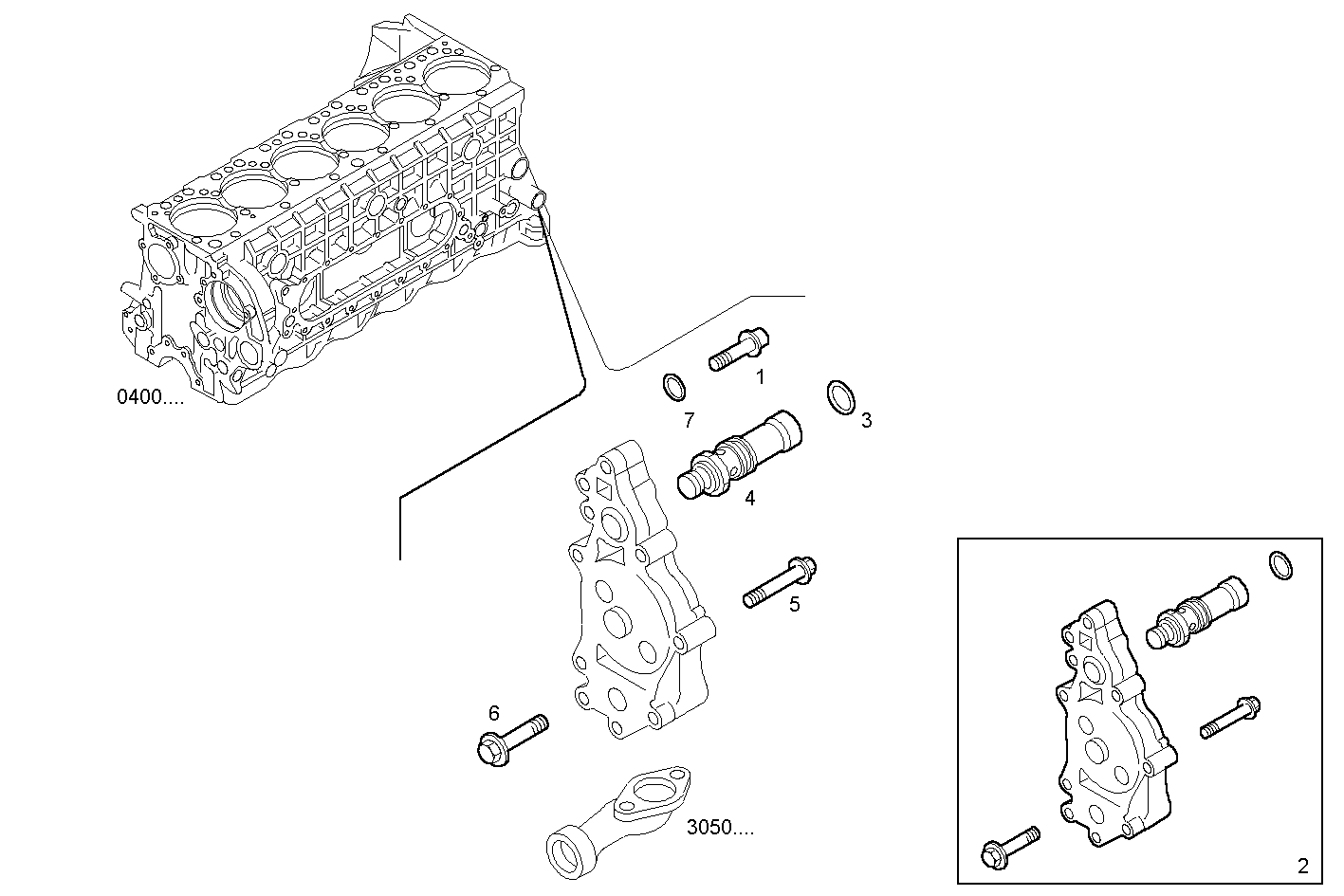

3000.048 OIL PUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 500365363 | SCREW |
| 2 | 99482251 | LUBE OIL PUMP ASSY |
| 3 | 17282181 | O-RING Ø21,8 MM SP=2,6 MM |
| 4 | 500304389 | SAFETY VALVE |
| 5 | 16591724 | SCREW M6X40 MM |
| 6 | 16585724 | HEXAGON BOLT M6X16 MM |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
