C78ENTM50.10

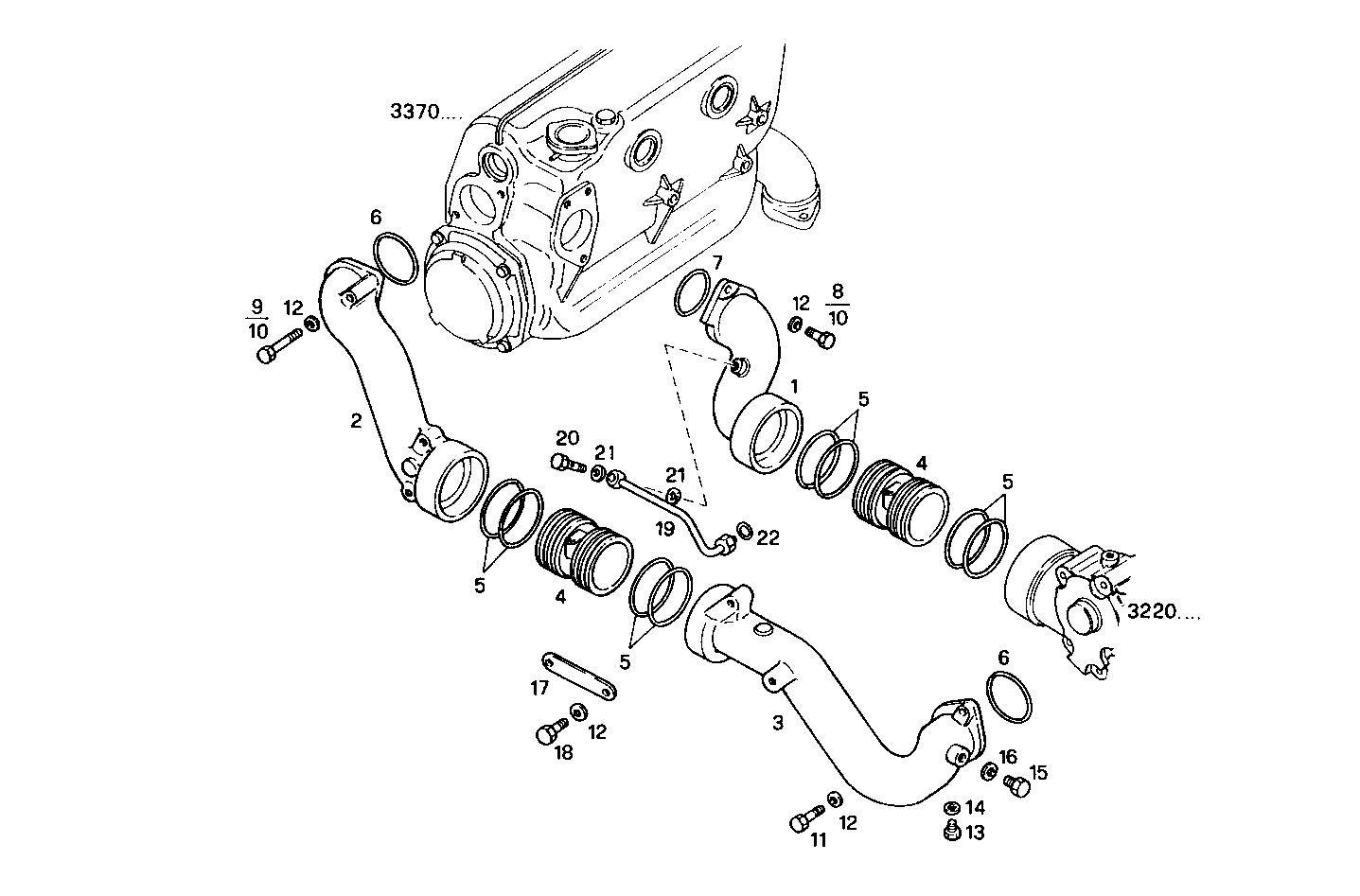

3210.236/01 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8029597 WATER PIPE
2 8030461 WATER PIPE
3 8030462 WATER PIPE
4 8025307 WATER PIPE
5 17290581 O-RING Ø72,63X3,53 MM
6 17290381 O-RING Ø66,27 MM SP=3,53 MM
7 17290081 O-RING Ø56,74 MM SP=3,53 MM
8 16606724 HEXAGON BOLT M8X90 MM
9 16606624 HEXAGON BOLT M8X80 MM
10 16605624 HEXAGON BOLT M8X25 MM (8.8)
11 16606124 HEXAGON BOLT M8X50 MM
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 16992240 THREADED PLUG M12X1,5
14 99489017 SEAL GASKET Ø12X20 MM SP=1,5 MM
15 16992440 THREADED PLUG M16X1,5
16 99489019 WASHER Ø16X24 MM SP=1,5 MM
17 8030509 RETAINER
18 16605424 SCREW M8X16 MM (8.8)
19 8030718 CONNECTION PIPE
20 4864083 SCREW CONNECTOR M14X1,5X30 MM
21 98474308 SEAL GASKET Ø14X22 MM
22 8024646 O-RING Ø6 MM
