C78ENTM50.10

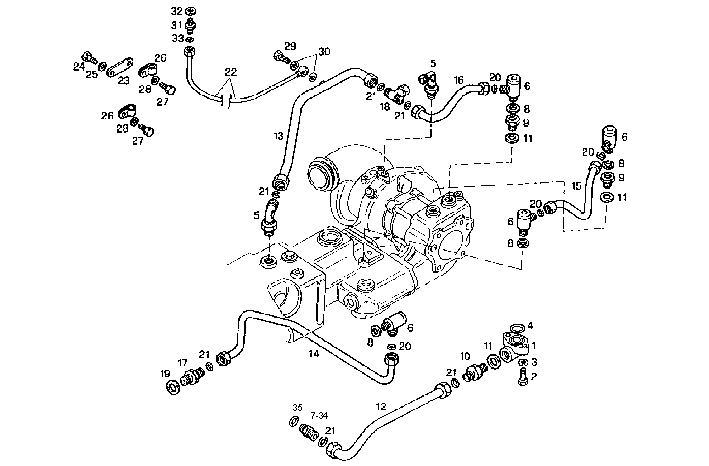

3210.236/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8031032 FLANGED SOCKET
2 16604024 HEXAGON BOLT M6X35 MM
3 17088474 WASHER Ø6X12 MM
4 17282381 O-RING Ø25,07 MM SP=2,62 MM
5 98433191 PIPE SOCKET [from 07-92]
6 8030711 PIPE SOCKET M18X1,5/M16X1,5
7 8030710 PIPE SOCKET M26/1/2"G [UP TO 05-11-04]
8 98474309 WASHER Ø16X24 MM SP=1,9 MM
9 16500511 THREADED UNION
10 4935200 PIPE SOCKET M22X1,5/M16X1,5
11 17750985 WASHER Ø22X28X1,5 MM
12 8031214 WATER PIPE
13 8031347 WATER PIPE
14 8031335 WATER PIPE [FROM 10-00]
15 8031333 WATER PIPE
16 8031334 WATER PIPE
17 16500311 PIPE SOCKET M16X1,5/M18X1,5
18 16581211 T-COUPLING
19 4858609 WASHER Ø16X22 MM SP=1,5 MM
20 8024647 GASKET Ø8 MM
21 8024650 O-RING Ø13 MM
22 8030763 WATER PIPE
23 8031849 RETAINER
24 16605424 SCREW M8X16 MM (8.8)
25 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
26 17314790 FASTENING BRACKET Ø8 MM
27 16603424 SCREW M6X10
28 17800374 SPRING WASHER Ø6X12 MM
29 4864081 SCREW CONNECTOR
30 98474305 WASHER Ø10X17 MM SP=2,3
31 16500111 THREADED UNION
32 4858607 WASHER Ø12X17 MM SP=1,5 MM
33 8024645 O-RING Ø4 MM
35 99489022 SEAL GASKET Ø22X30 MM SP=1,5 MM
