C78ENTM50.10

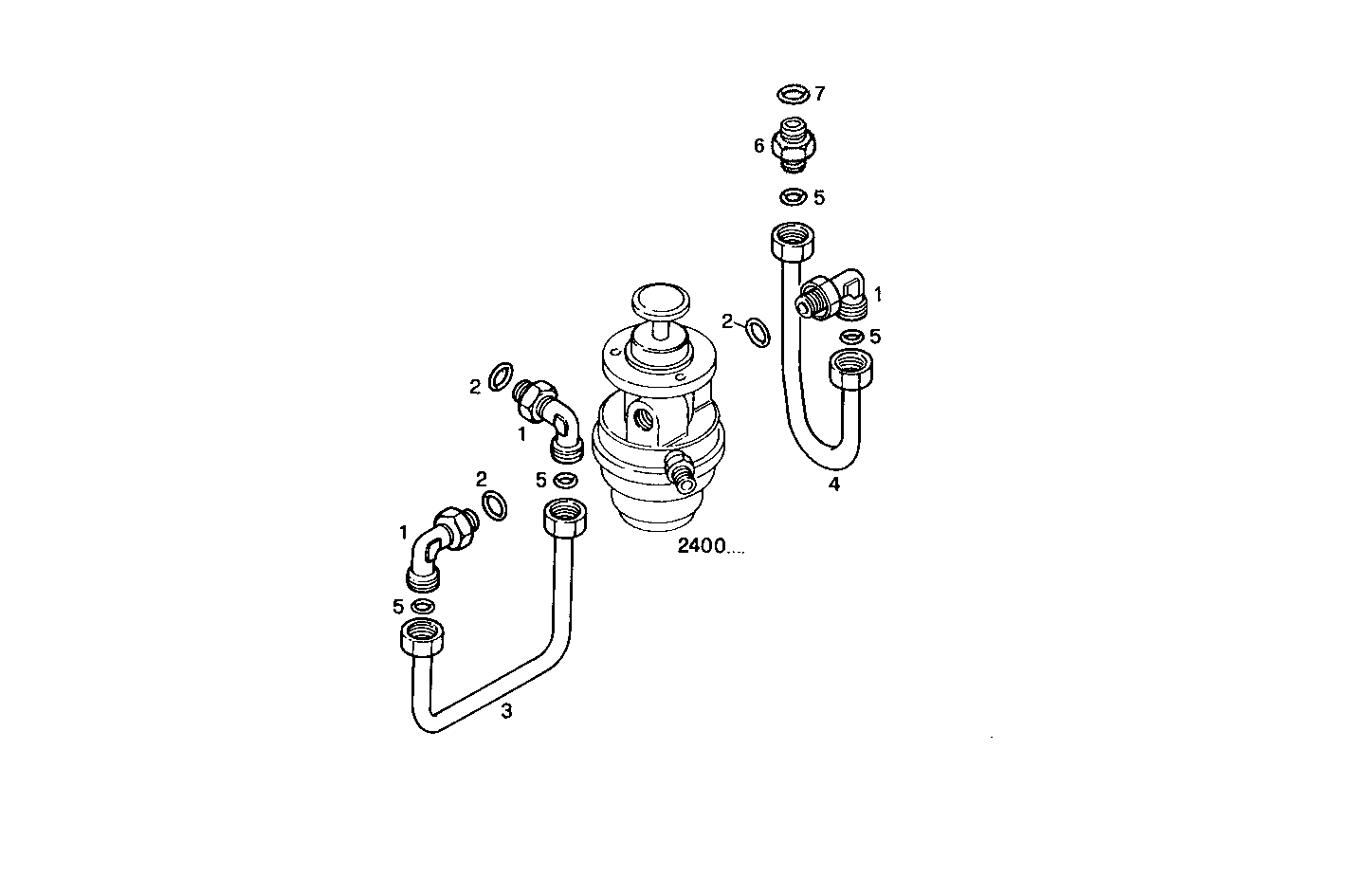

3210.236/03 WATER LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8025927 | ELBOW COUPLING |
| 2 | 98474308 | SEAL GASKET Ø14X22 MM |
| 3 | 8031336 | WATER PIPE |
| 4 | 8031337 | WATER PIPE |
| 5 | 8024646 | O-RING Ø6 MM |
| 6 | 41905554 | PIPE SOCKET M14X1,5 - M16X1,5 |
| 7 | 99489018 | SEAL GASKET Ø14X22 MM SP=1,5 MM |
