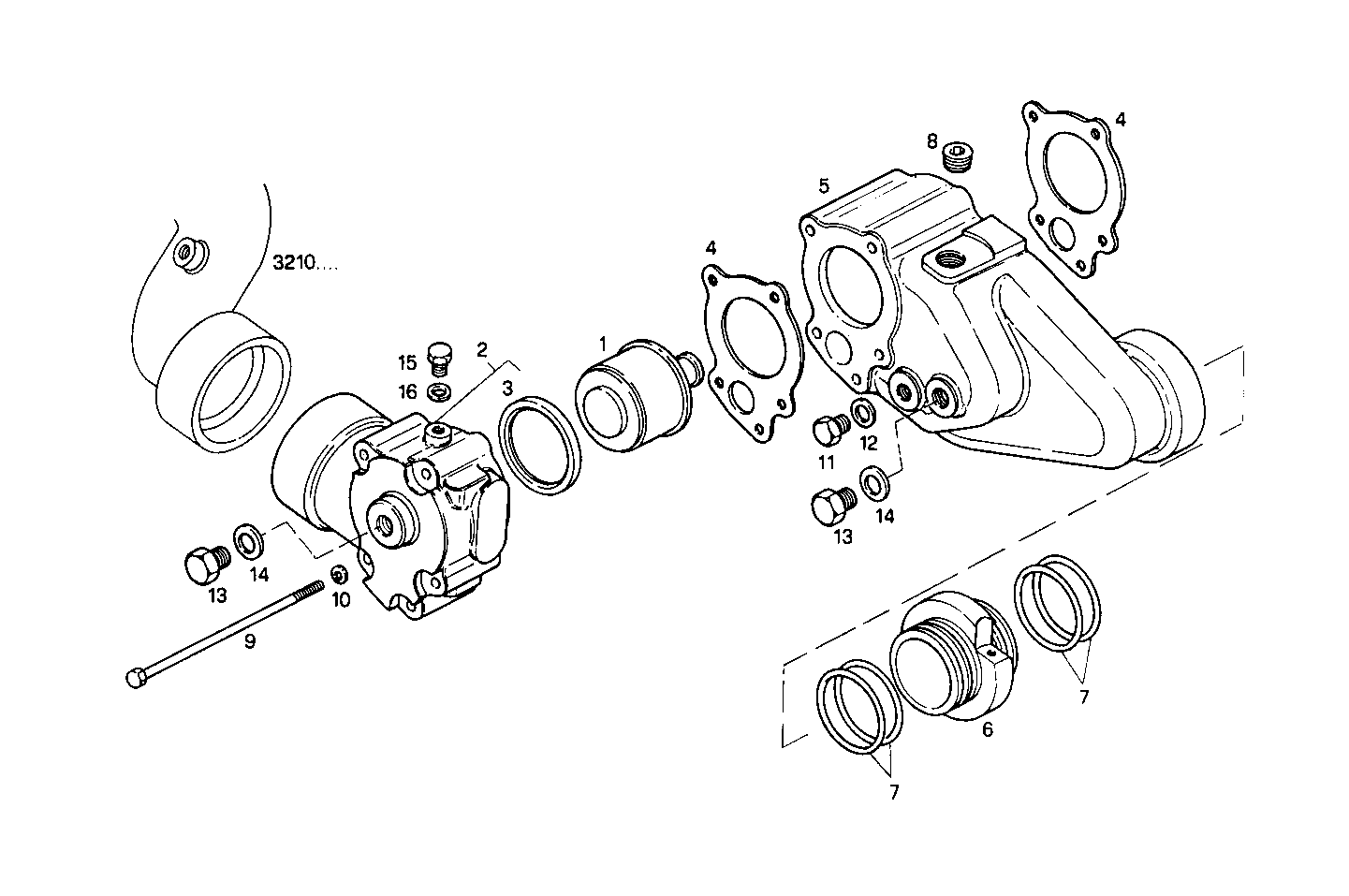

| Item |
Part number |
Description |
|
1 |
8032239 |
THERMOSTAT |
|
2 |
8030463 |
THERM.BODY COVER ASSY |
|
3 |
98451661 |
WASHER Ø57,7X67,5 MM |
|
4 |
99443426 |
FLAT ENGINE GASKET |
|
5 |
8029589 |
THERMOSTAT BODY |
|
6 |
8028161 |
SPACING BAR |
|
7 |
17290181 |
O-RING Ø59,92 MM SP=3,53 MM |
|
8 |
99430692 |
THREADED PLUG 1/2'' |
|
9 |
16607124 |
HEXAGON BOLT M8X1,25X170 MM |
|
10 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
11 |
16992340 |
THREADED PLUG M14X1,5 |
|
12 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
13 |
16992240 |
THREADED PLUG M12X1,5 |
|
14 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
15 |
16992111 |
THREADED PLUG M10X1 |
|
16 |
4858606 |
GASKET Ø10X14X1 MM |
