C78ENTM50.10

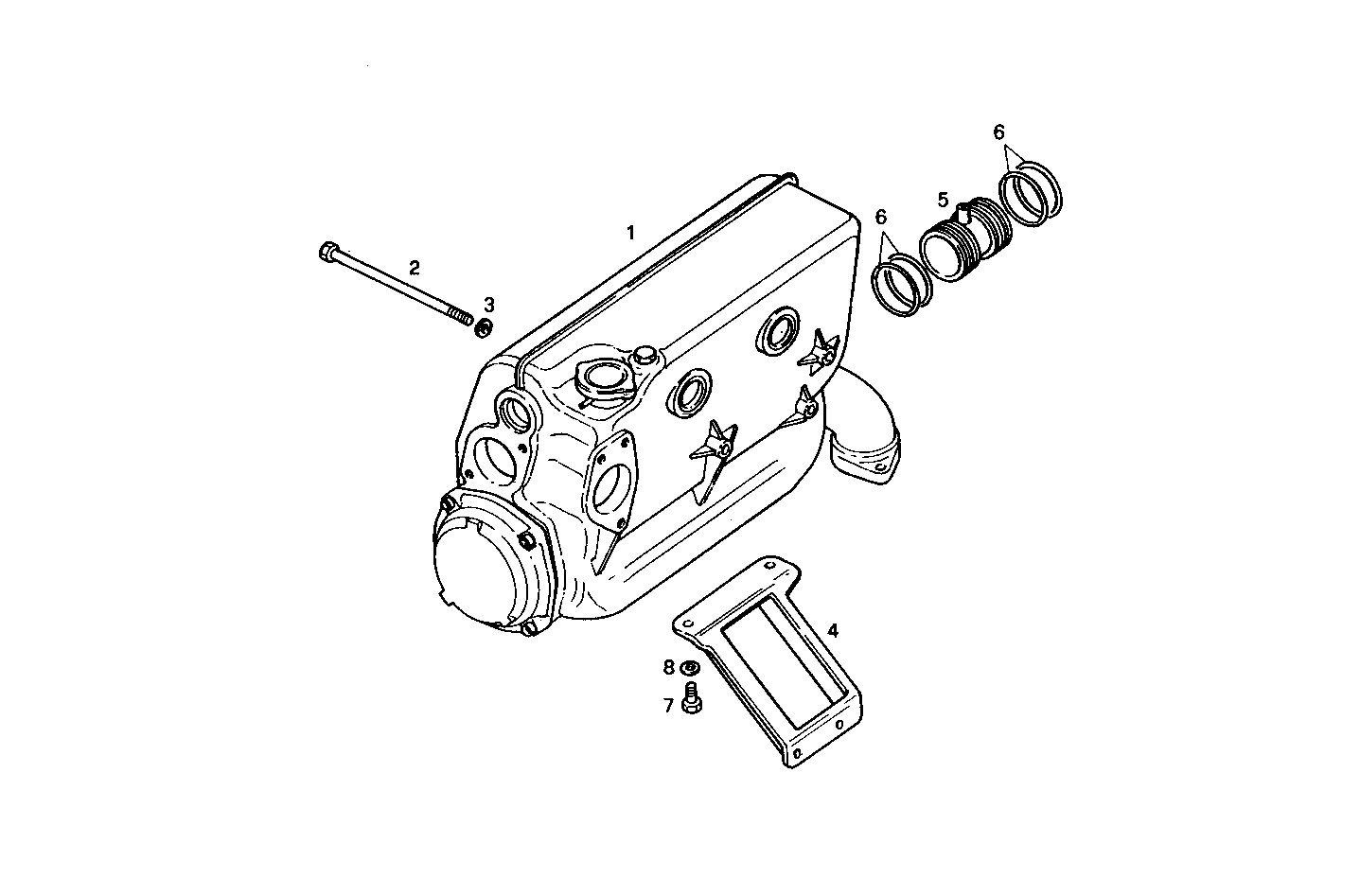

3370.040/01 FRESH WATER - SEA WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8028906 | WATER/SEA WATER HEAT EXCH ASSY |
| 2 | 8030913 | SCREW M8X1,25X200 |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 8029420 | RETAINER |
| 5 | 8029811 | SPACING BAR |
| 6 | 17289981 | O-RING Ø53,57X3,53 MM |
| 7 | 16607724 | HEXAGON BOLT M10X1,5X30 MM (8.8) |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
