C78ENTM50.10

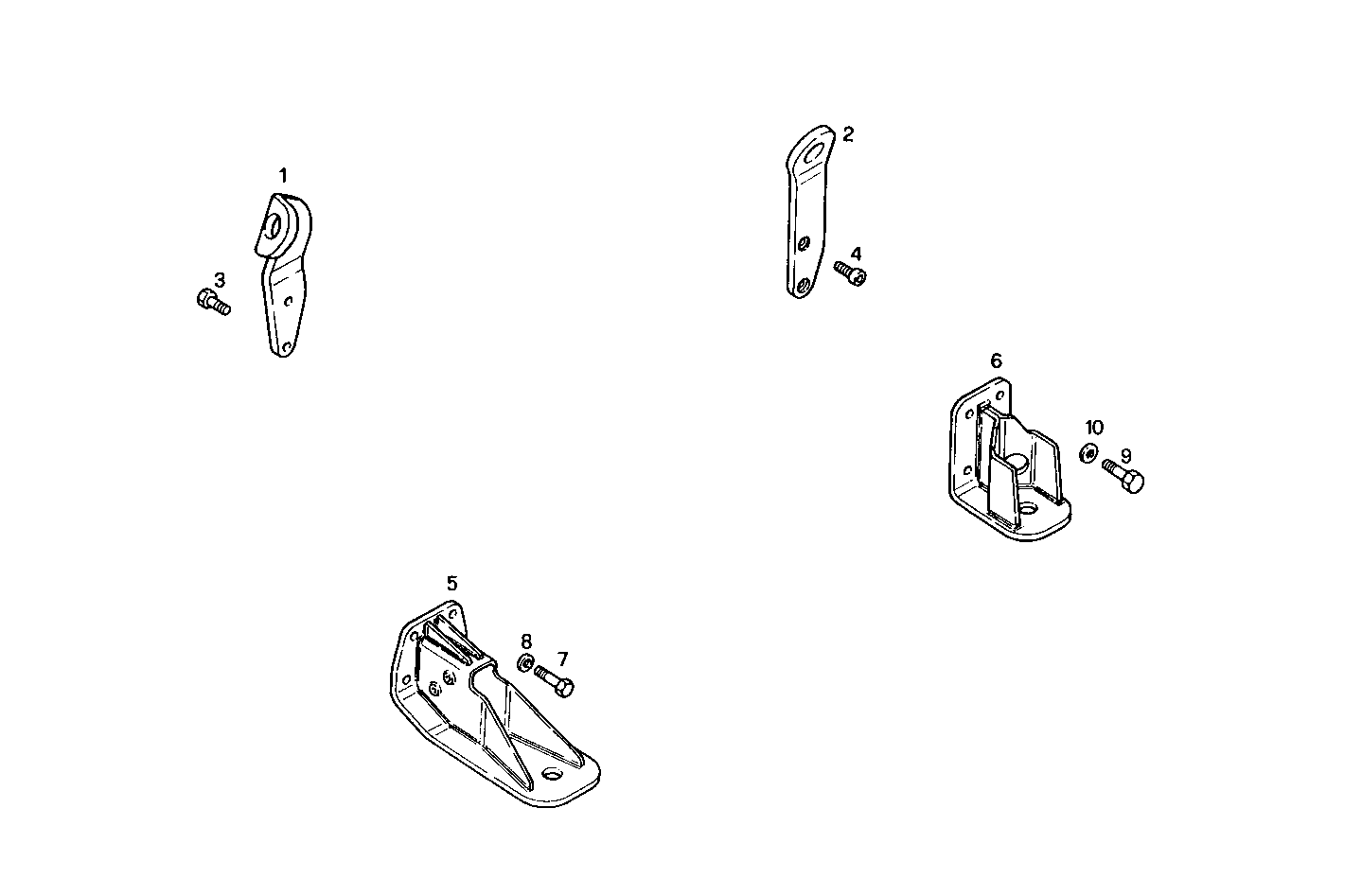

4500.126 ENGINE SUSPENSION
| Item | Part number | Description |
|---|---|---|
| 1 | 8031596 | HOOK FRONT |
| 2 | 8031588 | HOOK REAR |
| 3 | 16677735 | HEXAGON BOLT M12X25 MM |
| 4 | 8033214 | SOCKET-HEAD SCREW |
| 5 | 8030359 | SUPPORT FRONT |
| 6 | 8030307 | SUPPORT REAR |
| 7 | 16612324 | HEXAGON BOLT M14X35 MM |
| 8 | 17091674 | WASHER Ø14X27X3,0 MM |
| 9 | 16614524 | HEXAGON BOLT M16X35 MM |
| 10 | 17092174 | SPRING WASHER Ø16X32X3,4 |
