C78ENTM50.10

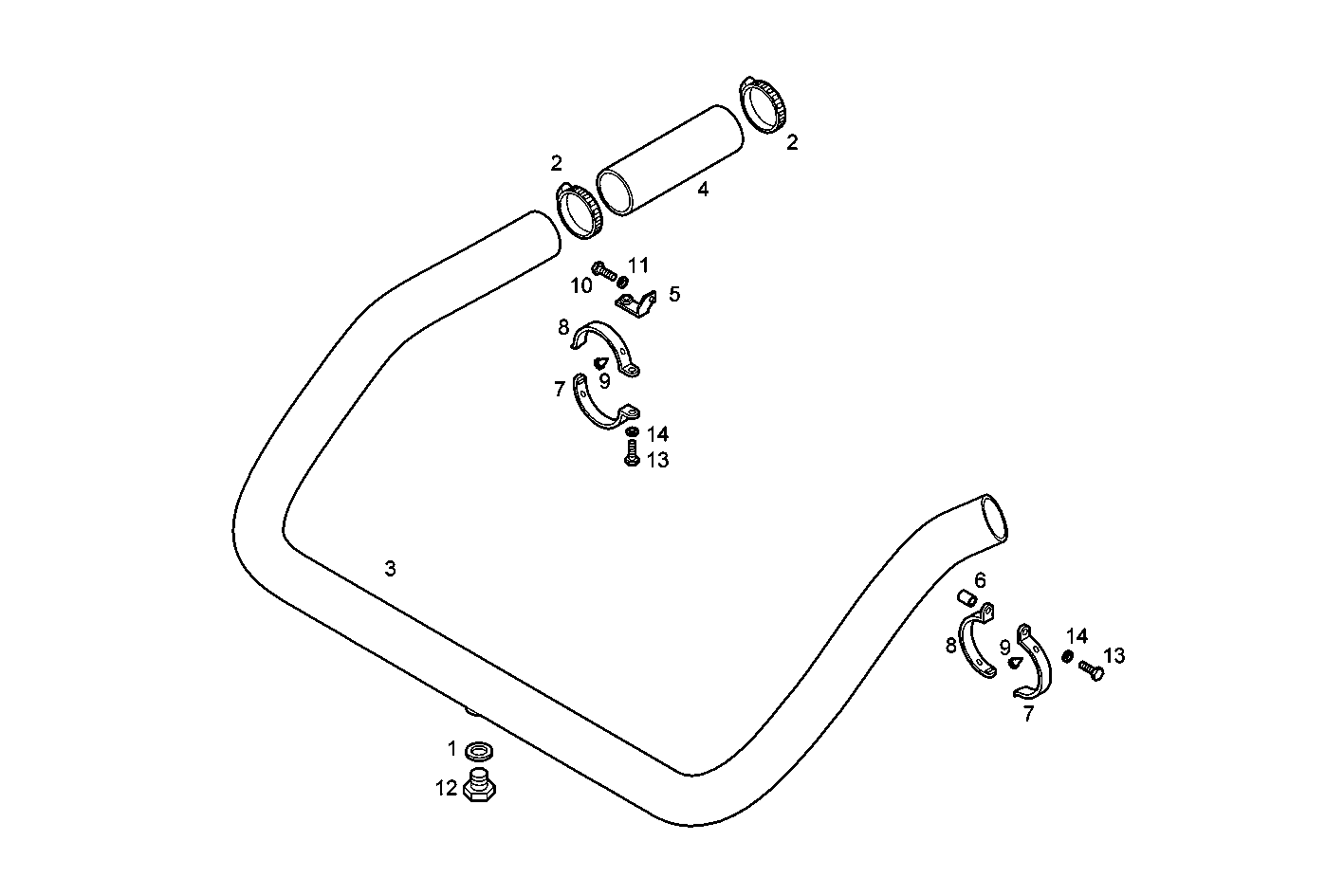

A13108501/02 ARRANGED FOR GEAR MG - 5075A
| Item | Part number | Description |
|---|---|---|
| 1 | 99489016 | SEAL GASKET Ø10X17 MM SP =1,5 |
| 2 | 17764993 | CLIP Ø50/70 MM |
| 3 | 8034327 | PIPE |
| 4 | 4865234 | RUBBER SLEEVE |
| 5 | 8033807 | FASTENING BRACKET |
| 6 | 17816714 | SPACING BAR |
| 7 | 8113295 | CLAMP Ø50 MM |
| 8 | 8113296 | CLAMP Ø50 MM |
| 9 | 1366290 | RUBBER LUG |
| 10 | 16607524 | HEXAGON BOLT M10X1,5X20 MM (8.8) |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
| 12 | 16992140 | PLUG M10X1 |
| 13 | 16605424 | SCREW M8X16 MM (8.8) |
| 14 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
