C78ENTM50.10

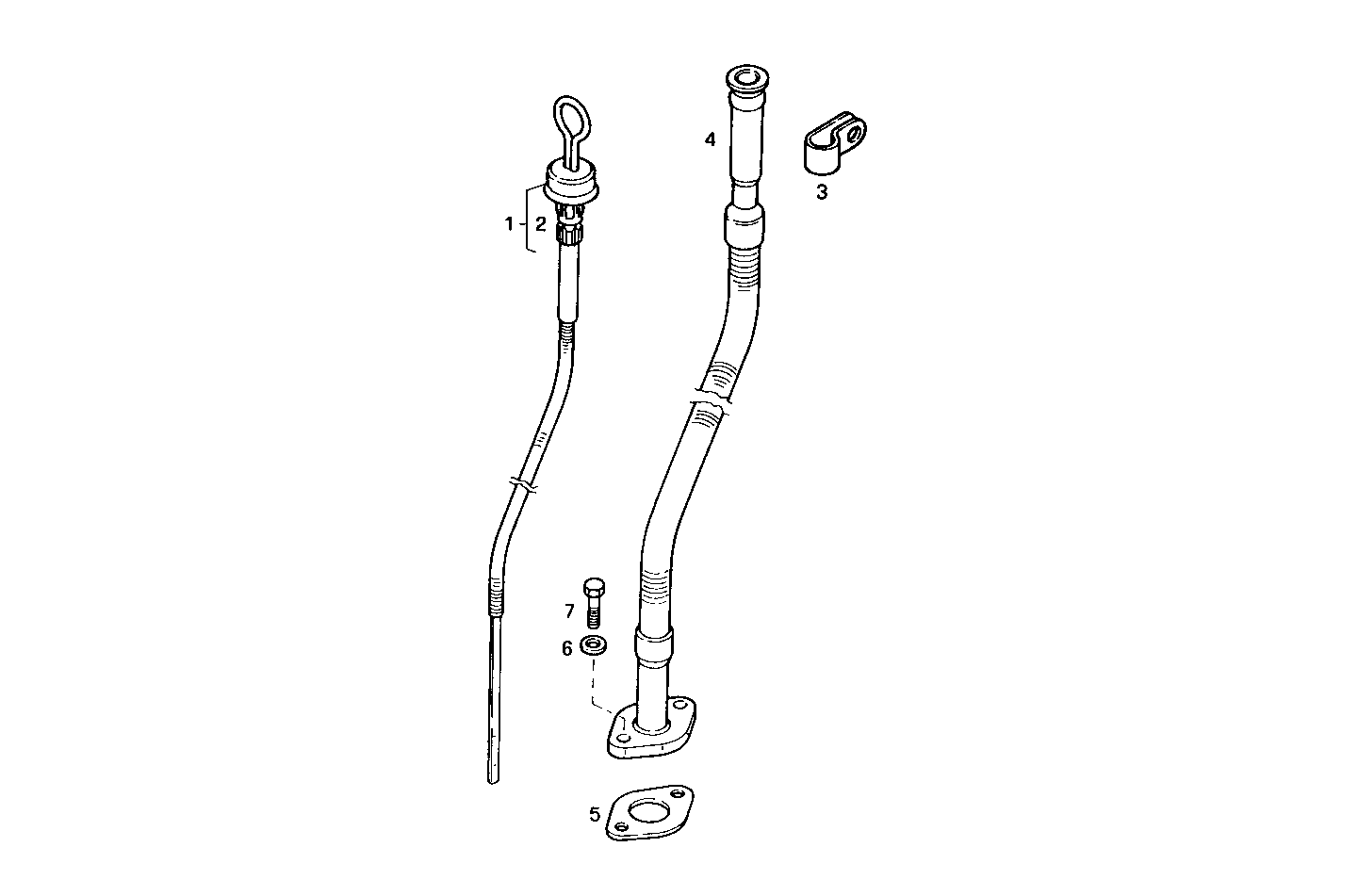

A41020012 OIL DIPSTICK - right side
| Item | Part number | Description |
|---|---|---|
| 1 | 8030477 | OIL DIPSTICK ASSY |
| 2 | 4624702 | GASKET |
| 3 | 8023543 | CLIP |
| 4 | 8030476 | OIL LEVEL TUBE |
| 5 | 4863361 | GASKET |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
