C78ENTM50.10

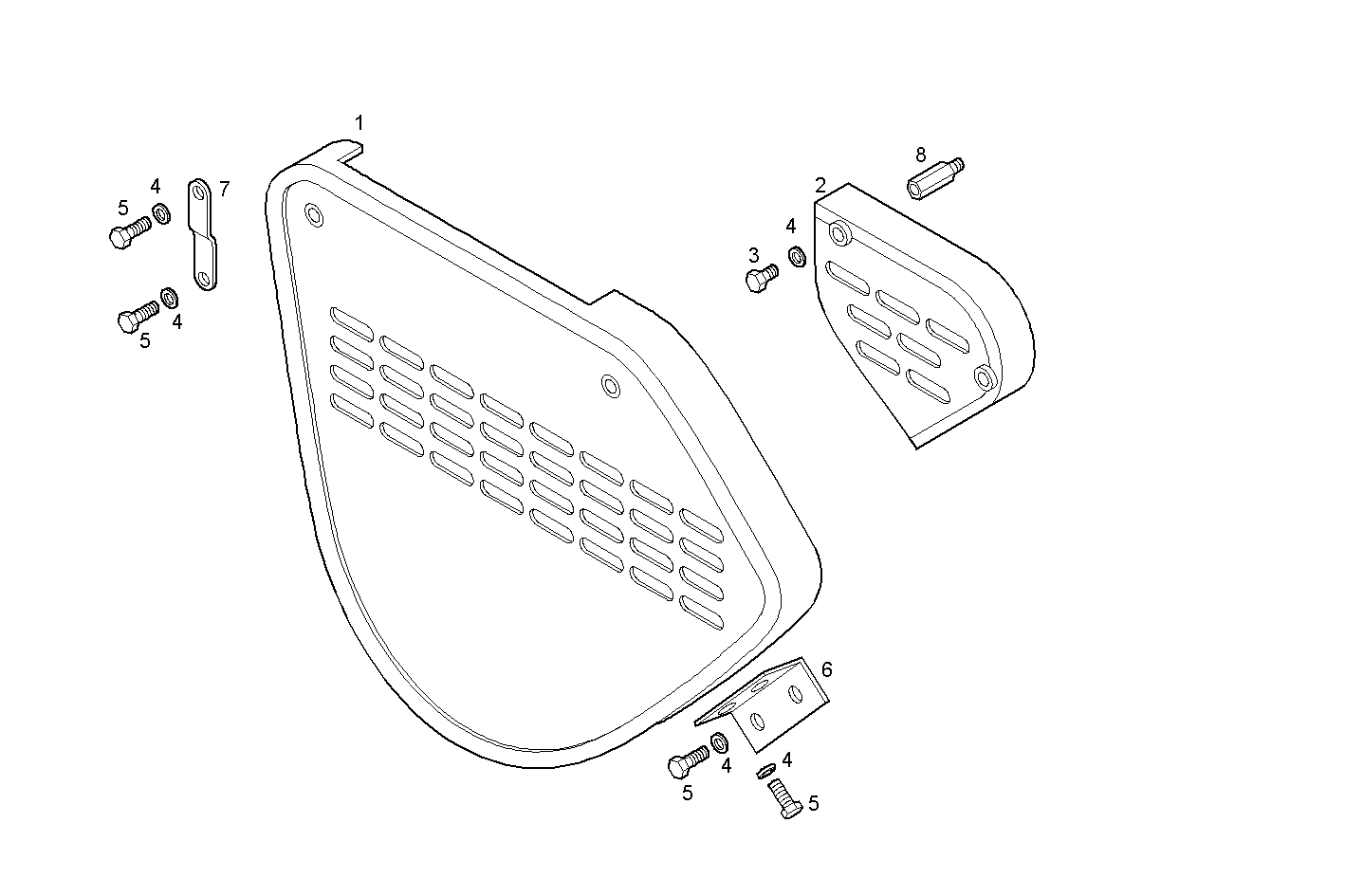

A48020038 SHIELDS - for pulley/belts
| Item | Part number | Description |
|---|---|---|
| 1 | 8030879 | PROTECTION |
| 2 | 8030936 | PROTECTION |
| 3 | 16606424 | HEXAGON BOLT M8X65 MM |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 16605424 | SCREW M8X16 MM (8.8) |
| 6 | 8030995 | RETAINER |
| 7 | 8030996 | RETAINER |
| 8 | 8033833 | SPACING BAR M8 |
