C78ENTM50.10

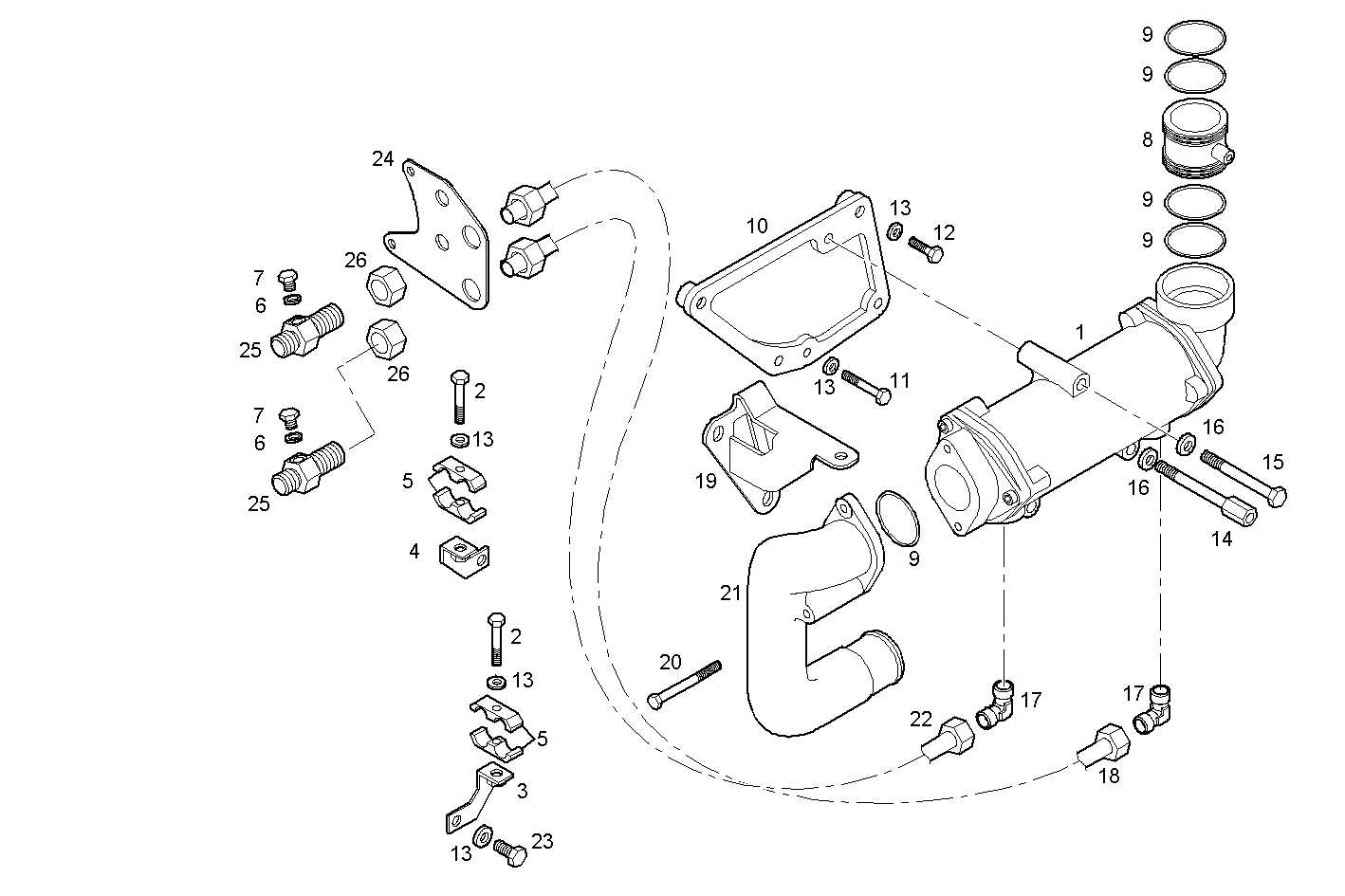

A51108001/2 MARINE GEAR TWIN DISC MG 5075 A

Iveco/FPT MARINE GEAR TWIN DISC MG 5075 A

Item Part number Description
1 8029435 OIL/WATER HEAT EXCHANGER ASSY
2 16605924 SCREW M8X40 MM
3 8032187 RETAINER
4 8033495 RETAINER
5 8010505 CLAMP Ø16 MM
6 4858606 GASKET Ø10X14X1 MM
7 11903140 PLUG M10X1,25
8 8029811 SPACING BAR
9 17289981 O-RING Ø53,57X3,53 MM
10 8030394 RETAINER
11 16606024 SCREW M8X45 MM
12 16605624 HEXAGON BOLT M8X25 MM (8.8)
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 8030473 SCREW
15 16608724 HEXAGON BOLT M10X90 MM
16 17090174 SPRING WASHER Ø10X20 MM
17 8113790 PIPE SOCKET [up to 08-94]
18 8032362 DELIVERY LINE
19 8029421 RETAINER
20 16606624 HEXAGON BOLT M8X80 MM
21 8032259 PIPE
22 8032363 OIL LINE
23 16607424 SCREW M10X16
24 8032349 RETAINER
25 8032220 PIPE SOCKET
26 16509011 NUT M22X1,5X7 MM
