C78ENTM50.11

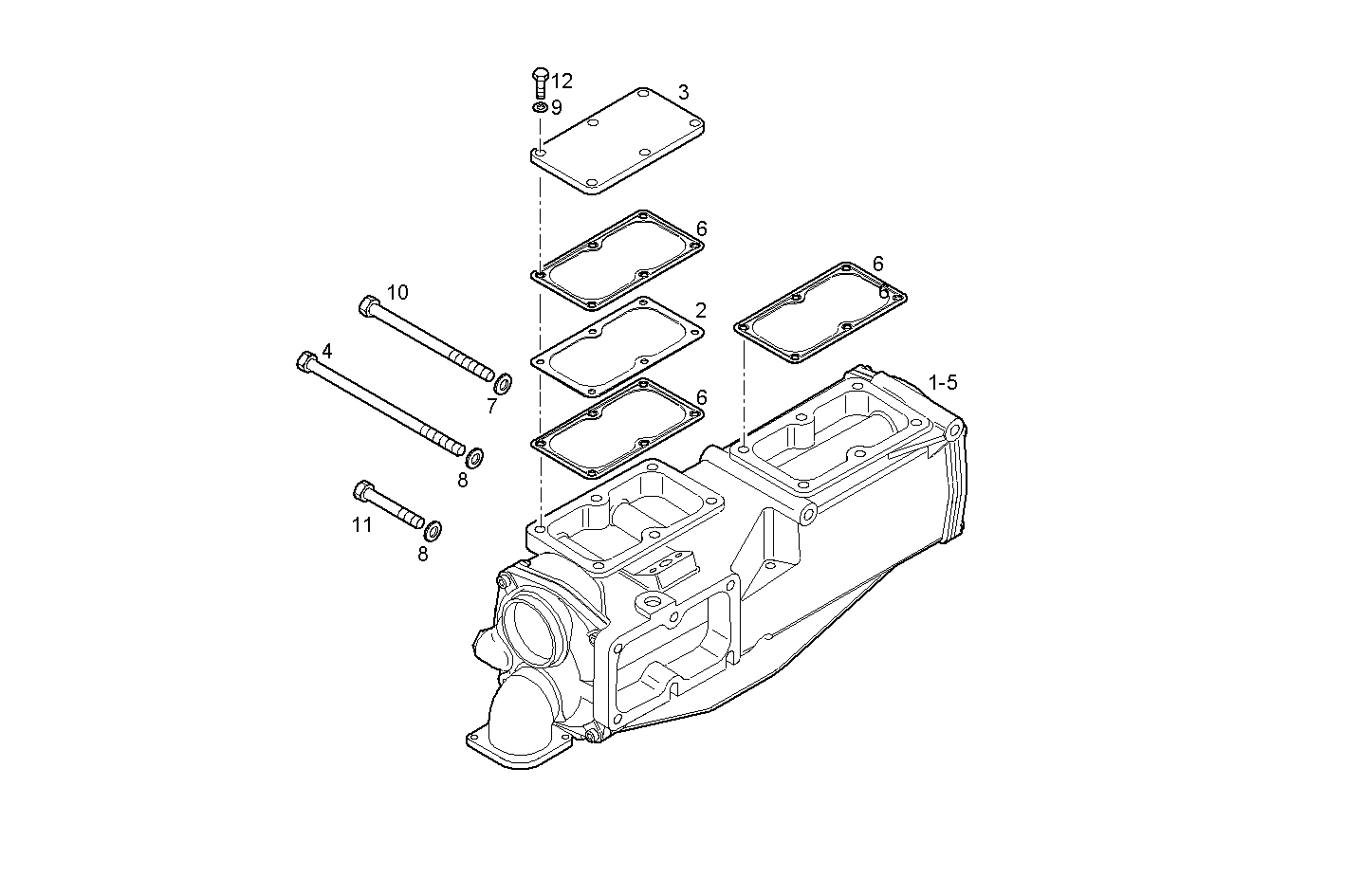

2460.012 AIR - WATER HEAT EXCHANGER
| Item | Part number | Description |
|---|---|---|
| 1 | 8041369 | AIR/WATER HEAT EXCHANGER ASSY |
| 2 | 8037365 | SPACING BAR |
| 3 | 8034337 | COVER |
| 4 | 8030482 | SCREW M10X210 |
| 5 | 8028905 | AIR/WATER HEAT EXCHANGER ASSY |
| 6 | 504026624 | FLAT ENGINE GASKET |
| 7 | 17091074 | WASHER Ø12X24X2,8 MM |
| 8 | 17090174 | SPRING WASHER Ø10X20 MM |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 10 | 16611624 | SCREW M12X160 |
| 11 | 16607825 | HEXAGON BOLT M10X35 MM |
| 12 | 16605524 | HEXAGON BOLT M8X20 MM |
